Remove/Install Folding Roof Cassette - AR77.30-P-1111SRC

MODEL 453.4

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on soft tops		AH77.30-P-0001-01MCO
	Remove/install

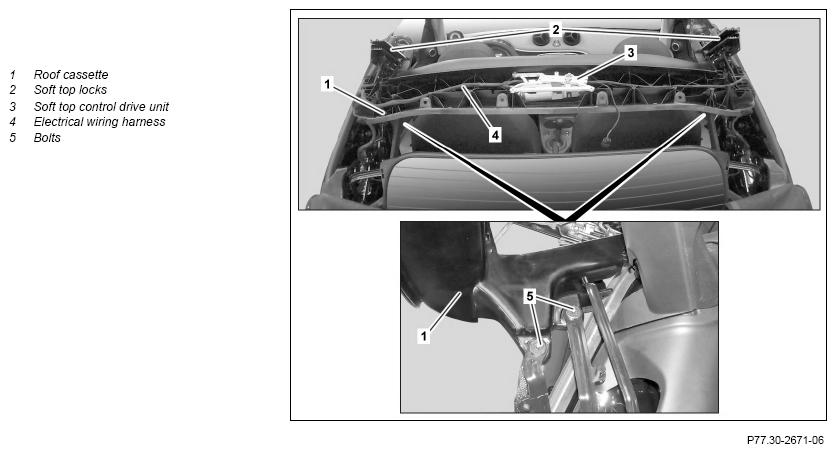

1	Detach soft top locks (2) on roof cassette (1) and pull upwards at rear		AR77.33-P-0001SRC
2	Remove soft top control drive unit (3)		AR77.33-P-1234SRC
3	Guide electrical wiring harness (4) forwards out of roof cassette (1)	: Make sure that electrical wiring harness (4) is routed and secured without chafing or tension.
4	Unscrew bolts (5) and remove roof cassette (1)	Look out for loose square nuts of soft top locks (2) in roof cassette (1). Helper required.
5	Install in the reverse order
