Remove/Install Hinge Of Liftgate - AR72.20-P-2656SRA
MODEL 453.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||

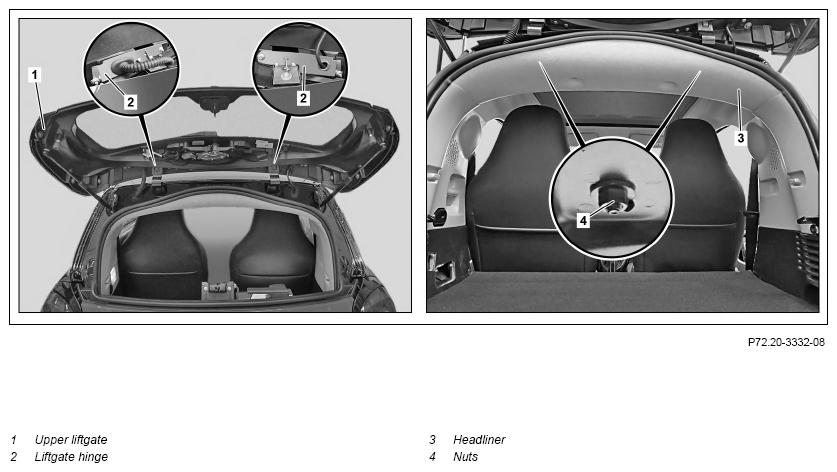

| 1 | Remove upper liftgate (1) | AR72.20-P-1020SRA | |
| 2 | Remove headliner (3) | AR68.30-P-4300SRA | |
| 3 | Unscrew nuts (4) and remove liftgate hinge (2) on left and right | *BA72.20-P-1001-03SR | |
| 4 | Install in the reverse order | ||
| Check | |||
| 5 | Check gap dimensions on upper liftgate (1) all the way around, correct if necessary | AR72.20-P-0002SRA |
LIFTGATE
| Number | Designation | MODEL 453.3 | |
|---|---|---|---|
| BA72.20-P-1001-03SR | Screw/bolt/nut, liftgate hinge to roof frame | Nm | 21 |
