Retrofit BRABUS light alloy wheels - AN40.10-P-0002MCU

MODEL 451.3/4 (except 451.391/491) up to 19.3.12

with CODE (I01) Air conditioning Plus

with CODE (V26) Power steering, EPS (FFO)

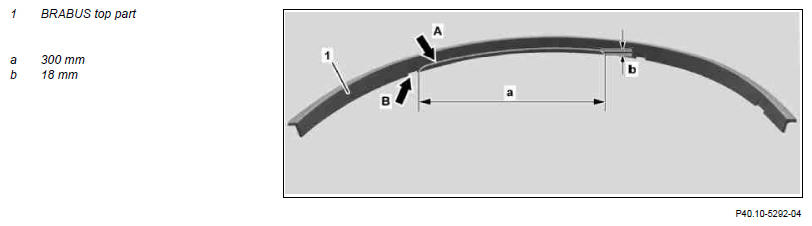

Fig 1: Checking BRABUS Top Part Cutting Edge Dimension

Courtesy of MERCEDES-BENZ USA

Dimensions:

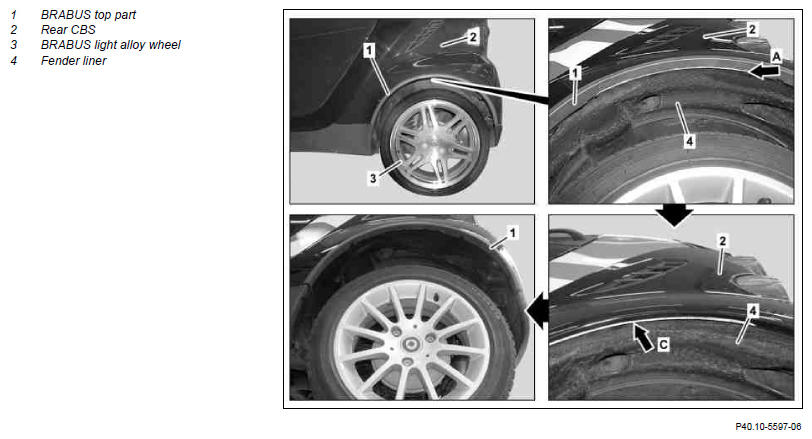

Fig 2: Identifying BRABUS Top Part, Rear CBS, BRABUS Light Alloy Wheel And Fender Liner

Courtesy of MERCEDES-BENZ USA

	Removing
1	Remove wheels		AR40.10-P-1100MCU
	Install
		Retrofitting BRABUS (3) light alloy wheels is only permitted when the BRABUS parts listed in the following have been installed.
2	Retrofit BRABUS muffler		AN49.10-P-1003MCU
3	Retrofit BRABUS rear apron		AN88.20-P-0001MCU
4	Retrofit BRABUS front spoiler		AN88.50-P-0004MCC
5	Install side skirts, Brabus		AN88.80-P-0010MCC
6	Install Brabus sport suspension		AN32.20-P-0002MCC
7	Mount tire on BRABUS rim	The valve, sleeve, sealing ring and nut are available in a repair kit and should always be replaced.	AR40.10-P-1030MCU
8	Install BRABUS light alloy wheels (3)		AR40.10-P-1100MCU
9	Mark the cut edge (arrow A) corresponding to dimensions (a and b) on BRABUS top part (1)	Starting from the first attachment point (arrow B) dimension (a) is measured on the BRABUS top part (1) to the rear. Round off the cut edge (arrow A) slightly in the area of the corners.
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  caused by slipping when inserting blade in the multicutter and by glass splinters when cutting out bonded windows	Always interrupt air supply or power supply before inserting or removing blade. Wear protective gloves and safety glasses.	AS67.00-Z-0001-01A
10	Cut out the cutout along the cut edge (arrow A)	Do not grind down the primer for the BRABUS attachment part (1). Otherwise the BRABUS attachment part (1) will have to be replaced. Deburr cut edge (arrow A) with abrasive paper. Window glazing device, FSC 1.6
11	Position the BRABUS top part (1) on the CBS rear end (2) and align
12	Transfer the cutout made in the BRABUS attachment part (1) to the CBS rear end (2)
13	Remove BRABUS top part (1) from the CBS rear end (2)
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  caused by slipping when inserting blade in the multicutter and by glass splinters when cutting out bonded windows	Always interrupt air supply or power supply before inserting or removing blade. Wear protective gloves and safety glasses.	AS67.00-Z-0001-01A
14	Cut out the cutout along the marking (arrow C) on the CBS rear end (2)	Do not damage the fender liner (4). Otherwise it must be replaced. Window glazing device, FSC 1.6
15	Install BRABUS top parts (1) on CBS rear end (2)		AN88.10-P-0006MCC
16	Attach information label on BRABUS tire pressure to the right B-pillar
