Install Brabus sport suspension - AN32.20-P-0002MCC

MODEL 451.3/4 (except 451.39/49)

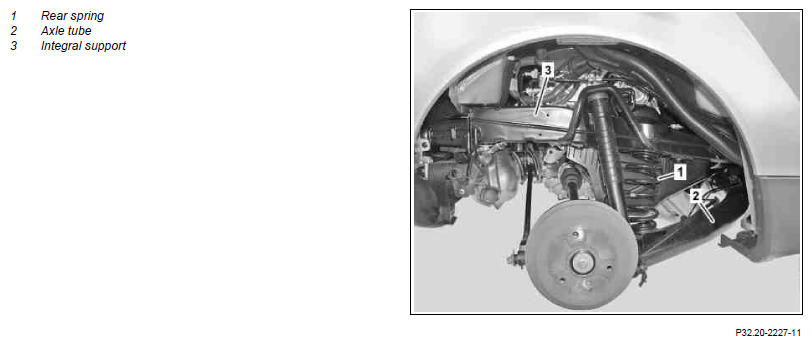

Fig 1: Identifying Rear Spring, Axle Tube And Integral Support

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

12.3.12

Document retrofitted equipment via vehicle documentation (VeDoc) added

Operation step 9

	Removing
1	Remove left and right front spring	The dampers and front springs are no longer required for the installation. * not for USA	AR32.20-P-0200MCC
		* for USA only	AR32.20-P-0200MCU
2	Remove left and right damper at the rear	The dampers are no longer required for the installation. * not for USA	AR32.25-P-0110MCC
		* for USA only	AR32.25-P-0110MCU
3	Lower the major assembly lifting platform or telescopic lifter further until the rear spring (1) can be removed from its supports on the axle tube (2) and on the frame-type integral support (3)
4	Remove rear spring (1)	The dampers (1) are no longer required for the installation.
	Install
5	Insert BRABUS rear spring (1) and lift the axle tube (2) using the major assembly lifting platform or telescopic lifter until the rear dampers can be installed	Pay attention to the installation position of the rear spring (1). Clean the top and bottom rubber mount of rear spring (1) and replace if necessary.
6	Install left and right BRABUS dampers at the rear	* not for USA	AR32.25-P-0110MCC
		* for USA only	AR32.25-P-0110MCU
7	Assemble left and right BRABUS front spring with the BRABUS damper and install in the vehicle	* not for USA	AR32.20-P-0200MCC
		* for USA only	AR32.20-P-0200MCU
8	Place certification in the vehicle	not for USA
	Suspension modification certificate	Certification is included in the package contents. * For Germany only	OF32.20-P-1000-01DC
9	Document retrofitted equipment via vehicle documentation (VeDoc)	Attach note "BRABUS sports suspension retrofitted according to AN32.20-P-0002MCC " .

PARTS ORDERING NOTES

Part no.	Designation	Quantity
DG 32	BRABUS front spring	2
DG 32	BRABUS front damper	2
DG 32	BRABUS rear spring	2
DG 32	BRABUS rear damper	2
