Lower front axle - AR33.10-P-0101MEX

MODEL 451.390/392/490/492

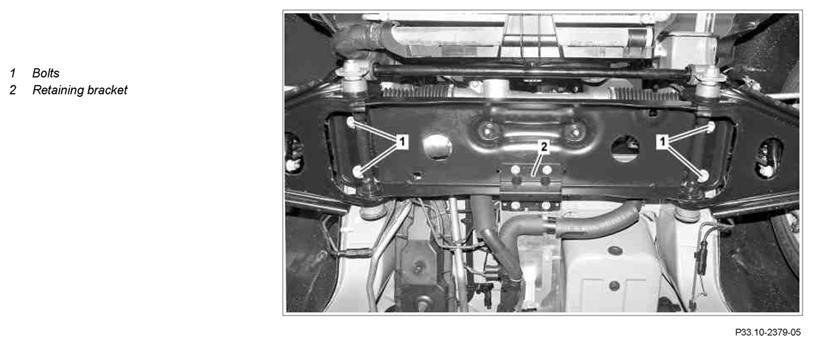

Fig 1: Identifying Bolts And Retaining Bracket

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove transmitter key and mains plug
2	Raise vehicle using the vehicle lift and secure in place	When work is continued on the vehicle such as, e.g. when supporting major assemblies using a jack (e.g. telescopic lifter) which exert an uneven load distribution, and when removing the following components: front axle, front axle carrier, axle tube, rear axle integral carrier, engine or transmission.	AR00.60-P-0100MCC
3	Remove front underfloor paneling
4	Unscrew retaining bracket (2)	Bolt, support, front axle carrier to front axle carrier	*BA33.10-P-1002-01D
5	Support front axle using telescopic lifter and removal fixture 000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
6	Remove bolts (1)	Bolt, front-axle carrier to body	*BA33.10-P-1001-01D
7	Carefully lower front axle as far as possible
8	Install in the reverse order
9	Perform wheel alignment check	Model 451.390/392/490/492 without recording the vehicle level	AR40.20-P-0200MCC
		Model 451.390/392/490/492 with recording the vehicle level Depending on the workshop equipment select between the measurement variant with recording the vehicle level or without recording the vehicle level.	AR40.20-P-0200MCE

FRONT AXLE CARRIER

Number	Designation		Model 451.390/392/490/49 2
BA33.10-P-1001-01D	Bolt, front-axle carrier to body	Nm	85

FRONT AXLE CARRIER

Number	Designation		Model 451.390/392/490/49 2
BA33.10-P-1002-01D	Bolt, support, front axle carrier to front axle carrier	Nm	20
