Remove/install flexible shaft for air distribution - AR83.10-P-1401MCC
MODEL 451.3/4

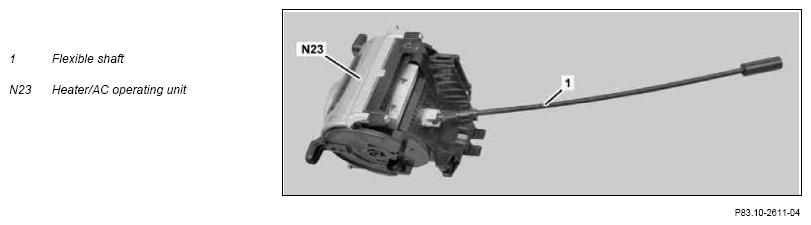

Shown on heater/AC operating unit with code (I01) Air conditioning Plus
| Remove/install | |||
| 1 | Remove heater/AC operating unit (N23) | Vehicles up to 30.8.10 with code (I01) Air conditioning Plus and without code (P02) car2go Vehicles with code (I01) Air conditioning Plus, with code (P02) car2go and with instrument panel up to production date 30.8.10 |
AR83.25-P-1124MCC |
| Vehicles as of 31.8.10 with code (I01) Air conditioning Plus and without code (P02) car2go | AR83.25-P-1124MCF | ||
| Without code (I01) A/C Plus up to 30.8.10 | AR83.20-P-1850MCC | ||
| Without code (I01) A/C Plus as of 31.8.10 | AR83.20-P-1850MCF | ||
| 2 | Flexible shaft (1) on operating unit Unclip heater/AC operating unit (N23) and remove | ||
| 3 | Install in the reverse order |
