Remove and install air conditioning control and operating unit - AR83.25-P-1124MCC
MODEL 451.3/4 up to 30.8.10
with CODE (I01) Air conditioning Plus
except CODE (P02) car2go
MODEL 451.3
with CODE (I01) Air conditioning Plus with CODE (P02) car2go
with instrument panel up to production date 30.8.10
| Remove/install | |||
| 1.1 | Remove center stowage compartment on center part of dashboard | On vehicles without code (C50) smart radio 10 or without code (C57) smart radio 9 or without code (527) High-Line radio or without code (P02) car2go. | AR68.10-P-1620MCC |
| 1.2 | Remove radio | On vehicles with code (C50) smart radio 10 or with code (C57) smart radio 9 or with code (527) High-Line radio or with code (P02) car2go. * not for USA |
AR82.60-P-7502MCC |
| * for USA only | AR82.60-P-7502MCU | ||

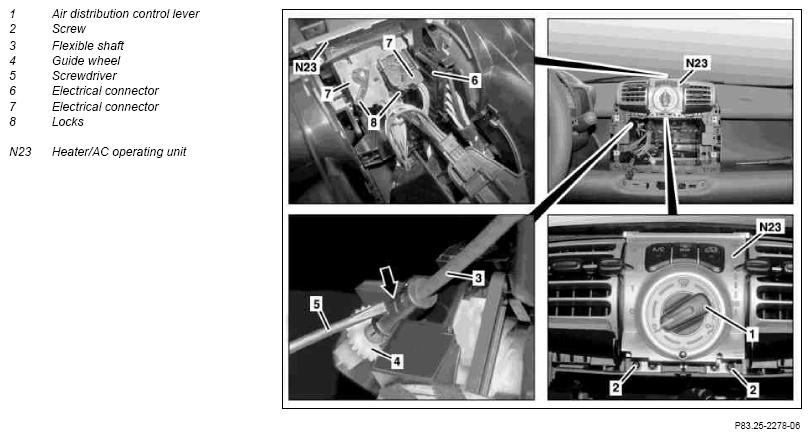

| 2 | Turn air distribution control lever (1) to footwell ventilation position | ||
| 3 | Set temperature control lever and fan stage control lever to center position | ||
| 4 | Remove screws (2) on heater/air conditioning operating unit (N23) | ||
| 5 | Use a suitable screwdriver (5) to release bracket (arrow) of flexible shaft (3) and detach flexible shaft (3) from guide wheel (4) | ||
| 6 | Detach electrical connector (6) from heater/air conditioning operating unit (N23) | ||
| 7 | Release locks (8) and detach electrical connectors (7) | ||
| 8 | Remove heater/air conditioning operating unit (N23) | ||
| 9 | Remove flexible shaft (3) | When the operating unit is replaced Heater/AC (N23). | AR83.10-P-1401MCC |
| 10 | Install in the reverse order | ||
| 11 | Perform function test on heater/air conditioning operating unit (N23) |
