Remove/install shutoff valve for oil spray nozzles - AR18.40-P-2012CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 651 in MODEL 166, 172, 204, 207, 212, 218, 221
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove engine cover | MODEL 166 | |
| 2 | Detach cover for upper belt drive to the front and remove upwards | Model 166, 172, 204, 207, 212 (except 212.098/298), 218, 221 | |
| 3.1 | Remove bottom section of soundproofing | Model 172, 204 (except 204.9), 207, 212, 218 | |
| MODEL 172 | AR94.30-P-5300W | ||
| MODEL 204 (except 204.9), 207, 212, 218 | AR94.30-P-5300EW | ||
| 3.2 | Remove lower engine compartment paneling | MODEL 204.9, 221 | |
| MODEL 204.9 | AR61.20-P-1105CY | ||
| MODEL 221 | AR61.20-P-1105SX | ||
| 4.1 | Loosen refrigerant compressor and put to one side with lines connected | Model 166, 172, 204, 207, 212 (except 212.098/298), 218, 221) | |
| MODEL 166 | AR83.55-P-5300GQ | ||
| MODEL 172 | AR83.55-P-5300CDA | ||
| Model 204, 207, 212 (except 212.098/298), 218, 221 |
AR83.55-P-5300CD | ||
| 4.2 | Remove alternator | MODEL 212.098/298 | |
| MODEL 212.098/298 | AR15.40-P-5032EH | ||
| 5 | Disconnect electrical connector (1) on oil spray nozzles shutoff valve (Y131) | ||
| 6 | Remove oil spray nozzles shutoff valve (Y131) and take off | ||
| *BA18.00-P-1002-01I | |||

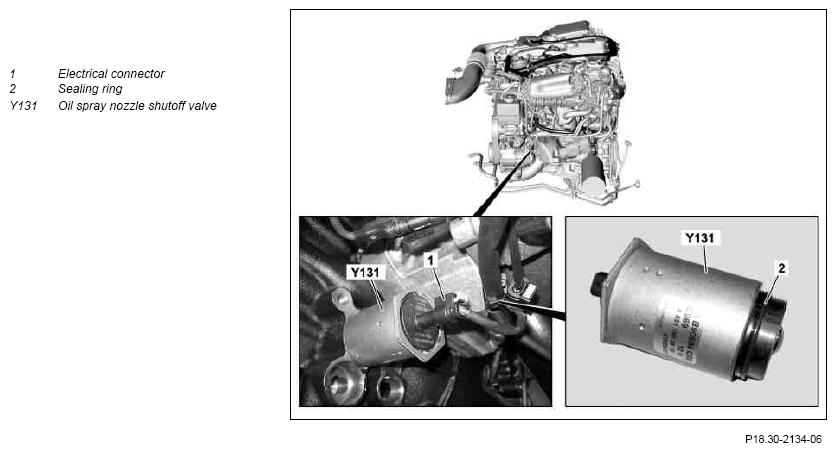

| Fig 2 | |||
| 7 | Install in the reverse order | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Check for leaks with engine running | ||
| 9 | Check engine oil level, correct if necessary | The engine oil level must lie between "Min" and "Max". Engine damage can occur otherwise. |
OIL SPRAY NOZZLE
| Number | Designation | ENGINE 651 | |
|---|---|---|---|
| BA18.00-P-1002-01I | Mount, oil control valve for splash-oil cooling | Nm | 20 |
