Remove/install alternator - AR15.40-P-5032EH

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 651.9 in MODEL 212.098/298

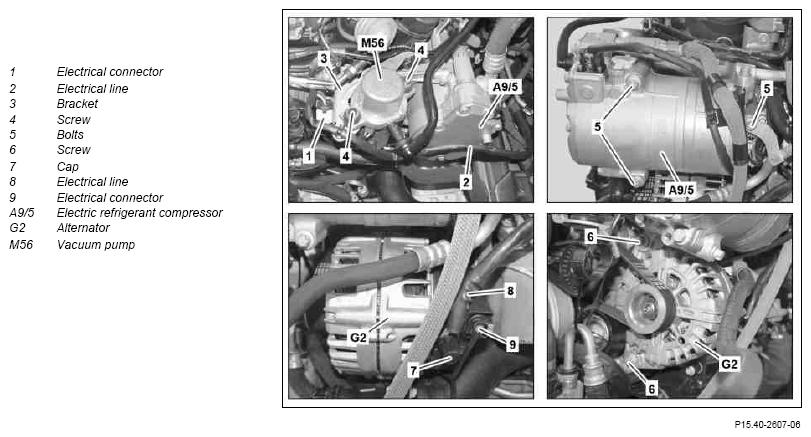

Fig 1: Alternator Remove/Install Components
G10240935Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
1 Disconnect battery ground line   AR54.10-P-0003EW
2 Remove fan unit   AR20.40-P-5050EW
3 Disconnect electrical connection (1) and remove electrical line (2) from bracket (3) and the electrical A/C compressor (A9/5) INSTALLATION IMPORTANT Replace cable tie.
4 Remove screw/bolts (4), take vacuum pump (M56) out of the bracket (3) and place to one side
5 Slacken poly-V belt   AR13.22-P-3902-01T
REFER TO SHOP-MADE TOOLS Pin for locking poly-V belt tensioning device WF58.50-P-1325-02A
INSTALLATION IMPORTANT Tighten poly-V-belt.

Tension poly-V belt
AR13.22-P-3902-04T
6 Remove screw/bolts (5) and place the electrical A/C compressor (A9/5) to one side until the screw/bolts (6) are accessible NOTES
Handle the electrical A/C compressor (A9/5) carefully.
The attached refrigerant line can get damaged otherwise.

TORQUE SPECIFICATION Bolt, A/C compressor to major assembly carrier *BA83.55-P-1001-01W
7 Remove screw/bolts (6) and carefully lay the alternator (G2) to the front until the electrical connections on the rear side of the alternator are accessible
8 Remove cap (7), unscrew nut below and remove electrical line (8) from alternator (G2) TORQUE SPECIFICATION Nut, circuit B+ to alternator *BA15.40-P-1001-01Q
9 Disconnect Electrical connection (9)
10 Pull alternator (G2) forward and upward to remove NOTES
Handle the electrical A/C compressor (A9/5) carefully.
The attached refrigerant line can get damaged otherwise.
IMPORTANT To remove the alternator (G2) an assistant is needed to lift the electrical A/C compressor (A9/5) and to hold it.

11 Install in the reverse order
ALTERNATOR

Number Designation Engine 651
BA15.40-P-1001-01Q Nut, circuit B+ to alternator Nm 18
REFRIGERANT COMPRESSOR

Number Designation Engine 651 in model 117, 156, 166, 172, 176, 205, 212, 218, 221, 222, 246, 253
BA83.55-P-1001-01W Bolt, A/C compressor to major assembly carrier Nm 20
