Remove/install refrigerant compressor - AR83.55-P-5300CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 651 in MODEL 204, 207, 212 (except 212.098/298), 218, 221

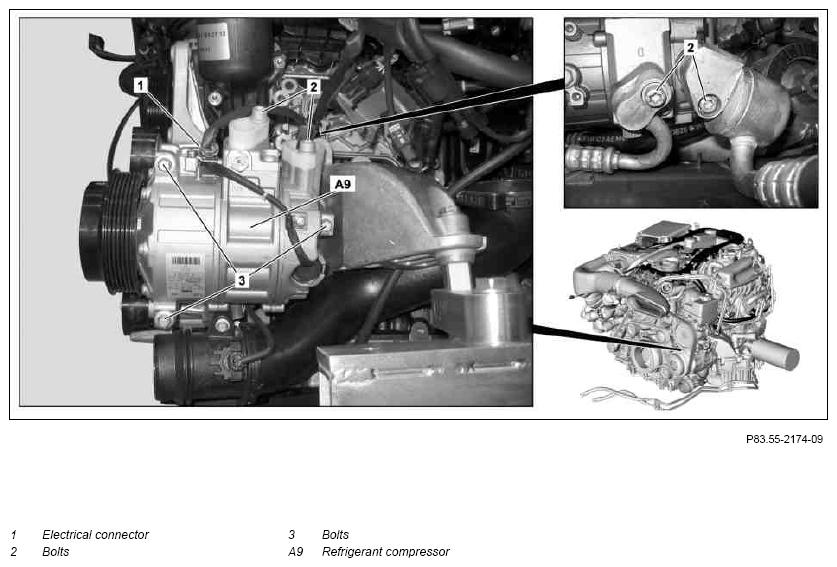

Shown on model 204
| Remove/install | |||
| Risk of explosion by welding or soldering work on the closed air conditioning. Danger of poisoning by inhalation superheated refrigerant vapor. Risk of injury from skin and eye contact with liquid refrigerant. | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well-ventilated areas. Carry out repair work on the air conditioning system circuit only after the system has been drained. | AS83.00-Z-0001-01A | |
| Danger to life from slipping or tipping of the vehicle from the hydraulic ramp. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Drain air conditioning system | ENGINE 651 in MODEL 204, 207, 212 (except 212.098/298), 218 | AR83.30-P-1760CW |
| ENGINE 651 in MODEL 221 | AR83.30-P-1760SX | ||
| 2 | Remove cylinder head cover trim | ||
| 3 | Remove intake hose upstream of air filter housing | ||
| 4 | Remove front end struts to integral carrier | ENGINE 651 in MODEL 207.4 | |
| *BA33.10-P-1004-01M | |||
| 5 | Remove poly-V belt | ENGINE 651 in MODEL 204, 212 (except 212.098/298) | AR13.22-P-1202CD |
| ENGINE 651 in MODEL 207, 218, 221 | AR13.20-P-0001OMA | ||
| 6 | Disconnect electrical connector (1) at A/C compressor (A9) | ||
| 7 | Remove bolts (2) | ENGINE 651 in MODEL 204, 207 with Denso refrigerant compressor ENGINE 651 in MODEL 204, 207with Valeo refrigerant compressor | |
ENGINE 651 in MODEL 204, 207 with Denso refrigerant compressor ENGINE 651 in MODEL 204, 207 with Valeo refrigerant compressor |
*BA83.55-P-1003-01W | ||
| 8 | Place intake line and pressure line to one side | Close off openings for lines. So that no dirt and no moisture can enter. |
|
| 9 | Remove screws/bolts (3) from A/C compressor (A9) | ENGINE 651 in MODEL 204, 207 with Denso refrigerant compressor ENGINE 651 in MODEL 204, 207 with Valeo refrigerant compressor | |
ENGINE 651 in MODEL 204, 207 with Denso refrigerant compressor ENGINE 651 in MODEL 204, 207 with Valeo refrigerant compressor |
*BA83.55-P-1001-01W | ||
ENGINE 651 in MODEL 204, 207 with Denso refrigerant compressor ENGINE 651 in MODEL 204, 207 with Valeo refrigerant compressor |
*BA83.55-P-1002-01W | ||
| 10 | Remove A/C compressor (A9) | ||
| 11 | Install in the reverse order |
REFRIGERANT COMPRESSOR
| Number | Designation | ENGINE 651 in MODEL 117, 156, 166, 172, 176, 205, 212, 218, 221, 222, 246 | ENGINE 651 in MODEL 204, 207 with Denso refrigerant compressor | |
|---|---|---|---|---|
| BA83.55-P-1003-01W | Refrigerant line to refrigerant compressor | Nm | 20 | 20 |
REFRIGERANT COMPRESSOR
| Number | Designation | ENGINE 651 in MODEL 204, 207 with Valeo refrigerant compressor | |
|---|---|---|---|
| BA83.55-P-1003-01W | Refrigerant line to refrigerant compressor | Nm | |
REFRIGERANT COMPRESSOR
| Number | Designation | ENGINE 651 in MODEL 117, 156, 166, 172, 176, 205, 212, 218, 221, 222, 246 | ENGINE 651 in MODEL 204, 207 with Denso refrigerant compressor | |
|---|---|---|---|---|
| BA83.55-P-1001-01W | Bolt, refrigerant compressor to major assembly carrier | Nm | 20 | 20 |
REFRIGERANT COMPRESSOR
| Number | Designation | ENGINE 651 in MODEL 204, 207 with Valeo refrigerant compressor | |
|---|---|---|---|
| BA83.55-P-1001-01W | Bolt, refrigerant compressor to major assembly carrier | Nm | |
FRONT AXLE CARRIER
| Number | Designation | MODEL 207 | ||
|---|---|---|---|---|
| BA33.10-P-1004-01M | Mounting brace to front end/front axle carrier | M8 | Nm | 23 |
| M10 | Nm | 50 | ||
REFRIGERANT COMPRESSOR
| Number | Designation | ENGINE 651 in MODEL 117, 156, 166, 172, 176, 205, 212, 218, 221, 222, 246 | ENGINE 651 in MODEL 204, 207 with Denso refrigerant compressor | |
|---|---|---|---|---|
| BA83.55-P-1002-01W | Bolt, refrigerant compressor to engine support | Nm | 20 | 20 |
REFRIGERANT COMPRESSOR
| Number | Designation | ENGINE 651 in MODEL 204, 207 with Valeo refrigerant compressor | |
|---|---|---|---|
| BA83.55-P-1002-01W | Bolt, refrigerant compressor to engine support | Nm | |
