Remove/install oil spray nozzles (pistons) - AR18.00-P-4000CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 651 in MODELS 166, 172, 204, 207, 212, 218, 221

Shown on engine 651.911

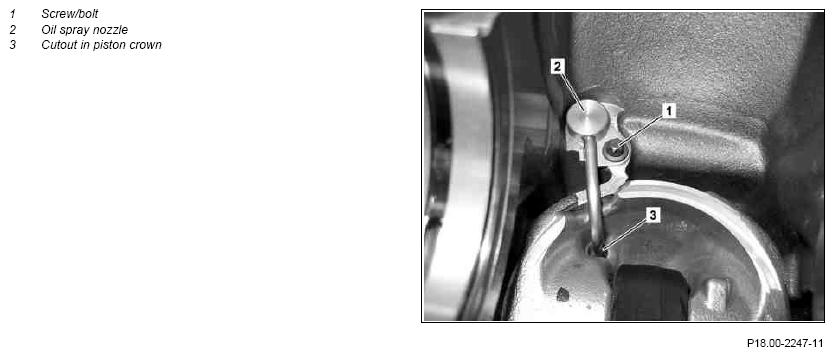

Fig 1: Oil Spray Nozzles Remove/Install Components - Shown On Engine 651.911

Courtesy of MERCEDES-BENZ USA

Shown on engine 651.912

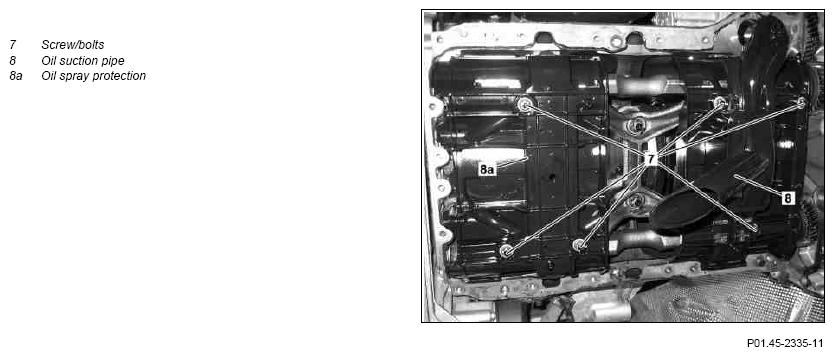

Fig 2: Oil Spray Nozzles Remove/Install Components - Shown On Engine 651.912 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

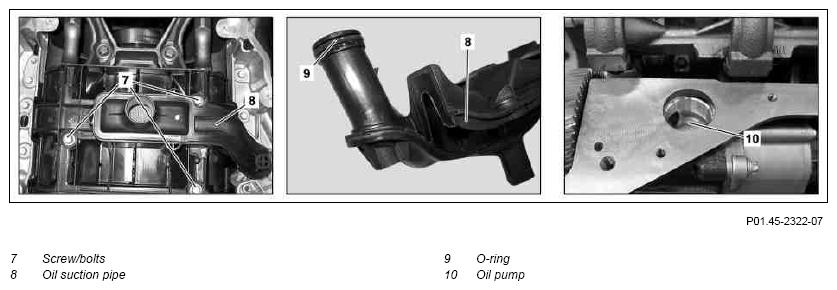

Fig 3: Oil Spray Nozzles Remove/Install Components - Shown On Engine 651.912 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Remove oil pan bottom section	Model 172, 204 (except 204.9), 212 except 4MATIC Model 207, 218	AR01.45-P-7555CD
1.1	Remove oil pan bottom section	Model 221	AR01.45-P-7555SYZ
1.2	Remove oil pan	Model 166.0	AR01.45-P-7500GQA
		Model 204, 212 only 4MATIC	AR01.45-P-7500OMD
		Model 221	AR01.45-P-7500SXA
2	Remove oil suction pipe (8) Screw/bolts (7) and the oil spray protection (8a)		*BA18.10-P-1002-01O
3	Detach oil suction pipe (8) and Oil spray protection (8a) downwards	Replace O-ring (9) for oil suction pipe (8). First insert oil suction pipe (8) fully into oil pan (10) and then tighten.
4	Remove oil spray nozzles (2)	To do this loosen bolt (1), remove oil spray nozzle (2) and cover oil feed bores. The oil spray nozzle (2) must immerse in the cutout in the piston crown (3) on the piston crown.
4	Remove oil spray nozzles (2)		*BA18.00-P-1001-01I
5	Inspect/clean oil ducts	Blow through oil galleries in direction of flow oil with compressed air.
6	Install in the reverse order
7	Check engine oil level	The engine oil level must lie between "Min" and "Max". Engine damage can occur otherwise.
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
8	Check engine for leaks	With engine running.	AS00.00-Z-0005-01A

OIL SPRAY NOZZLE

Number	Designation		Engine 651
BA18.00-P-1001-01I	Screw/bolt, oil-spray nozzle at crankcase	Nm	5

OIL PUMP

Number	Designation				Engine 651
BA18.10-P-1002-01O	Screw/bolt, oil suction pipe to bearing housing	M6	Stage 1	Nm	6
		M6	Stage 2	∠°	90
		M8	-	Nm	34
