Remove/install radar sensor - AR30.30-P-1210EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 207, 212 with CODE 233 (DISTRONIC PLUS)

MODEL 207, 212 with CODE 258 (COLLISION PREVENTION ASSIST)

Shown for code (233) DISTRONIC PLUS

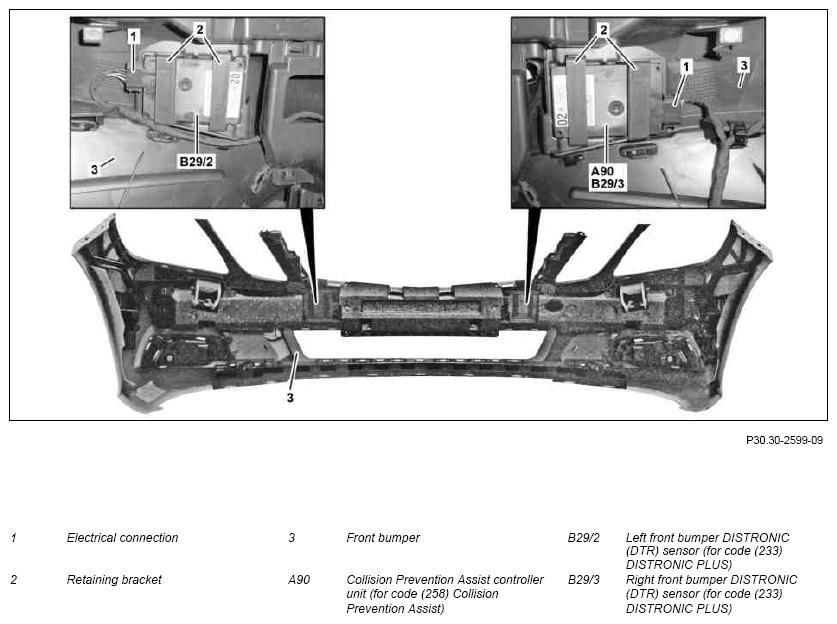

Fig 1: Radar Sensor Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove front bumper (3)	MODEL 212 as of model year 2014 with CODE 233 (DISTRONIC PLUS) MODEL 212 as of model year 2014 with CODE 258 (COLLISION PREVENTION ASSIST)	AR88.20-P-2000EWM
1	Remove front bumper (3)	MODEL 207 with CODE 233 (DISTRONIC PLUS) MODEL 207 with CODE 258 (COLLISION PREVENTION ASSIST) MODEL 212 up to model year 2014 with CODE 233 (DISTRONIC PLUS)	AR88.20-P-2000EW
2	Remove impact absorber	MODEL 207, 212 as of model year 2014 with CODE 233 (DISTRONIC PLUS) MODEL 207, 212 as of model year 2014 with CODE 258 (COLLISION PREVENTION ASSIST)
	General information on the impact absorber		AH88.20-P-1000-01A
3	Unclip mounting frame bow (2) from the front bumper (3) using a suitable tool
4	Release and disconnect Electrical connection (1)
5	Remove DISTRONIC (DTR) sensor on the bumper at the front left (B29/2) or DISTRONIC (DTR) sensor on the bumper at the front right (B29/3) or COLLISION PREVENTION ASSIST controller unit (A90)	Note installation position of the DISTRONIC (DTR) sensor on the bumper at the front left (B29/2) or the DISTRONIC (DTR) sensor on the bumper at the front right (B29/3) or COLLISION PREVENTION ASSIST controller unit (A90).
6	Install in the reverse order
7	Perform commissioning using the diagnostic system	Only when removing DISTRONIC (DTR) sensor on the bumper at the front left (B29/2) or DISTRONIC (DTR) sensor on the bumper at the front right (B29/3) or COLLISION PREVENTION ASSIST controller unit (A90)
	Perform commissioning using the diagnostic system		AD00.00-P-2000-04A
8	Read out fault memory using the diagnostic system and delete
			AD00.00-P-2000-04A
