Remove/install coolant pump - AR20.10-P-1271SXI

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 642 in MODEL 207, 212, 221, 218

Shown on engine 642.850

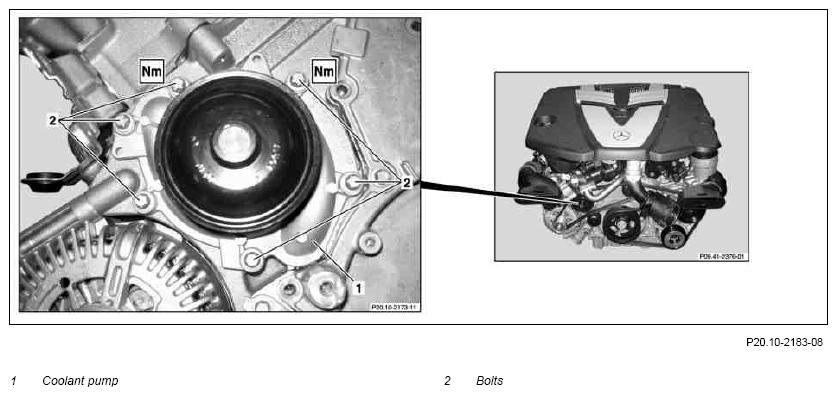

Fig 1: Coolant Pump Remove/Install Components - Shown On Model 642.850

Courtesy of MERCEDES-BENZ USA

Shown on engine 642.852

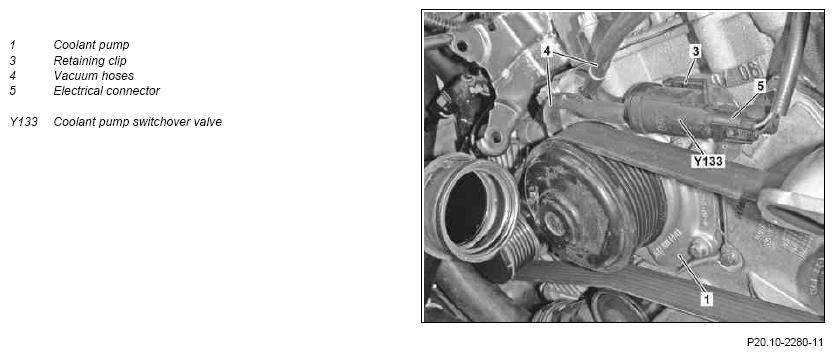

Fig 2: Coolant Pump Remove/Install Components - Shown On Model 642.852

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury to skin and eyes caused by scalding from contact with hot coolant spray. Risk of poisoning caused by swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
	Notes on coolant		AH20.00-N-2080-01A
1	Remove engine trim panel	Ensure correct seating of the engine cover. Model 207, 212, 218
1	Remove engine trim panel	Model 221	AR01.10-P-2405SXI
2	Remove impact plate if necessary	The impact plate is installed in front of the belt drive.
3	Remove mixing chamber	Model 207, 212, 218	AR09.20-P-1320OGE
3	Remove mixing chamber	Model 221	AR09.20-P-1320SXI
4	Disconnect electrical connector (5) on the coolant pump switchover valve (Y133)	For vehicles with a switchable coolant pump
5	Detach vacuum hoses (4) For vehicles with a switchable coolant pump
6	Unclip coolant pump switchover valve (Y133) on mounting frame bow (3)	For vehicles with a switchable coolant pump
7	Remove coolant pump switchover valve (Y133) upwards	For vehicles with a switchable coolant pump
8	Remove poly-V belt	Model 207, 212, 218	AR13.20-P-0001OGE
8	Remove poly-V belt	Model 221	AR13.22-P-1202SXI
9	Drain coolant	Model 207	AR20.00-P-1142CW
		Model 212, 218	AR20.00-P-1142OGE
		Model 221 Catch coolant in a suitable vessel.	AR20.00-P-1142SXI
10	Unscrew bolts (2) of coolant pump (1)	If aluminum bolts have been installed at the works, replace these with steel bolts.
10	Unscrew bolts (2) of coolant pump (1)		*BA20.10-P-1001-01S
11	Take out coolant pump (1)	Install new sealing ring.
12	Clean sealing surfaces
13	Install in the reverse order
	Checking
14	Inspect cooling system for leaks	Model 207	AR20.00-P-1010CW
		Model 212, 218	AR20.00-P-1010OMA
		Model 221	AR20.00-P-1010SX

COOLANT PUMP, COOLANT THERMOSTAT

Number	Designation		ENGINE 642
BA20.10-P-1001-01S	Bolt, coolant pump housing to crankcase	Nm	10
