Replacing retaining clip - AR32.22-P-1500-02EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 205 with CODE 489 (AIRMATIC)
MODEL 212.0/1, 218 with CODE 488 (Steel/air suspension)
MODEL 212.0/1, 218 with CODE 489 (AIRMATIC)
MODEL 212.2
MODEL 253 with CODE 489 (AIR BODY CONTROL)

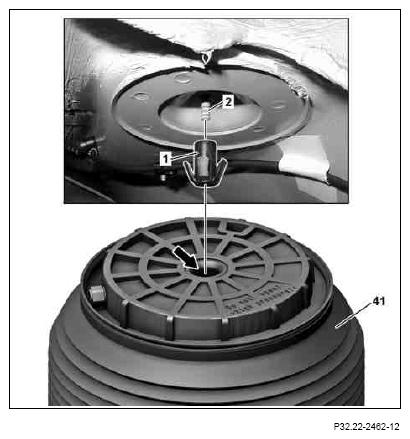

- Remove fragments of the retaining clip (1) from the centering hole (arrow) in the air spring (41).
- Remove fragments of the retaining clip (1) from the pin (2).
- Tap a new retaining clip (1) far enough onto the pin (2) using a plastic mallet until the retaining clip (1) lies flat on the frame floor.
