Remove/install refrigerant pressure sensor - AR83.30-P-5430CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 218
Shown on model 204.0
| Remove/install | |||
| 1 | Drain air conditioning system, then disconnect air conditioning service unit | AR83.30-P-1760CW | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 2 | Lift vehicle on vehicle lift | ||
| 3 | Remove front engine compartment paneling | MODEL 204.9 | AR61.20-P-1105CY |
| MODEL 204.0/2 with ENGINE 156, 271, 272, 274, 276 MODEL 204.3 with ENGINE 156, 271, 274, 276 MODEL 207 with ENGINE 271, 272, 273, 274, 276, 278 MODEL 212 with ENGINE 156, 157, 271, 272, 273, 274, 276, 278 MODEL 218 with ENGINE 157, 276, 278 |
AR61.20-P-1105EW | ||
| 4 | Remove front section from noise encapsulation | MODEL 204.0 with ENGINE 642, 646, 651 MODEL 204.2 with ENGINE 642, 646, 651 MODEL 204.3 with ENGINE 651 MODEL 207 with ENGINE 642, 651 MODEL 212 with ENGINE 642, 651 MODEL 218 with ENGINE 642, 651 |
AR94.30-P-5300EW |

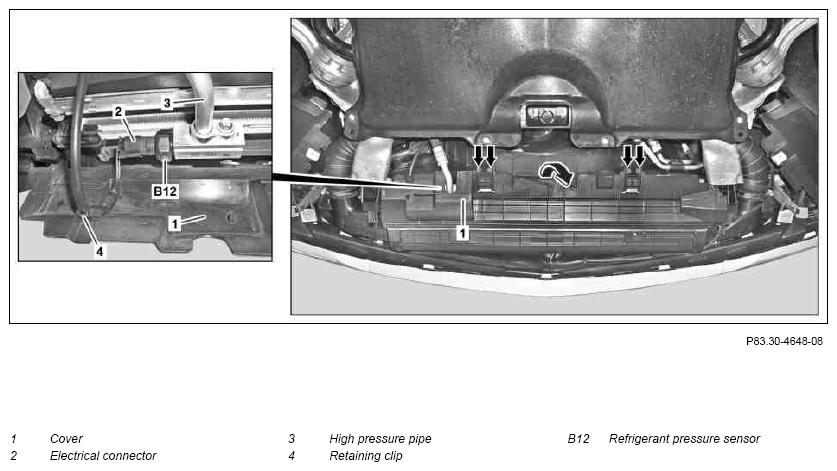

| 5 | Unclip cover (1) (arrows) and swing downwards | ||
| 6 | Unclip retaining clip (4) from cover (1) | ||
| 7 | Disconnect electrical connector (2) from refrigerant pressure sensor (B12) | ||
| 8 | Counterhold high pressure line (3) and remove refrigerant pressure sensor (B12) | Carefully tighten refrigerant pressure sensor (B12). The condenser or the refrigerant pressure sensor (B12) could become damaged. |
|
| Fig 2 | |||
| 9 | Seal off opening of high-pressure line (3) | ||
| 10 | Install in the reverse order |
