Remove/install expansion valve - AR83.30-P-5520CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 218

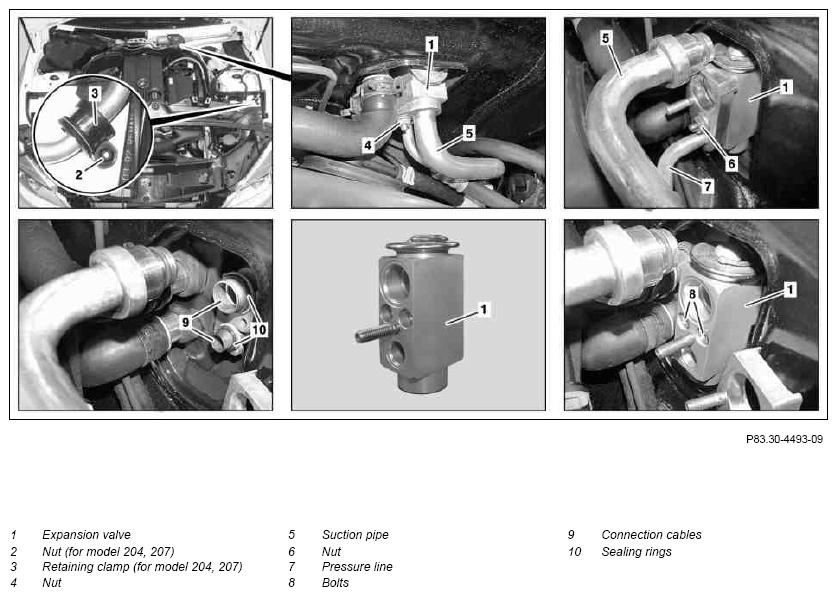

Shown on model 204.0 up to 28.2.2011

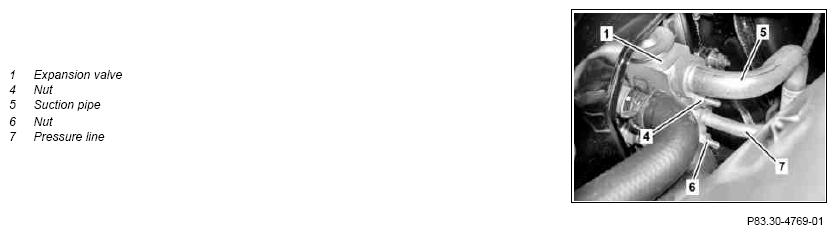

Shown on model 218
| Remove/install | |||
| 1 | Drain air conditioning system | Drain, evacuate and recharge air conditioning, check for proper operation and check for leaks |
AR83.30-P-1760CW |
| 2 | Remove wiper system | Remove/install wiper system | AR82.30-P-6400CW |
| 3 | Unscrew nut (2) and detach retaining clamp (3) | MODEL 204, 207 | |
| 4 | Unscrew nut (4) | Do not tighten the nut (4) too tight. Otherwise the expansion valve (1) or the suction line (5) may be damaged. |
|
| 5 | Pull suction line (5) out of expansion valve (1) and close off | ||
| 6 | Unscrew nut (6) | Do not tighten the nut (6) too tight. Otherwise the expansion valve (1) or the pressure line (7) may be damaged. |
|
| 7 | Pull pressure line (7) out of expansion valve (1) and close off | ||
| 8 | Remove screws/bolts (8), remove expansion valve (1) and close off connection lines (9) | Alternately screw in screws/bolts (8). To avoid tilting of the expansion valve (1). |
|
| 9 | Install in the reverse order |
