Remove/install actuator motor for left defroster flap - AR83.10-P-2004CWA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0/2/9, 207, 212, 218 with CODE 581 (Comfort automatic air conditioning)

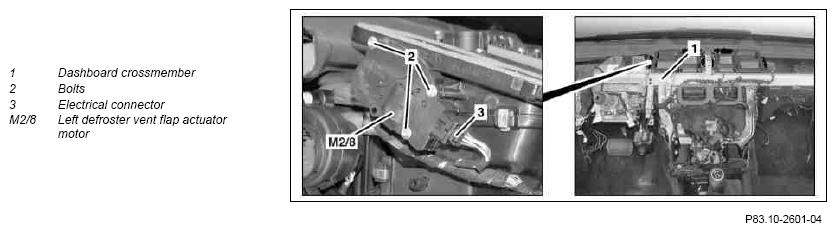

Shown on model 204.0
| Remove/install | |||
| 1 | Remove dashboard | MODEL 204.0/2 with CODE 581 (Comfort automatic air conditioning) | AR68.10-P-1000CW |
| MODEL 204.9 with CODE 581 (Comfort automatic air conditioning) | AR68.10-P-1000CY | ||
| MODEL 207, 212 with CODE 581 (Comfort automatic air conditioning) | AR68.10-P-1000EW | ||
| MODEL 218 with CODE 581 (Comfort automatic air conditioning) | AR68.10-P-1000EL | ||
| 2 | Remove instrument panel crossmember (1) far enough to provide access to left defroster flap actuator motor (M2/8) so that it can be removed | Model 218 | |
| MODEL 204.0/2, 207, 212 with CODE 581 (Comfort automatic air conditioning) | AR68.10-P-1120CW | ||
| 3 | Remove bolts (2) | ||
| 4 | Disconnect electrical connector (3) and remove left defroster flap actuator motor (M2/8) | ||
| 5 | Install in the reverse order | ||
| 6 | Teach in and normalize left defroster flap actuator motor (M2/8) | ||
| AD00.00-P-2000-04A | |||
