Overview of automatic climate control system components - GF83.40-P-9995FL
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212

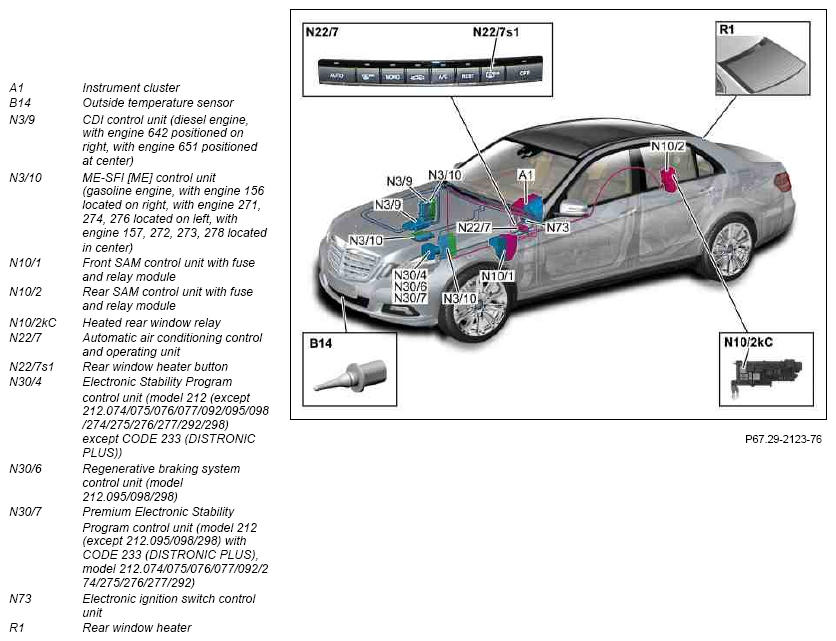

Heated rear window (HHS), shown on model 212.0

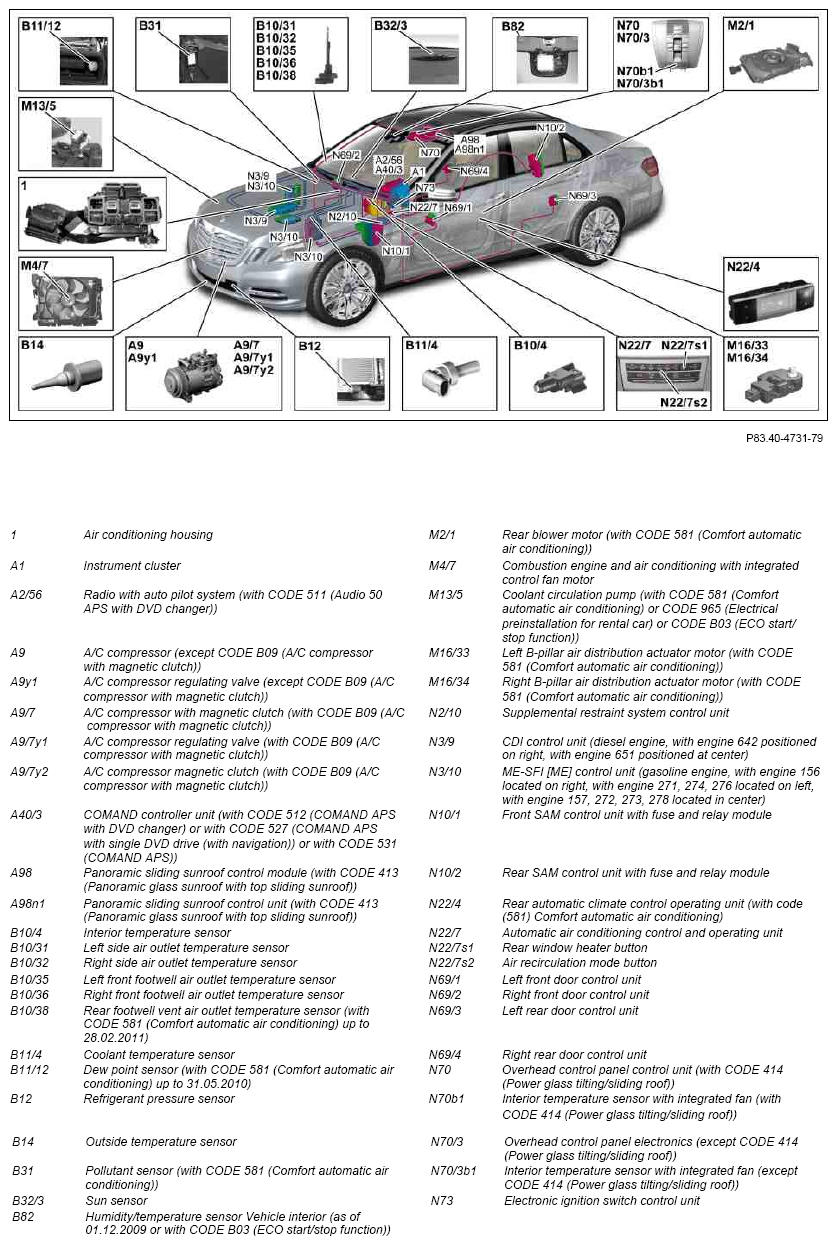

Automatic air conditioning, model 212 (except 212.095/098/298), shown on model 212.0
Automatic air conditioning, model 212.095/098/298, shown on model 212.098

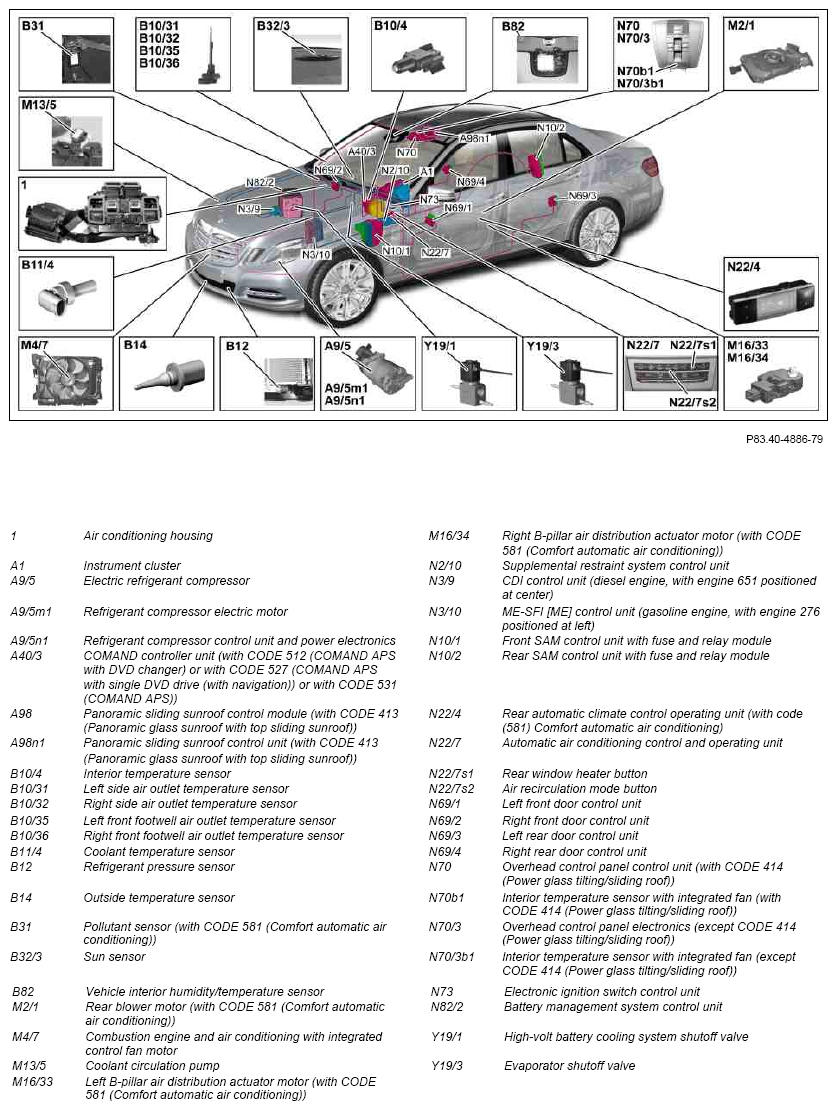

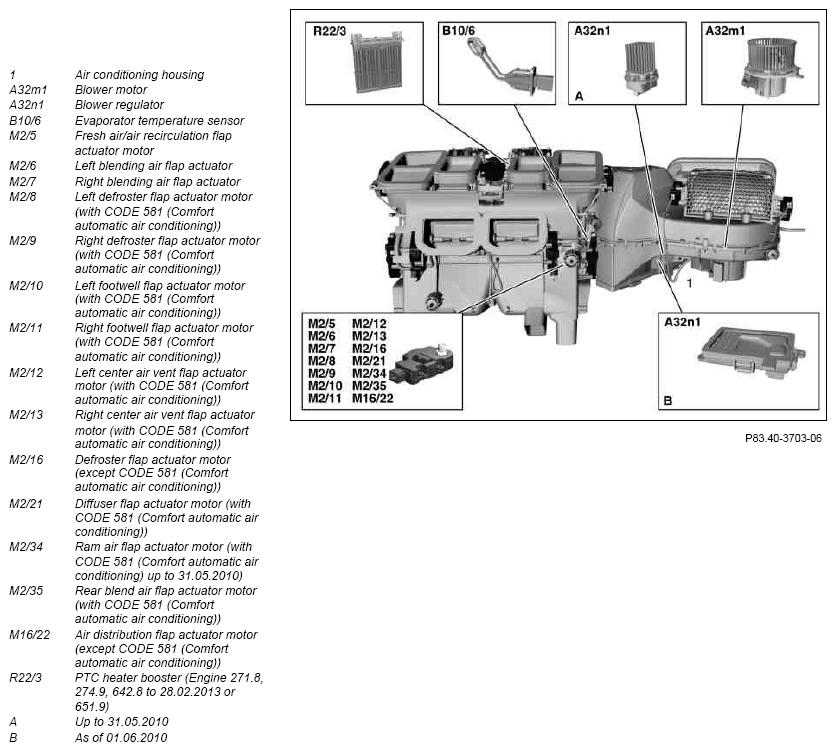

Automatic air conditioning
| Component description for instrument cluster | A1 | GF54.30-P-6000FL | |
| Component description for radio with auto pilot system | MODEL 212 with CODE 511 (Audio 50 APS with DVD changer) A2/56 |
GF82.61-P-4112FLA | |
| Component description for electric refrigerant compressor | MODEL 212.095/098/298 A9/5 |
GF83.55-P-2110FLH | |
| Component description for COMAND controller unit | MODEL 212 up to model year 2013 with CODE 512 (COMAND APS with DVD changer) MODEL 212 up to model year 2013 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 498 (Japanese version) A40/3 |
GF82.85-P-3136FL | |
| MODEL 212 up to model year 2013 with CODE 498 (Japanese version) with CODE 527 (COMAND APS with single DVD drive (with navigation)) A40/3 |
GF82.85-P-3136FLJ | ||
| MODEL 212 as of 6/1/12 up to 3/1/15 up to model year 2016 with CODE 512 (COMAND APS with DVD changer) MODEL 212 as of 6/1/12 up to 3/1/15 up to model year 2016 with CODE 527 (COMAND APS with single DVD drive (with navigation)) A40/3 |
GF82.85-P-3136FLB | ||
| MODEL 212 as of 3/2/15 as of model year 2016 with CODE 531 (COMAND APS) A40/3 |
GF82.85-P-3136FLM | ||
| Component description for panoramic sliding roof control module | MODEL 212 with CODE 413 (Panoramic glass roof with top sliding roof) A98, A98n1 |
GF77.20-P-4106FL | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FL | |
| Component description for CDI control unit | MODEL 212 with ENGINE 642.8 N3/9 |
GF07.16-P-6000OG | |
| MODEL 212.098/298 with ENGINE 651.924 up to model year 2014 N3/9 |
GF07.16-P-6000OLH | ||
| MODEL 212.098/298 with ENGINE 651.924 as of model year 2014 N3/9 |
GF07.16-P-6000OLI | ||
| MODEL 212.098/298 with ENGINE 651.9 as of 9/1/14 as of model year 2014 N3/9 |
GF07.16-P-6000OLJ | ||
| MODEL 212 (except 212.098/298) with ENGINE 651.9 Delphi N3/9 |
GF07.16-P-6000OM | ||
| MODEL 212 (except 212.098/298) with ENGINE 651.9 as of 9/1/13 with CODE 494 (US version) Bosch N3/9 |
GF07.16-P-6000OMD | ||
| Component description for ME-SFI (ME) control unit | MODEL 212 with ENGINE 156.9 N3/10 |
GF07.61-P-6000MAW | |
| MODEL 212 with ENGINE 157.9 MODEL 212 with ENGINE 278.9 N3/10 |
GF07.61-P-6000MMA | ||
| MODEL 212 with ENGINE 271.8 N3/10 |
GF07.61-P-6000MG | ||
| MODEL 212.041 with ENGINE 271.958 with CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MFG | ||
| MODEL 212 with ENGINE 272.9 (except 272.983) N3/10 |
GF07.61-P-6000MI | ||
| MODEL 212.0/2 with ENGINE 272.983 N3/10 |
GF07.61-P-6000MIE | ||
| MODEL 212.0/2 with ENGINE 273.9 N3/10 |
GF07.61-P-6000ML | ||
| MODEL 212 with ENGINE 274.9 without CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MRB | ||
| MODEL 212 with ENGINE 274.9 with CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MRC | ||
| MODEL 212 with ENGINE 276.8 as of model year 2014 N3/10 |
GF07.61-P-6000MMP | ||
| MODEL 212 (except 212.095) with ENGINE 276.9 N3/10 |
GF07.61-P-6000MM | ||
| MODEL 212.095 with ENGINE 276.9 N3/10 |
GF07.61-P-6000MMO | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FL | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FL | |
| Component description for automatic air conditioning control and operating unit | MODEL 212 without CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FLA |
|
| MODEL 212 with CODE 581 (Comfort automatic air conditioning) N22/7 |
GF83.40-P-3000FLB | ||
| Component description for Electronic Stability Program control unit | MODEL 212 (except 212.095/098/298) up to model year 2014 N304, N307 |
GF42.45-P-5119FL | |
| MODEL 212 (except 212.095/098/298) as of model year 2014 N304, N307 |
GF42.45-P-5119FLM | ||
| Component description for regenerative braking system control unit | MODEL 212.095/098/298 up to model year 2014 N30/6 |
GF42.22-P-1100FLH | |
| MODEL 212.095/098/298 as of model year 2014 N30/6 |
GF42.22-P-1100FLM | ||
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FL | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FL | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FL | |
| Component description for overhead control panel control unit | MODEL 212 with CODE 414 (Power glass tilting/sliding roof) N70, N70b1 |
GF82.20-P-5216FL | |
| Component description for electronic overhead control panel | MODEL 212 without CODE 414 (Power glass tilting/sliding roof) N70/3, N70/3b1 |
GF82.20-P-5217FL | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FL | |
| Component description for battery management system control unit | MODEL 212.095 with ENGINE 276.952 up to model year 2014 MODEL 212.098/298 with ENGINE 651.924 up to model year 2014 N82/2 |
GF54.10-P-3012FLH | |
| MODEL 212.095 with ENGINE 276.952 as of model year 2014 MODEL 212.098/298 with ENGINE 651.924 as of model year 2014 N82/2 |
GF54.10-P-3012FLM | ||
| Table of contents for automatic climate control function description | GF83.40-P-0995FL |
