Overview of system components for driver assistance systems - GF54.00-P-9998FLM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014

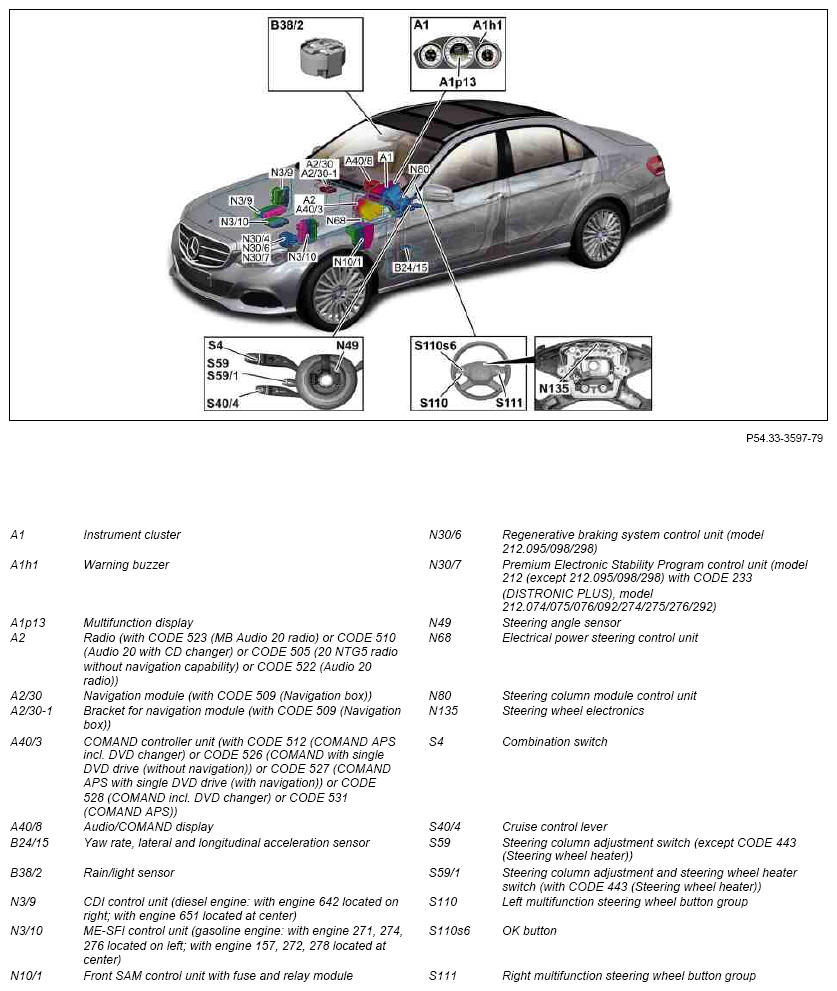

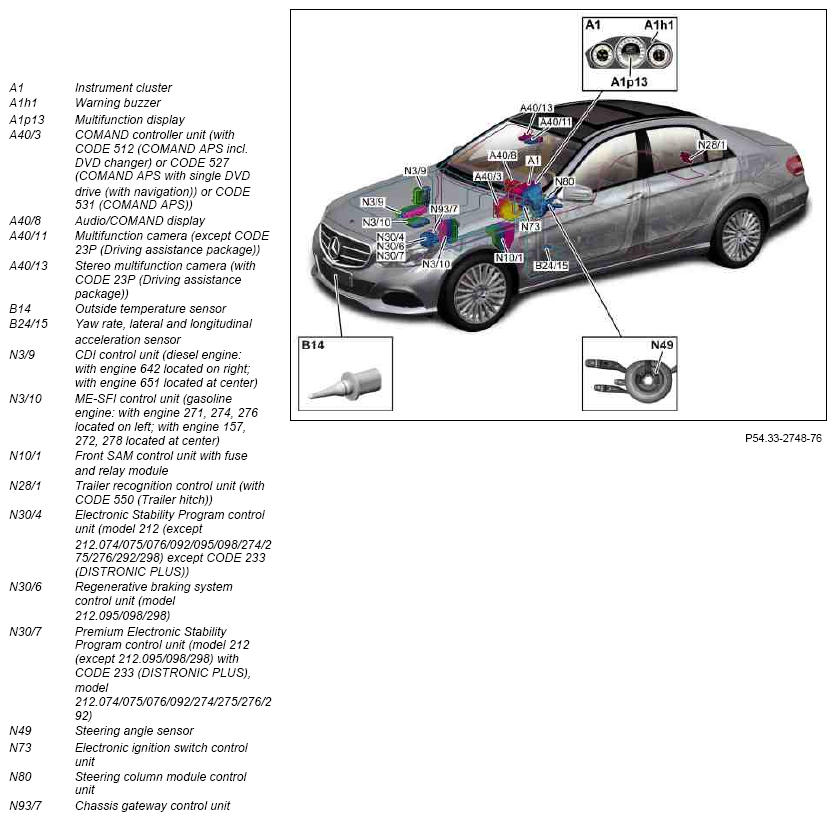

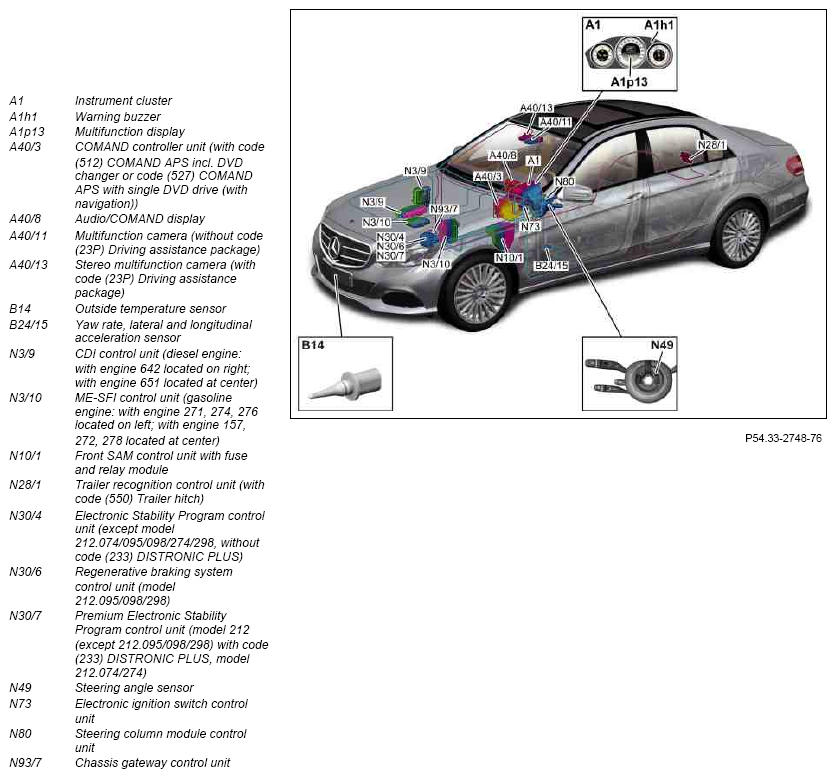

Attention assistance system; illustration shows model 212.0

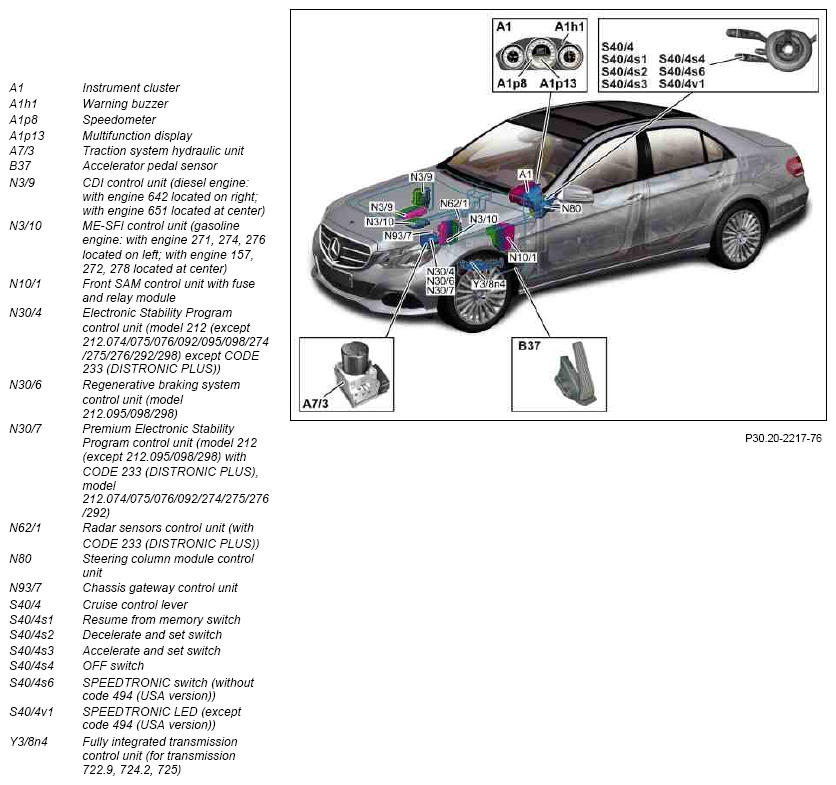

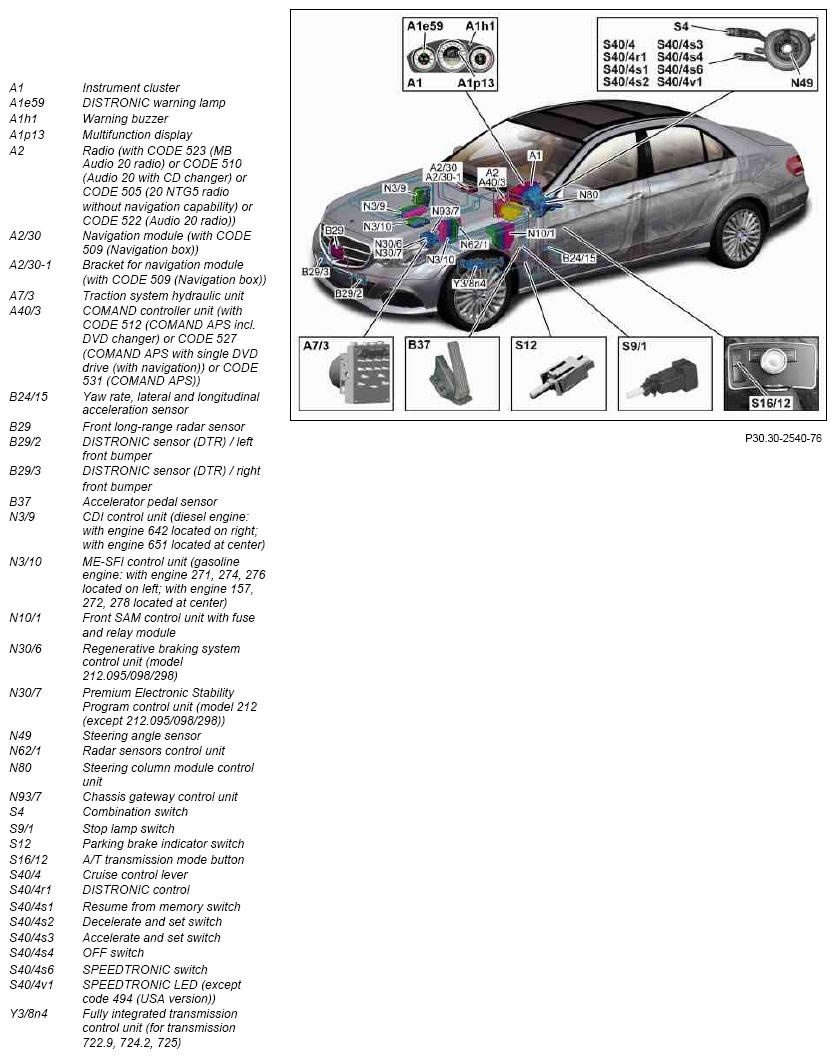

Cruise control (CC); illustration shows model 212.0

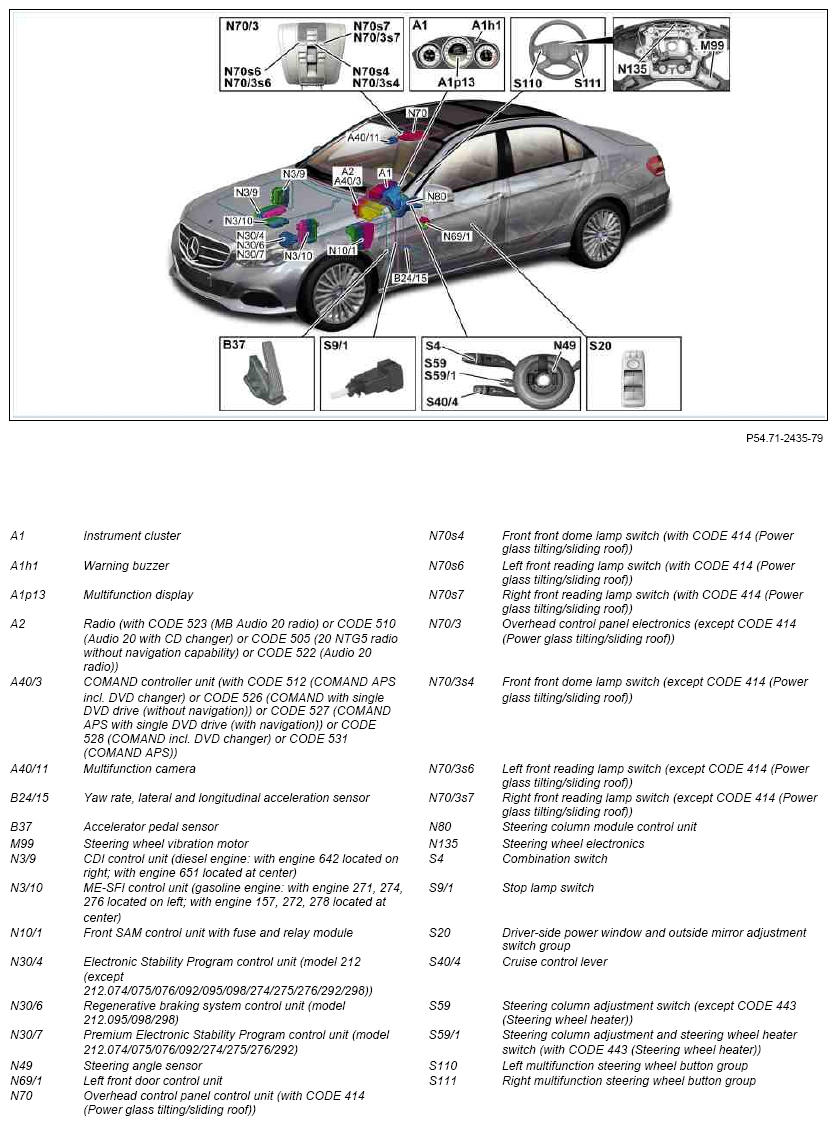

Lane Keeping Assist (with CODE 476 (Lane Keeping Assist)), shown on model 212.0

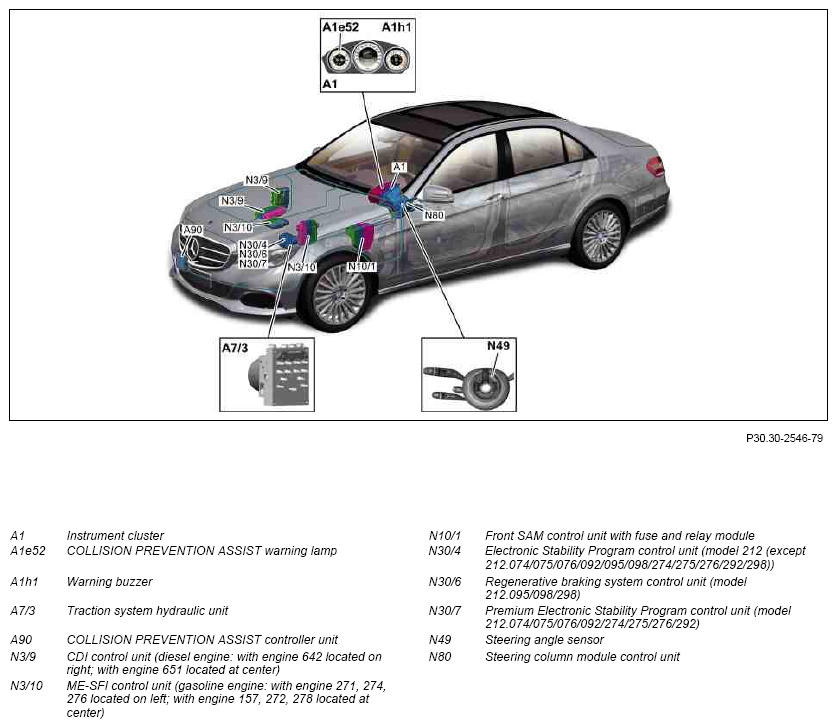

COLLISION PREVENTION ASSIST (with CODE 258 (Collision Prevention Assist)) up to 30.11.2014, shown on model 212.0

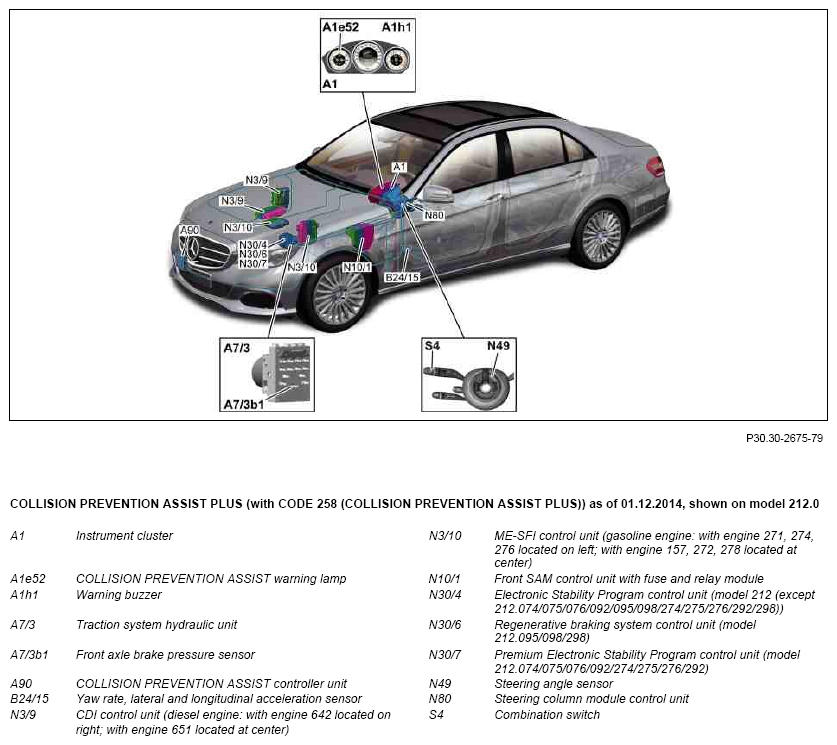

COLLISION PREVENTION ASSIST PLUS (with CODE 258 (COLLISION PREVENTION ASSIST PLUS)) as of 01.12.2014, shown on model 212.0

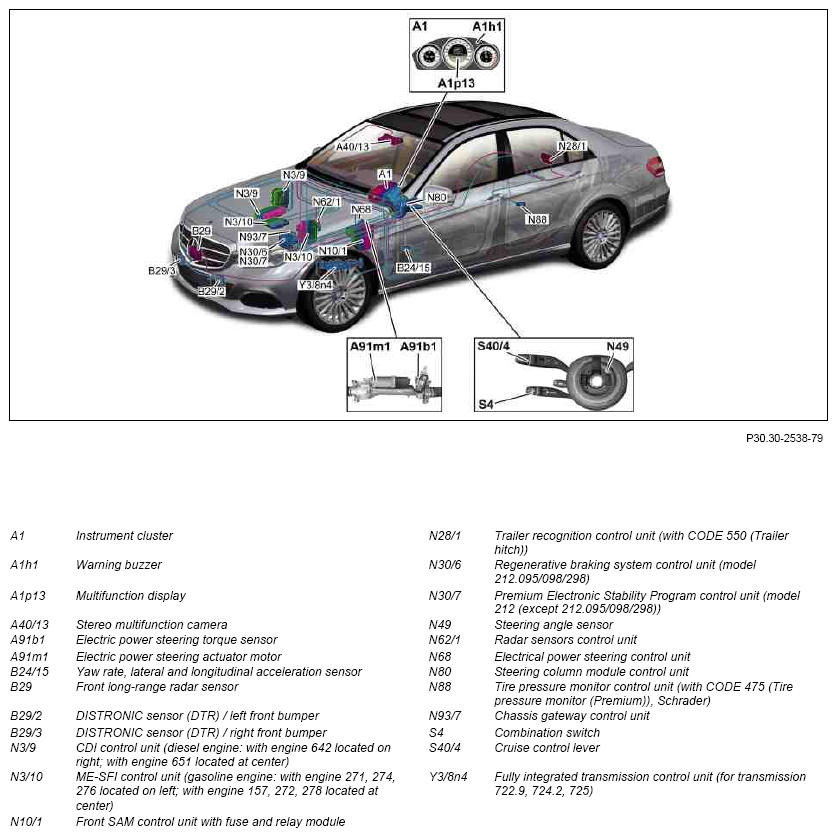

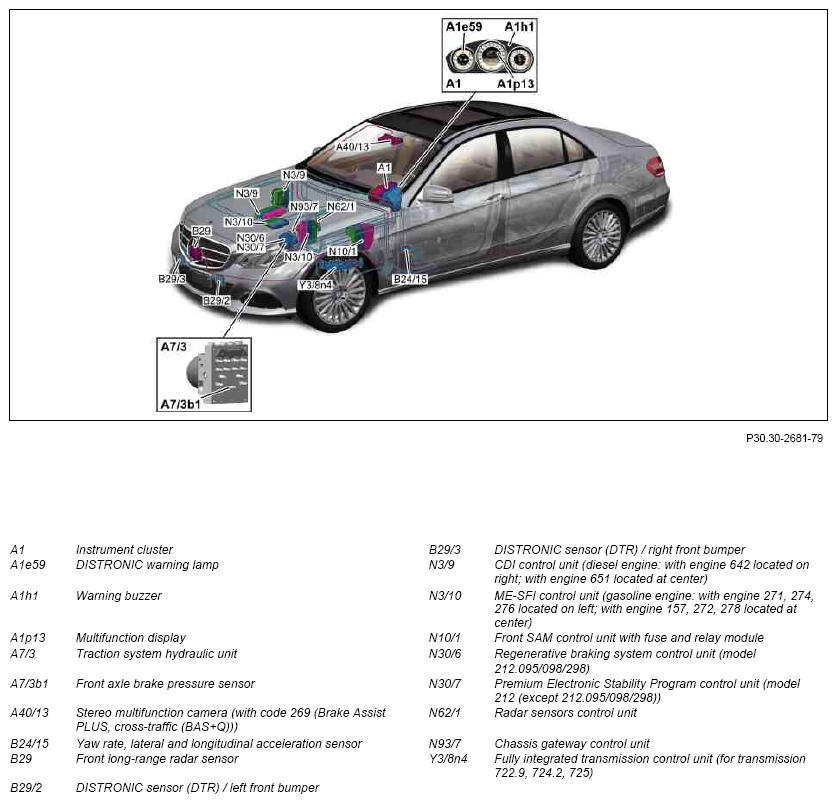

DISTRONIC PLUS (with CODE 233 (DISTRONIC PLUS)); shown on model 212.0

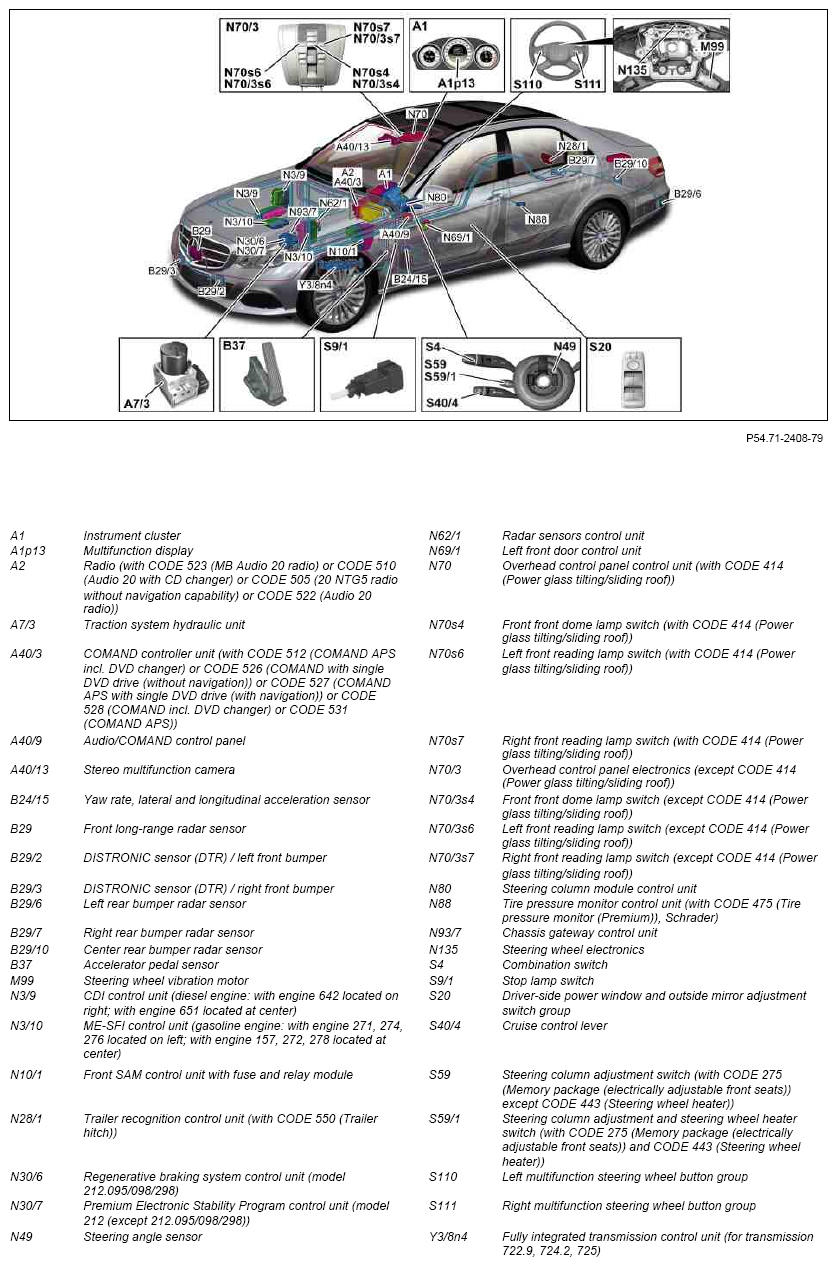

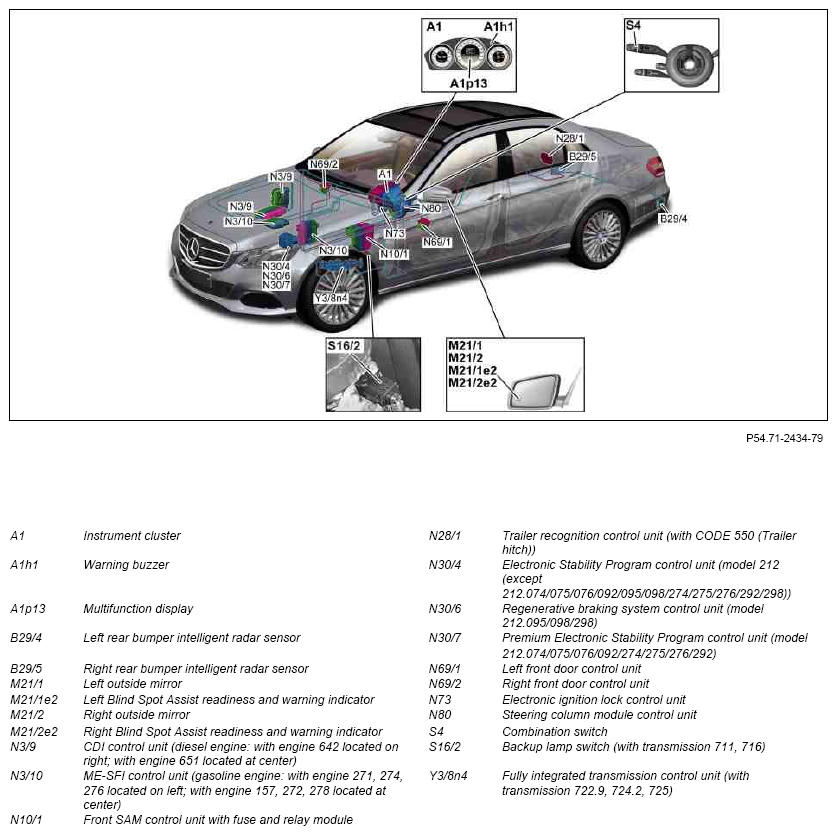

Blind Spot Assist (with CODE 234 (Blind Spot Assist)), shown on model 212.0

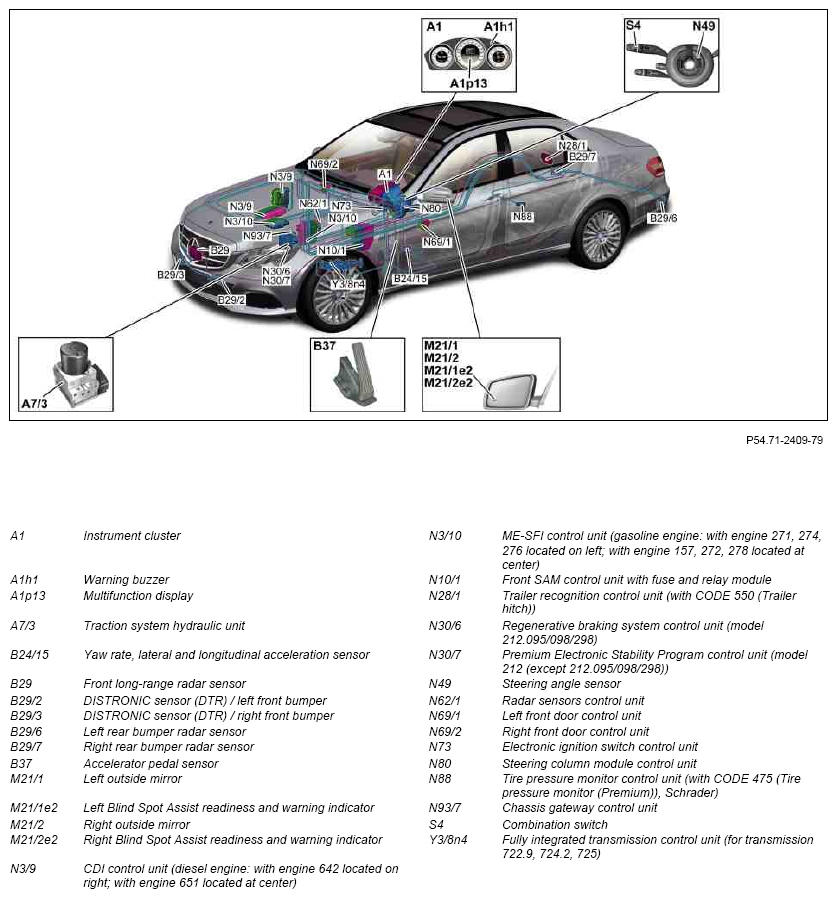

Active Blind Spot Assist (with CODE 237 (Active Blind Spot Assist)), shown on model 212.0
Active Lane Keeping Assist (with CODE 238 (Active Lane Keeping Assist)); illustration shows model 212.0

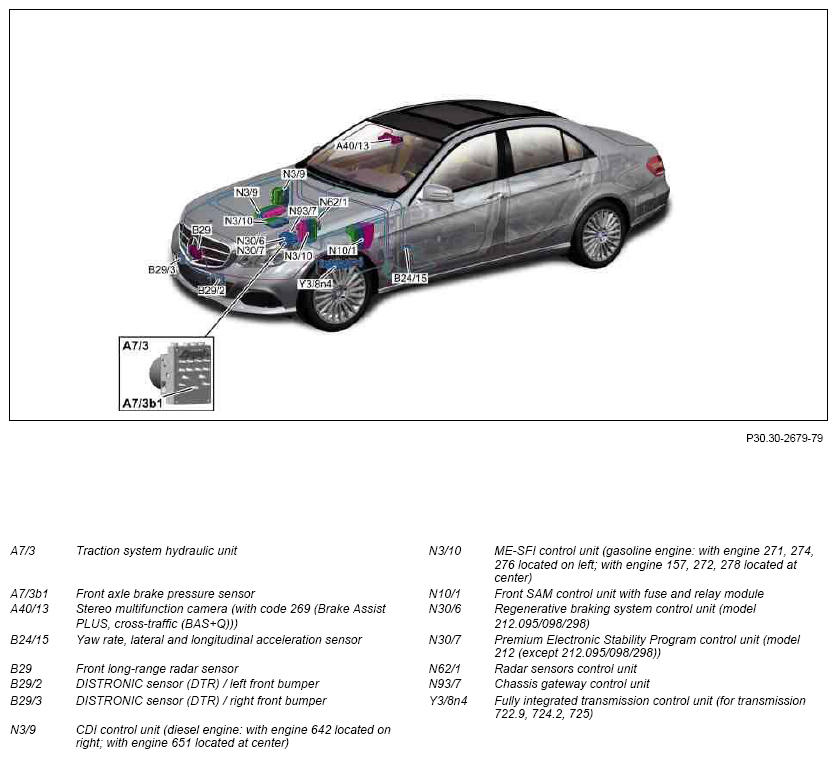

BAS PLUS (with CODE 268 (Brake Assist System PLUS) or CODE 269 (Brake Assist System PLUS cross-traffic (BAS+Q))), shown on model 212.0
PRE-SAFE® brake (with CODE 271 (Autonomous brake intervention/pedestrian protection) or CODE 300 (Collision reduction (CMS))); illustration shows model 212.0

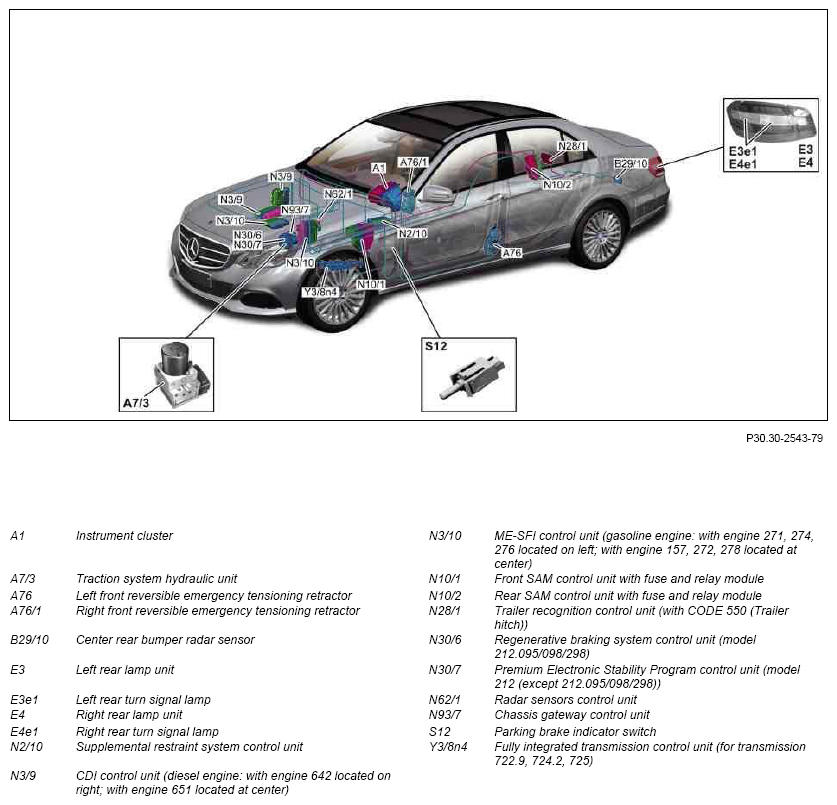

Rear-end PRE-SAFE® (with CODE 253 (Rear collision warning and protection system)); illustration shows model 212.0
DISTRONIC PLUS with Steer Assist (with CODE 266 (Steer Assist)) up to 30.11.2014); illustration shows model 212.0

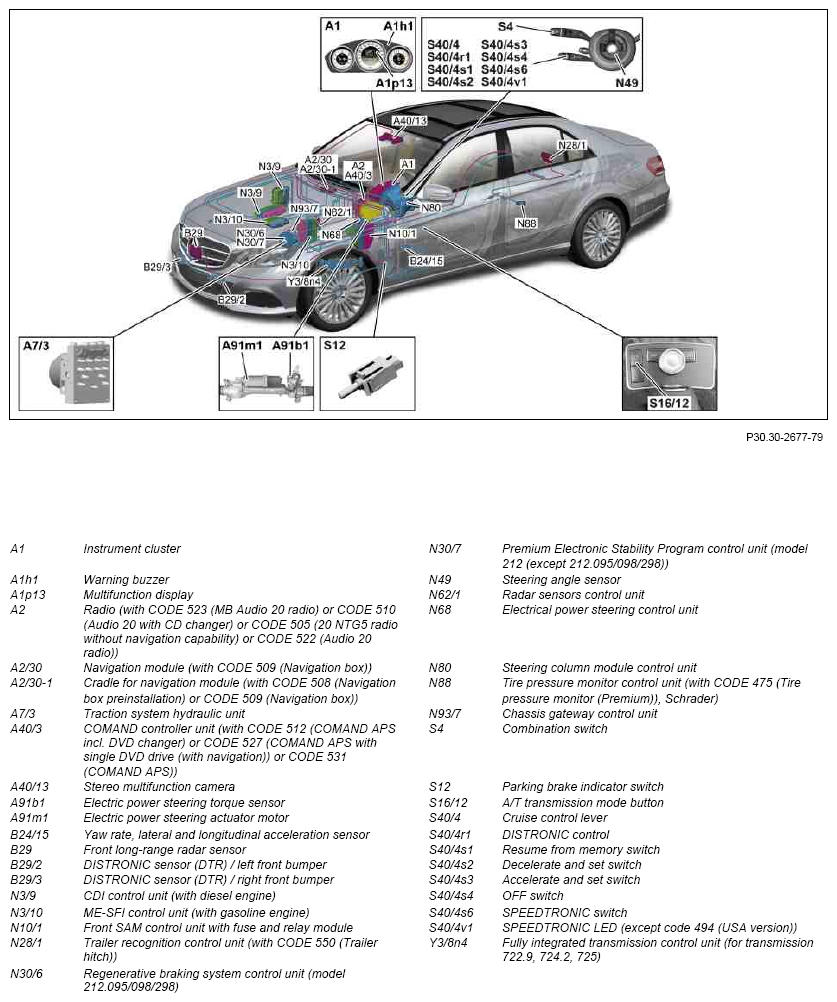

DISTRONIC PLUS with Steer Assist and Stop & Go Pilot (with CODE 266 (DISTRONIC PLUS with Steer Assist and Stop & Go Pilot)) as of 01.12.2014; show on model 212.0
Traffic Sign Assist (with CODE 513 (Traffic sign recognition)), show on model 212.0
Traffic Sign Assist (with code (513) Traffic sign recognition); illustration shows model 212.0
| Component description for instrument cluster | A1 | GF54.30-P-6000FL | |
| Component description for the radio | MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 510 (Audio 20 with CD changer) MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 523 (MB Audio 20 radio) A2 |
GF82.60-P-3122FLA | |
| MODEL 212 as of 3/2/15 as of model year 2016 with CODE 505 (Radio 20 NTG5, not navigation-enabled) MODEL 212 as of 3/2/15 as of model year 2016 with CODE 522 (Audio 20 radio) A2 |
GF82.60-P-3122FLM | ||
| Cradle for navigation module, component description | MODEL 212 as of model year 2014 with CODE 508 (Navigation box preinstallation) with CODE 509 (Navigation box) A2/30-1 |
GF82.85-P-3137FL | |
| Component description for COMAND controller unit | MODEL 212 as of 6/1/12 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 512 (COMAND APS with DVD changer) MODEL 212 as of 6/1/12 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 527 (COMAND APS with single DVD drive (with navigation)) MODEL 212 as of 6/1/12 up to 8/31/14 as of model year 2014 up to model year 2015 with CODE 528 (COMAND with DVD changer) MODEL 212 as of 9/1/14 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 526 (COMAND with single DVD drive (without navigation)) A40/3 |
GF82.85-P-3136FLB | |
| MODEL 212 as of 3/2/15 as of model year 2016 with CODE 531 (COMAND APS) A40/3 |
GF82.85-P-3136FLM | ||
| Component description for Audio/COMAND display | MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 without CODE 867 (SPLITVIEW) A40/8 |
GF54.30-P-6150FL | |
| MODEL 212 up to 3/1/15 as of model year 2014 up to model year 2016 with CODE 867 (SPLITVIEW) A40/8 |
GF54.30-P-6150FLM | ||
| MODEL 212 as of 3/2/15 as of model year 2016 A40/8 |
GF54.30-P-6150FLN | ||
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501FLA | |
| Component description for multifunction camera | MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package Plus) MODEL 212 as of model year 2014 with CODE 476 (Lane keeping assist) MODEL 212 as of model year 2014 with CODE 513 (Road sign recognition system) A40/11, A40/13 |
GF54.21-P-3300FL | |
| Component description for front reversible emergency tensioning retractors | A76, A761 | GF91.40-P-4020FL | |
| COLLISION PREVENTION ASSIST controller unit, component description | MODEL 212 as of model year 2014 up to model year 2015 with CODE 258 (Collision Prevention Assist) MODEL 212 as of model year 2015 with CODE 258 (COLLISION PREVENTION ASSIST PLUS) A90 |
GF30.30-P-3214FLM | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810FL | |
| Long-range radar sensor, component description | MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package Plus) B29 |
GF30.30-P-3125FLM | |
| Component description for bumper radar sensors | MODEL 212 as of model year 2014 with CODE 22P (Lane tracking package) MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package Plus) B29/2, B29/3, B29/4, B29/5, B29/6, B29/7, B29/10 |
GF30.30-P-3302FLM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FL | |
| Component description for CDI control unit | MODEL 212 with ENGINE 642.8 as of model year 2014 N3/9 |
GF07.16-P-6000OG | |
| MODEL 212.098/298 with ENGINE 651.924 as of model year 2014 N3/9 |
GF07.16-P-6000OLI | ||
| MODEL 212 (except 212.098/298) with ENGINE 651.9 as of model year 2014 Delphi N3/9 |
GF07.16-P-6000OM | ||
| MODEL 212 (except 212.098/298) with ENGINE 651.9 as of 9/1/13 as of model year 2014 with CODE 494 (US version) Bosch N3/9 |
GF07.16-P-6000OMD | ||
| Component description for ME-SFI (ME) control unit | MODEL 212 with ENGINE 271.8 as of model year 2014 N3/10 |
GF07.61-P-6000MG | |
| MODEL 212.0/2 with ENGINE 272.9 (except 272.98) as of model year 2014 N3/10 |
GF07.61-P-6000MI | ||
| MODEL 212 (except 212.095) with ENGINE 276.9 as of model year 2014 N3/10 |
GF07.61-P-6000MM | ||
| MODEL 212 with ENGINE 157.9 as of model year 2014 MODEL 212 with ENGINE 278.9 as of model year 2014 N3/10 |
GF07.61-P-6000MMA | ||
| MODEL 212.095 with ENGINE 276.9 as of model year 2014 N3/10 |
GF07.61-P-6000MMO | ||
| MODEL 212 with ENGINE 274.9 as of model year 2014 without CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MRB | ||
| MODEL 212 with ENGINE 274.9 as of model year 2014 with CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MRC | ||
| MODEL 212 with ENGINE 276.8 as of model year 2014 N3/10 |
GF07.61-P-6000MMP | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FL | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FL | |
| Component description for trailer recognition control unit | MODEL 212 as of model year 2014 with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050FL | |
| Component description for Electronic Stability Program control unit | MODEL 212 (except 212.095/098/298) as of model year 2014 N30/4, N30/7 |
GF42.45-P-5119FLM | |
| Component description for regenerative braking system control unit | MODEL 212.095/098/298 as of model year 2014 N30/6 |
GF42.22-P-1100FLM | |
| Component description for radar sensors control unit | MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301FLM | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010FLM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FL | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FL | |
| Component description for overhead control panel control unit | MODEL 212 as of model year 2014 with CODE 414 (Power glass tilting/sliding roof) N70 |
GF82.20-P-5216FL | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FL | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FL | |
| Component description for tire pressure monitor control unit | MODEL 212 as of model year 2014 with CODE 475 (Tire pressure monitor (premium)) Schrader N88 |
GF40.15-P-5124FLM | |
| Component description for chassis gateway control unit | MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package Plus) N93/7 |
GF54.21-P-1010FLM | |
| Component description for fully integrated transmission control unit | MODEL 212 with TRANSMISSION 724.2 as of model year 2014 Y38n4 |
GF27.60-P-5165AHO | |
| MODEL 212.0/2 with TRANSMISSION 722.930 up to 5/31/11, 722.931 as of 6/1/11 as of model year 2014 Y38n4 |
GF27.60-P-5165AHX | ||
| MODEL 212 with TRANSMISSION 722.9 (except 722.930/931) as of model year 2014 Y38n4 |
GF27.60-P-5165AHL | ||
| MODEL 212 with TRANSMISSION 725.0 as of model year 2014 Y38n4 |
GF27.60-P-5165ANA | ||
| Table of contents for function description of driver assistance systems | GF54.00-P-0998FLM |
