Seal front axle transmission - AR33.30-P-0542SYZ

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.08/09/28/29/38/93/98/99, 207.38

MODEL 212, 218 with TRANSMISSION 722.97

MODEL 212.08/09/28/29, 216, 218.39/99, 221 with TRANSMISSION 722.96

MODEL 222 with ENGINE 278 with TRANSMISSION 722.96

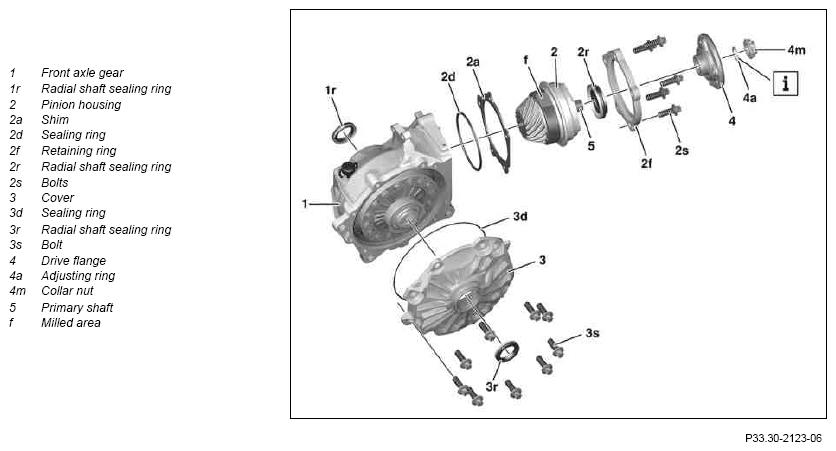

Fig 1: Seal Of Front Axle Transmission Components
G09976252Courtesy of MERCEDES-BENZ USA
REMOVING Remove
1 Remove front axle transmission (1) MODEL 222 with ENGINE 278 with TRANSMISSION 722.96 AR33.30-P-0525LFX
    MODEL 216, 221 with TRANSMISSION 722.96 AR33.30-P-0525SYZ
    MODEL 204, 207, 212, 218
NOTES
Absolute cleanliness is essential when working on the front axle transmission (1).
If not observed, even minute dirt particles can prevent the front axle transmission (1) from functioning correctly.		 AR33.30-P-0525CWX
DISASSEMBLINGDISASSEMBLING Disassemble/assemble
  Seal off primary shaft (5)
2 Remove collar nut (4m) using retainer wrench from drive flange (4) and remove adjusting ring (4a) from drive flange (4) IMPORTANT The SPECIAL TOOL retainer wrench is secured to the drive flange with just one bolt.
INSTALLATION IMPORTANT Replace collar nut (4m).
The adjusting ring (4a) determines the bearing preload of the front axle transmission (1) and therefore it must on no account be replaced. If the adjusting ring 4a) is lost, the front axle transmission (1) must be replaced.
    TORQUE SPECIFICATION Collar bolt, joint flange to drive pinion *BA33.30-P-1003-03G
    SPECIAL TOOL Pin wrench Figure
3 Mark position of drive flange (4) relative to primary shaft (5)
4 Pull off drive flange (4) SPECIAL TOOL Puller Figure
5 Use suitable tool to pry radial shaft sealing ring (2r) out of front axle transmission (1)
REFER TO CAPACITIES & SPECIFICATIONS Universal hypoid gear oils (specification 235.7)   Universal hypoid gear oils (specification 235.7). MB 235.7/235.74 FE hypoid gear oil A 001 989 33 03/Mobilube FE/FE Plus 75W-85
    INSTALLATION IMPORTANT Replace radial shaft sealing ring (2r). Coat sealing lip of radial shaft sealing ring (2r) using universal hypoid gear oil.
INSTALLATION IMPORTANT Drive radial shaft sealing ring (2r) using SPECIAL TOOL drift into front axle transmission.
    SPECIAL TOOL Drift Figure
6 Assemble in the reverse order
  Seal pinion housing (2)
7 Remove screws/bolts (2s) TORQUE SPECIFICATION Collar bolt, retaining collar to front axle transmission *BA33.30-P-1004-03G
8 Pull pinion housing (2) with retaining ring (2f) out of front axle transmission (1)   AR33.30-P-0469-01SYZ
    INSTALLATION IMPORTANT The milled area (f) must face upward to ensure oil flow in the pinion housing (2).
    SPECIAL TOOL Extraction tool Figure
    SPECIAL TOOL Impact extractor Figure
9 Remove shim (2a) and sealing ring (2d) INSTALLATION IMPORTANT Replace seal.
10 Assemble in the reverse order
  Seal cover (3) and replace radial shaft sealing rings (1r, 3r)
11 Pull out radial shaft sealing rings (1r, 3r) INSTALLATION IMPORTANT Replace radial shaft sealing rings (1r, 3r).
    SPECIAL TOOL Impact extractor Figure
    SPECIAL TOOL Internal extractor Figure
    SPECIAL TOOL Extraction tool Figure
    SPECIAL TOOL Drift Figure
12 Remove bolts (3s) and remove cover (3) TORQUE SPECIFICATION Collar bolt, cover to front axle transmission *BA33.30-P-1001-03G
13 Remove sealing ring (3d) INSTALLATION IMPORTANT Replace sealing ring (3d).
14 Assemble in the reverse order
INSTALLING Install
15 Install front axle transmission (1) MODEL 222 with ENGINE 278 with TRANSMISSION 722.96 AR33.30-P-0525LFX
    MODEL 216, 221 with TRANSMISSION 722.96 AR33.30-P-0525SYZ
    MODEL 204, 207, 212, 218
NOTES
Absolute cleanliness is essential when working on the front axle transmission (1).
Even minute dirt particles can prevent the front axle transmission (1) from functioning correctly.		 AR33.30-P-0525CWX
FRONT AXLE TRANSMISSION

Number Designation MODEL 204 MODEL 207
BA33.30-P-1001-03G Collar bolt, cover to front axle transmission Nm 55 55
FRONT AXLE TRANSMISSION

Number Designation MODEL 212 MODEL 216
BA33.30-P-1001-03G Collar bolt, cover to front axle transmission Nm 55 55
FRONT AXLE TRANSMISSION

Number Designation MODEL 218 MODEL 221
BA33.30-P-1001-03G Collar bolt, cover to front axle transmission Nm 55 55
FRONT AXLE TRANSMISSION

Number Designation MODEL 222
BA33.30-P-1001-03G Collar bolt, cover to front axle transmission Nm 47
FRONT AXLE TRANSMISSION

Number Designation MODEL 204 MODEL 207
BA33.30-P-1003-03G Collar bolt, joint flange to drive pinion Nm 100 100
FRONT AXLE TRANSMISSION

Number Designation MODEL 212 MODEL 216
BA33.30-P-1003-03G Collar bolt, joint flange to drive pinion Nm 100 100
FRONT AXLE TRANSMISSION

Number Designation MODEL 218 MODEL 221
BA33.30-P-1003-03G Collar bolt, joint flange to drive pinion Nm 100 100
FRONT AXLE TRANSMISSION

Number Designation MODEL 222
BA33.30-P-1003-03G Collar bolt, joint flange to drive pinion Nm 100
FRONT AXLE TRANSMISSION

Number Designation MODEL 204 MODEL 207
BA33.30-P-1004-03G Collar bolt, retaining collar to front axle transmission Nm 55 55
FRONT AXLE TRANSMISSION

Number Designation MODEL 212 MODEL 216
BA33.30-P-1004-03G Collar bolt, retaining collar to front axle transmission Nm 55 55
FRONT AXLE TRANSMISSION

Number Designation MODEL 218 MODEL 221
BA33.30-P-1004-03G Collar bolt, retaining collar to front axle transmission Nm 55 55
FRONT AXLE TRANSMISSION

Number Designation MODEL 222
BA33.30-P-1004-03G Collar bolt, retaining collar to front axle transmission Nm 55
Fig 2: Identifying Extraction Tool (221 589 04 33 00)
G09976253Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Impact Extractor (602 589 00 33 00)
G09976254Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Internal Extractor (203 589 03 33 00)
G09976255Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Drift (221 589 04 15 00)
G09976256Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Puller (203 589 02 33 00)
G09976257Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Pin Wrench (164 589 00 05 00)
G09976258Courtesy of MERCEDES-BENZ USA
