Remove pinion housing - AR33.30-P-0469-01SYZ

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.08/09/28/29/38/90/93/98/99, 207.38

MODEL 205 with TRANSMISSION 722.96

MODEL 212, 217, 218, 222 with TRANSMISSION 722.97

MODEL 212.08/09/28/29, 216, 218.39/99, 221 with TRANSMISSION 722.96

MODEL 217, 222 with TRANSMISSION 722.96

MODEL 253 with TRANSMISSION 725.04

Fig 1: Identifying Extraction Tool (221 589 04 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Impact Extractor (602 589 00 33 00)

Courtesy of MERCEDES-BENZ USA

The knock-on balancing weight must be mounted on the impact extractor (02) such that the impact travel is short.

This prevents damage to the body when the pinion housing (2) is pulled out.

Mount pulling device (03) on drive flange (4).

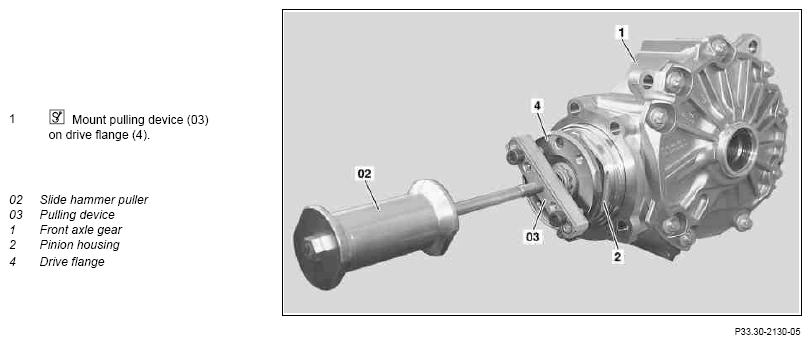

Fig 3: Mounting Pulling Device On Drive Flange
Courtesy of MERCEDES-BENZ USA
Attach impact extractor (02) to pulling device (03).
Pull pinion housing (2) out of front axle differential (1).
