Test turbocharger vacuum unit - AR09.40-P-5915CD

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 651 in MODELS 204, 207, 212, 218, 221

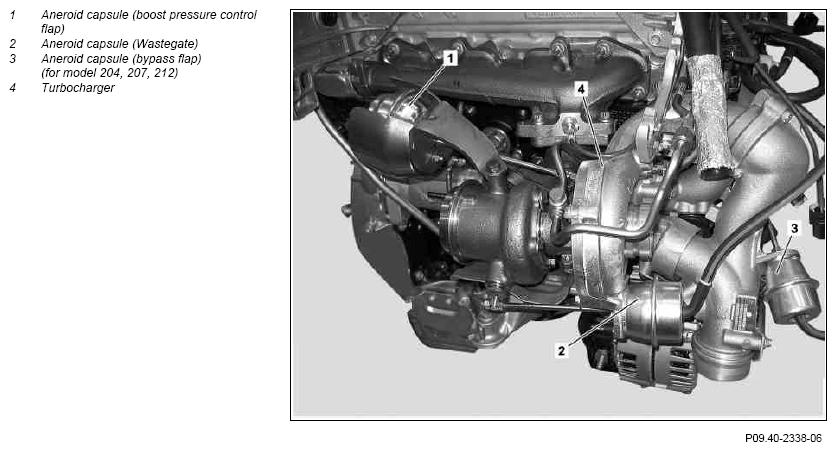

Fig 1: Testing Turbocharger Vacuum Unit

Courtesy of MERCEDES-BENZ USA

	Checking
1	Detach vacuum hose on the aneroid capsule (1, 2 or 3) to be checked
2	Attach vacuum pump to hose connection for aneroid capsule (1, 2 or 3)	Hand vacuum pump	Figure
2		Vacuum tester	Figure
3	Build up a pressure of about 700 mbar	If a pressure buildup is not possible or the built up pressure drops, replace aneroid capsule (1, 2 or 3). See: ↓
		Remove/install aneroid capsules on turbocharger	AR09.40-P-1002CD
4	Attach vacuum hose to hose connection for aneroid capsule (1, 2 or 3)

Fig 2: Identifying Hand Vacuum Pump (001 589 73 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Vacuum Tester (201 589 13 21 00)

Courtesy of MERCEDES-BENZ USA
