Remove/install the tumble flap and resonance flap switchover valve at the intake manifold - AR09.20-P-1990EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 272, 273 (except 272.983) in MODEL 212

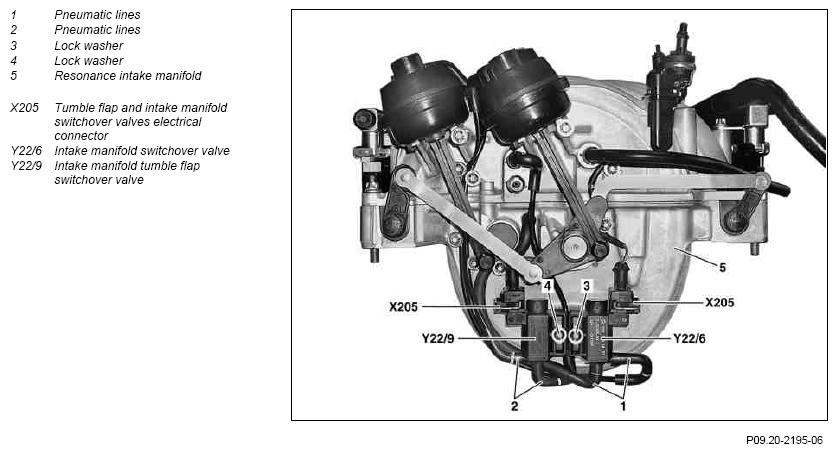

Fig 1: Tumble Flap And Resonance Flap Switchover Valve At Intake Manifold Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
1	Remove resonance intake manifold (5)		AR09.20-P-1961EW
2	Detach pneumatic line (1 or 2) from switchover valve (Y22/6 or Y22/9)	Installation: Check pneumatic line (1 or 2) for damage and replace if necessary.
3	Remove lock washer (3 or 4)	Replace lock washer (3 or 4).
4	Disconnect electrical connector (X205) and remove switchover valve (Y22/6 or Y22/9) from resonance intake manifold (5)
5	Install in the reverse order
