Detach/attach connecting flange on intake manifold - AR09.20-P-1311AMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156

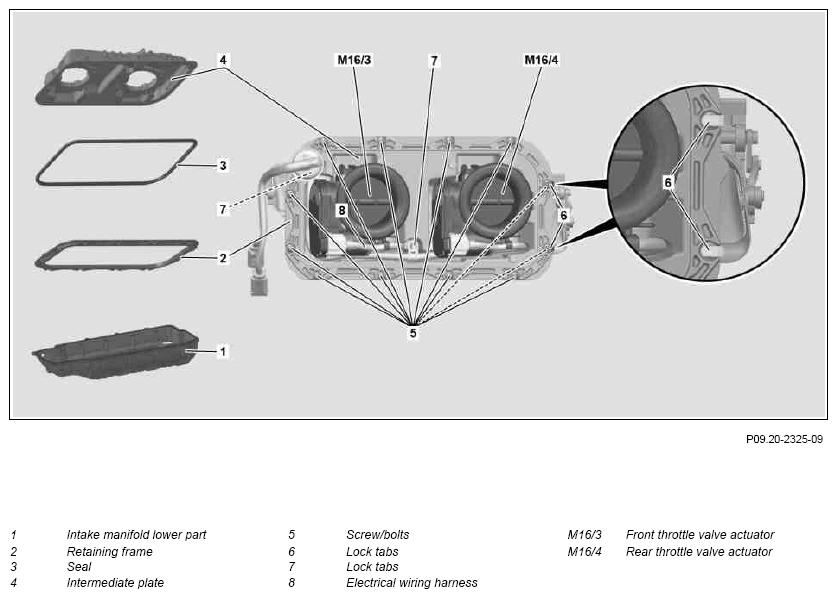

Shown on model 204.077
| Remove/install | |||
| 1 | Remove front and rear throttle valve actuator (M16/3, M16/4) | AR07.61-P-1401AMG | |
Engine damage will occur otherwise. |
|||
| 2 | Open lock tabs (7) and remove screw/bolts from wiring harness mount (8) | *BA09.20-P-1006-01R | |
| 3 | Detach electrical wiring harness (8) from intermediate plate (4) and set aside | ||
| 4 | Open lock tab (6) | Engine damage will occur otherwise. |
|
| 5 | Remove screw/bolts (5) | The intake manifold will be damaged otherwise. |
|
| *BA09.20-P-1005-01R | |||
| 6 | Remove retaining frame (2) with seal (3) from intermediate plate (4) | ||
| 7 | Remove intermediate plate (4) from intake manifold upper part | ||
| Check | |||
| 8 | Check intake manifold lower part (1) and intermediate plate (4) for external damage and replace if necessary | ||
| 9 | Check electrical wiring harness (8) for external damage and replace if necessary | ||
| 10 | Install in the reverse order |
INTAKE MANIFOLD
| Number | Designation | ENGINE 156 | ||
|---|---|---|---|---|
| BA09.20-P-1005-01R | Bolt, retaining frame for intermediate plate to intake manifold upper part | Initial installation | Nm | 9 |
| Follow-up operations | Nm | 7 | ||
INTAKE MANIFOLD
| Number | Designation | ENGINE 156 | |
|---|---|---|---|
| BA09.20-P-1006-01R | Screw/bolt, attachment of wiring harness to intermediate plate | Nm | 9 |
