Remove/install throttle valve actuator - AR07.61-P-1401AMG
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 156

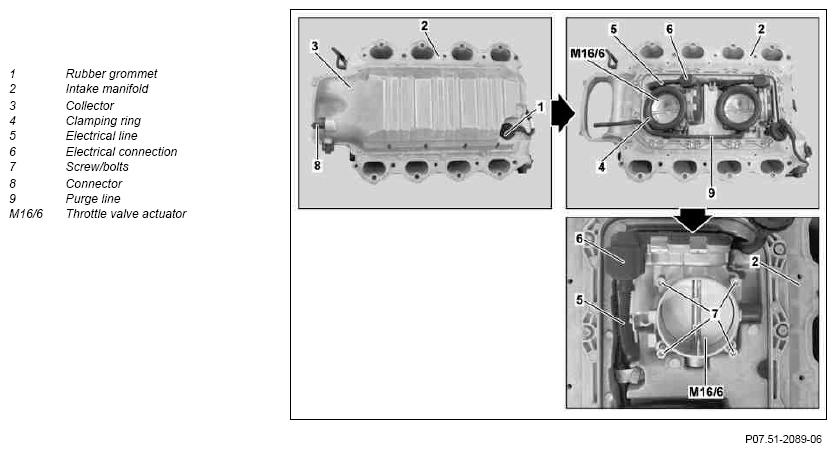

Throttle valve actuator shown on model 211
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Switch off ignition | ||
| 2 | Remove partition wall between wheel wells | ENGINE 156 in MODEL 251 | AR62.30-P-2400RT |
| 3 | Remove air filter housing | ENGINE 156 in MODEL 164, 251 | AR09.10-P-1150GZS |
| ENGINE 156 in MODEL 204, 212 | AR09.10-P-1150CMG | ||
| ENGINE 156.982 in MODEL 209.377/477 ENGINE 156.983 in MODEL 211.077/277, 219.377 |
AR09.10-P-1150TMG | ||
| ENGINE 156 in MODEL 216, 221 | AR09.10-P-1150SMG | ||
| ENGINE 156 in MODEL 230 | AR09.10-P-1150RMG | ||
| 4 | Remove intake manifold (2) | ENGINE 156 in MODEL 164, 251 | AR09.20-P-1961GZS |
| ENGINE 156 in MODEL 204, 212 | AR09.20-P-1961CMG | ||
| ENGINE 156.982 in MODEL 209.377/477 ENGINE 156.983 in MODEL 211.077/277, 219.377 |
AR09.20-P-1961TMG | ||
| ENGINE 156 in MODEL 216, 221 | AR09.20-P-1961SMG | ||
| ENGINE 156 in MODEL 230.470 | AR09.20-P-1961RMG | ||
| 5 | Push rubber grommet (1) out of collector (3) | ||
| Lubricant, rubber assembly 1 l | *BR00.45-Z-1010-06A | ||
| 6 | Unscrew collector (3) from intake manifold (2) | ||
| *BA09.20-P-1004-01R | |||
| Loctite 5970 sealant | *BR00.45-Z-1013-01A | ||
| 7 | Modify temperature sensors on collector (3) | If the collector (3) is replaced. | |
| 8 | Unclip clamping ring (4) and electrical line (5) at throttle valve actuator (M166) | ||
| 9 | Disconnect electrical connection (6) | ||
| 10 | Remove screw/bolts (7) at throttle valve actuator (M16/6) and remove throttle valve actuator (M16/6) | ||
| *BA07.61-P-1001-01F | |||
| 11 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
ME-SFI [ME] GASOLINE INJECTION AND IGNITION SYSTEM
| Number | Designation | ENGINE 156 | ||
|---|---|---|---|---|
| BA07.61-P-1001-01F | Screw/bolt to throttle valve actuator | Initial installation | Nm | 9 |
| Follow-up operations | Nm | 7 | ||
INTAKE MANIFOLD
| Number | Designation | ENGINE 156 | ||
|---|---|---|---|---|
| BA09.20-P-1004-01R | Screw/bolt, collector to intake manifold | Initial installation | Nm | 9 |
| Follow-up operations | Nm | 7 | ||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 l | A 000 989 03 67 |
| BR00.45-Z-1013-01A | Loctite 5970 sealant | A 003 989 98 20 |
