Remove/install stowage compartment or ashtray housing - AR68.20-P-2420EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) with CODE 279 (Electronic gear selector)
Shown up to model year 2014
Shown except CODE 301 (Ashtray/smoker package)
| Remove/install | |||

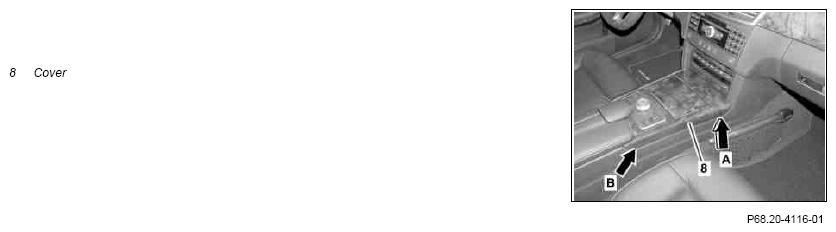

| 1 | Remove cover (8) | AR68.20-P-2350EW | |
| 2 | Remove automatic air conditioning control and operating unit | AR83.40-P-6350EW | |

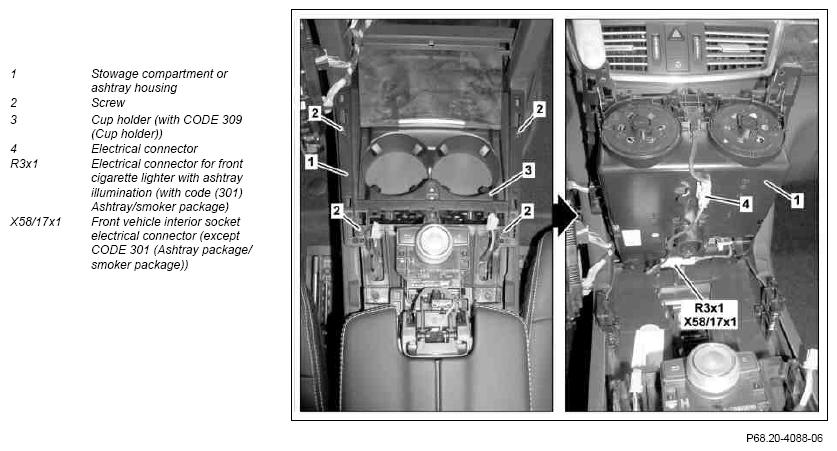

| 3 | Remove screw/bolts (2) | ||
| 4.1 | Lift stowage compartment or ashtray housing (1) until electrical connector on front ashtray illumination (R3x1) is accessible | MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) with CODE 279 (Electronic gear selector) with CODE 301 (Package SMOKER) |
|
| 4.2 | Lift stowage compartment or ashtray housing (1) until electrical connector on front vehicle interior socket (X58/17x1) is accessible | MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) with CODE 279 (Electronic gear selector) without CODE 301 (Package SMOKER) |
|
| 5.1 | Disconnect electrical connector of cigarette lighter with front ashtray illumination (R3x1) | MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) with CODE 279 (Electronic gear selector) with CODE 301 (Package SMOKER) |
|
| 5.2 | Disconnect electrical connector on vehicle interior socket (X58/17x1) | MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) with CODE 279 (Electronic gear selector) without CODE 301 (Package SMOKER) |
|

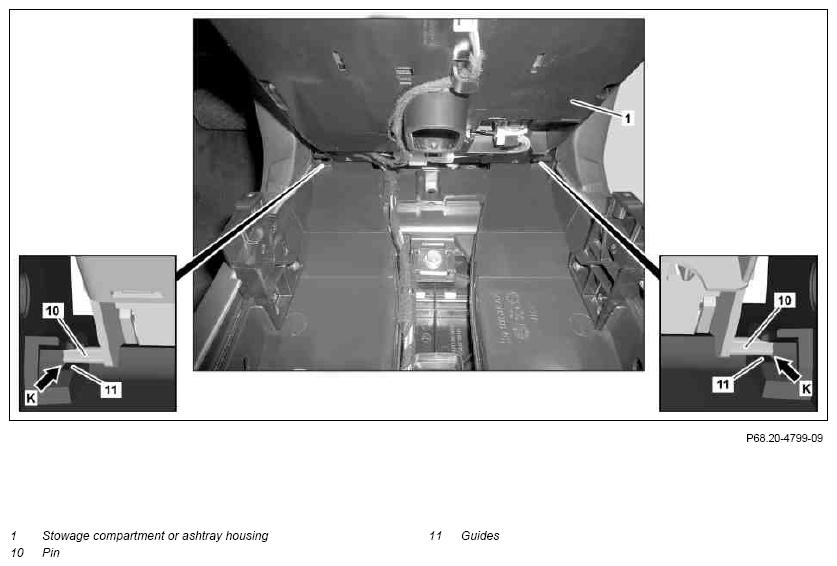

| 6 | Disconnect electrical connection (4) | ||
| 7 | Remove stowage compartment or ashtray housing (1) | ||

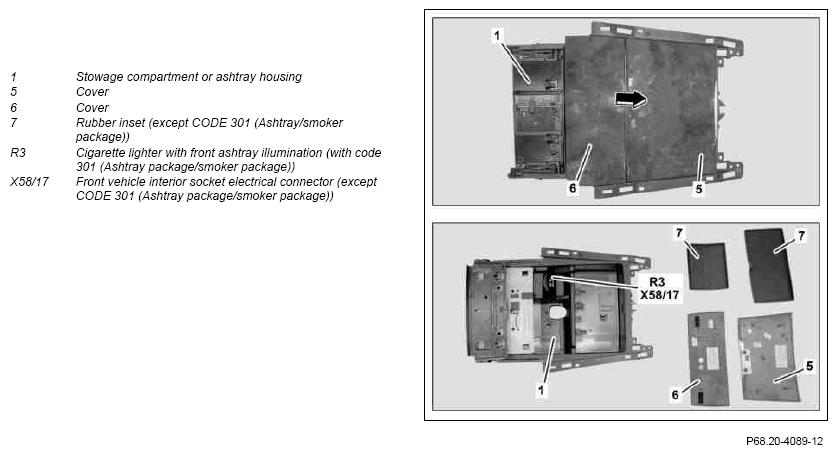

| 8 | Remove rubber inserts (7) | MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) with CODE 279 (Electronic gear selector) without CODE 301 (Package SMOKER) When replacing stowage compartment or ashtray housing (1). |
|
| 9 | Remove ashtray insert | MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) with CODE 279 (Electronic gear selector) with CODE 301 (Package SMOKER) When replacing stowage compartment or ashtray housing (1). |
|
| 10 | Remove cupholder (3) | MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) with CODE 279 (Electronic gear selector) with CODE 309 (Cup holder) When replacing stowage compartment or ashtray housing (1). |
|
| 11.1 | Remove cigarette lighter with front ashtray housing (R3) from ashtray housing (1) | When replacing stowage compartment or ashtray housing (1). | |
| MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) with CODE 279 (Electronic gear selector) with CODE 301 (Package SMOKER) |
AR54.10-P-0030EW | ||
| 11.2 | Remove front vehicle interior socket (X58/17) from ashtray housing (1) | When replacing stowage compartment or ashtray housing (1). | |
| MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) with CODE 279 (Electronic gear selector) without CODE 301 (Package SMOKER) |
AR54.10-P-1003EW | ||
| 12 | Do not completely unclip cover on stowage compartment or ashtray housing (1) and remove cover (5) in direction of arrow | When replacing stowage compartment or ashtray housing (1). |
|
| 13 | Unclip cover (6) in direction of arrow on stowage compartment or ashtray housing (1) and remove | When replacing stowage compartment or ashtray housing (1). |
|
| 14 | Install in the reverse order |
