Remove/install 12V socket at front of vehicle interior - AR54.10-P-1003EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 172.4, 218
MODEL 204.9 as of model year 2013
MODEL 212 with CODE 279 (Electronic gear selector)

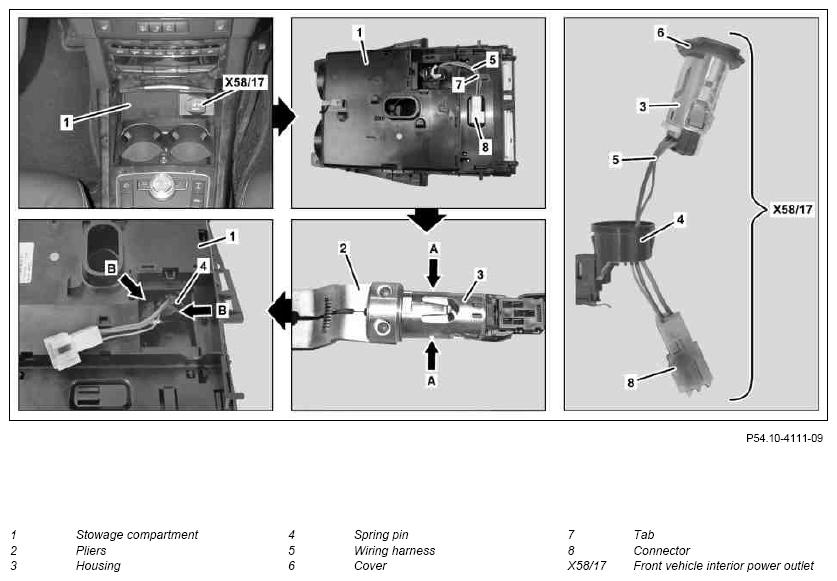

Shown on model 212

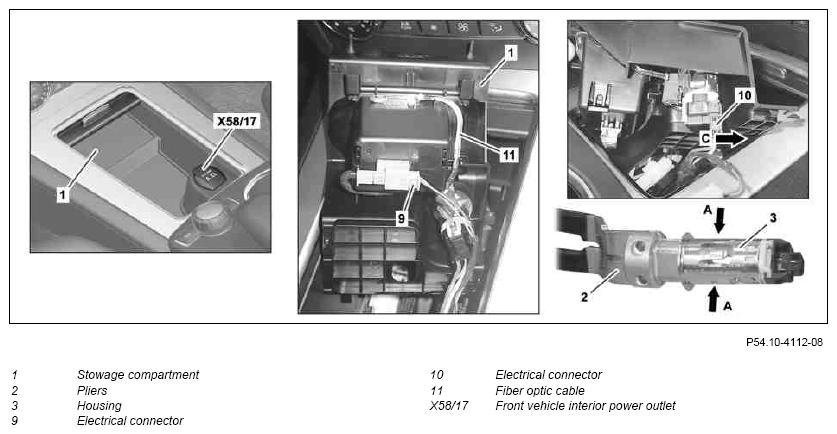

MODEL 204.9 as of model year 2013
| Remove/install | |||
| 1 | Remove cover for center console | MODEL 172.4 | |
| AR68.20-P-2000W | |||
| 2 | Remove storage compartment (1) | MODEL 172.4, 218 MODEL 204.9 as of model year 2013 MODEL 212 with CODE 279 (Electronic gear selector) |
|
| MODEL 212.0 (except 212.074/077), 212.1, 212.2 (except 212.274/277) with CODE 279 (Electronic gear selector) |
AR68.20-P-2420EW | ||
| MODEL 218 | AR68.20-P-2420EL | ||
| 3 | Disconnect electrical connector (9) | MODEL 204.9 as of model year 2013 |
|
| 4 | Detach electrical connection (10) in direction of arrow (arrow C) | MODEL 204.9 as of model year 2013 |
|
| 5 | Detach connector (8) on stowage compartment (1) and unhook associated wiring harness (5) from the clip (7) | MODEL 172.4, 218 MODEL 212 with CODE 279 (Electronic gear selector) |
|
| 6 | Open cover on stowage compartment (1) | MODEL 172.4, 218 MODEL 212 with CODE 279 (Electronic gear selector) |
|
| 7 | Open the cover (6) | ||
| 8 | Insert pliers (2) into the housing (3) and pull the housing (3) approx. 5 cm out of the spring pin (4) | ||
| Figure | |||
| 9 | Unclip optical fiber (11) on stowage compartment (1) | MODEL 204.9 as of model year 2013 |
|
| 10 | Unclip spring pin (4) from stowage compartment (1) by pushing back catch hook (arrows B) and remove front vehicle interior socket (X58/17) together with housing (3) and spring pin (4) | ||
| 11 | Install in the reverse order |
