Remove/install headliner - AR68.30-P-4300EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/1
Shown with CODE (413) Panorama sliding roof
| Remove/install | |||
| 1.1 | Open panoramic sliding roof | On vehicles with code (413) Panoramic sliding roof | |
| 1.2 | Open tilting/sliding roof | On vehicles with code (414) Power glass tilting/sliding roof | |
| 2 | Remove right rear door sill molding | AR68.30-P-4100EW | |
| 3 | Completely remove edge guard (14) on door cutout of right rear door | ||
| 4.1 | Remove rear seat backrest | On vehicles with code (882) Interior monitoring (with ATA only) and without code (287) Through-loading feature or without code (224) Design individual rear seat system |
AR91.12-P-1620CW |
| 4.2 | Remove rear seat backrest | On vehicles with code (882) Interior monitoring (with ATA only) and with code (224) Design individual rear seat system | AR91.12-P-1620EW |
| 4.3 | Remove side upholstery | On vehicles with code (882) Interior monitoring (with ATA only) and with code (287) Through-loading feature | AR91.12-P-1710CW |
| 5 | Detach bottom paneling on left B-pillar so that top paneling can be removed | ||
| 6 | Remove top paneling from left B-pillar | ||
| 7 | Remove bottom paneling and top paneling from right B-pillar | ||
| 8 | Remove left and right C-pillar paneling (4) | AR68.30-P-4490EW | |

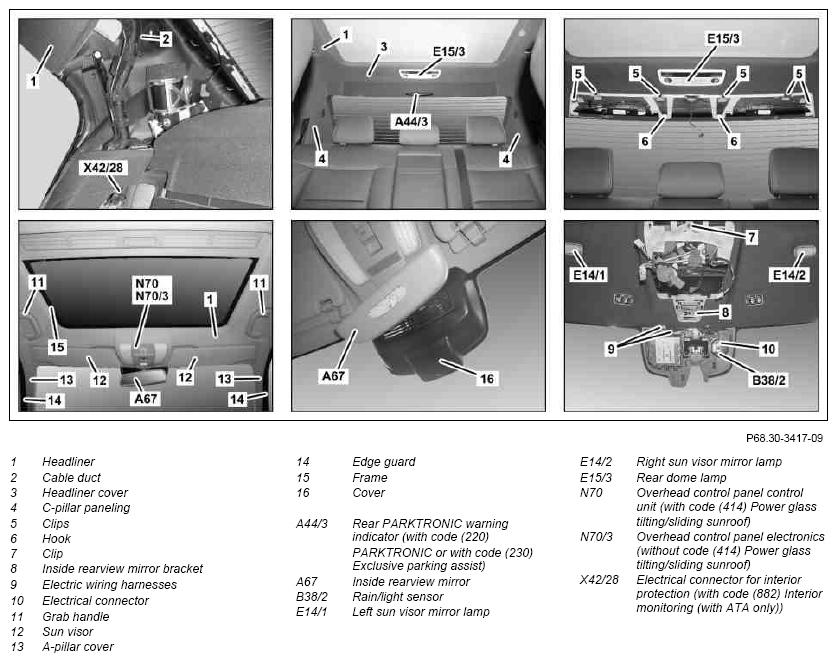

| 9 | Detach remaining edge guards (14) in area of headliner (1) | ||
| 10 | Open cable duct (2), disconnect electrical connector on interior protection (X42/28) and expose wiring harness on headliner and sliding roof (18) from cable duct (2) | On vehicles with code (882) Interior monitoring (with ATA only) | |
| 11 | Unclip headliner cover (3) and remove | ||
| 12 | Remove rear dome lamp (E15/3) | Only when replacing headliner (1). | |
| 13 | Unclip clips (5) from headliner (1) | ||
| 14 | Remove roller sun blind (12) from counterbearing | ||
| 15 | Remove overhead control panel control unit (N70) or overhead control panel electronics (N70/3) | AR82.20-P-1000CW | |
| 16 | Remove left sun visor mirror lamp (E14/1) and right sun visor mirror lamp (E14/2) | Only when replacing headliner (1). | |
| 17 | Remove inside rearview mirror (A67) | ||
| 18 | Unclip and remove cover (16) | ||
| 19 | Disconnect electrical connector (10) from rain/light sensor (B38/2) | ||
| 20 | Remove inside rearview mirror bracket (8) | ||
| 21 | Remove clip (7) | ||
| 22 | Remove grab handles (11) on roof | ||

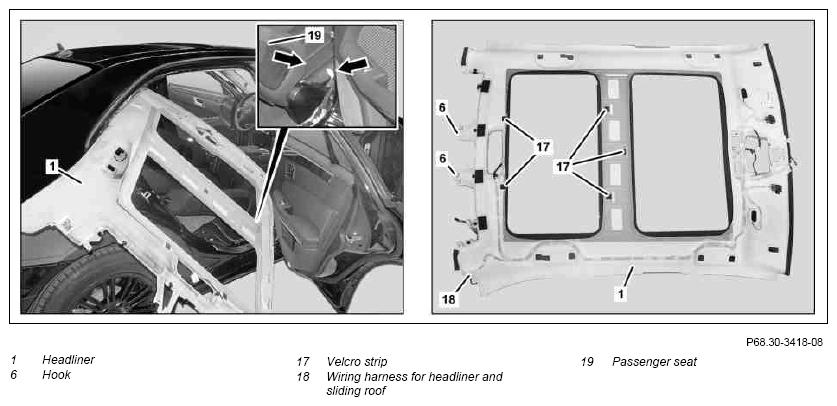

| 23 | Move driver and passenger seat (19) toward rear and position backrest downward so that largest possible gap (arrows) is present between passenger seat and B-pillar | ||
| 24 | Detach headliner (1) on Velcro strips (17) from roof paneling | ||
| 25 | Unhook headliner (1) from frame (15) of sliding roof and panoramic roof | On vehicles with code (413) Panorama sliding roof or code (414) Power glass tilting/sliding roof | |
| 26 | Slide headliner (1) toward rear until hooks (6) disengage from mounts on roof paneling. Then lay headliner (1) down on seats | ||
| 27 | Arch headliner (1) at front and rear with aid of helper, then align headliner in vehicle so that headliner (1) can be moved out of rear door cutout toward rear. | ||
| 28 | Guide headliner (1) through gap (arrows) toward rear out of right rear door cutout. Always keep headliner (1) arched. | ||
| 29 | Install in the reverse order |
