Remove/install and disassemble rear shelf - AR68.30-P-4580EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/1
MODIFICATION NOTES
| 8.12.10 | Remove rear window, on vehicles with code (Z04) Light armoring added | Operation step 4 | AR67.20-P-2000EG |
Shown with code (540) Electric rear window roller blind
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove rear seat backrest | MODEL 212.0/1 without CODE 224 (Rear individual seat design) without CODE 287 (Through-loading feature) |
|
| AR91.12-P-1620CW | |||
| 1.2 | Remove rear seat backrest | MODEL 212.0/1 with CODE 224 (Rear individual seat design) |
|
| AR91.12-P-1620EW | |||
| 1.3 | Remove side upholstery | MODEL 212.0 with CODE 287 (Through-loading feature) |
|
| AR91.12-P-1710CW | |||
| 2 | Unscrew bolt (6) and remove belt end fitting from center seat belt (2) | ||
| 3 | Loosen paneling on left and right C-pillar and lay down to side with seat belts installed | AR68.30-P-4490EW | |
| 4 | Remove rear wall window | MODEL 212.0 with CODE Z04 (Light armoring) |
|
| AR67.20-P-2000EG | |||
| 5 | Remove rubber from left and right expansion clip (5) and remove expansion clips (5) | ||
| 6 | Remove clips (4) | MODEL 212.0/1 with CODE 540 (Electric roller blind for rear window) |
|
| 7.1 | Pull rear shelf (1) toward front out of guides (7) | MODEL 212.0/1 without CODE 540 (Electric roller blind for rear window) |
|
| 7.2 | Pull rear shelf (1) toward front out of guides (9) and guide (arrow) | MODEL 212.0/1 with CODE 540 (Electric roller blind for rear window) |
|
| 8 | Lift rear shelf (1) and disconnect electrical connector on center brake lamp (E21x1) | MODEL 212.0/1 without CODE 540 (Electric roller blind for rear window) |
|
| 9 | Unclip frame (8) from rear shelf (1), guide center seat belt (2) through opening in rear shelf (1) and remove rear shelf (1) | ||

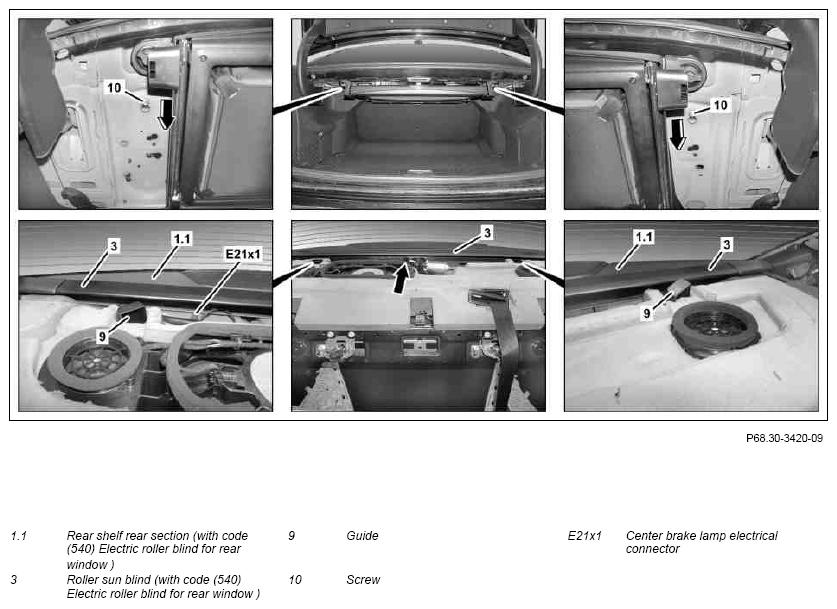

| 10 | Turn guides (9) 45° counterclockwise and remove | MODEL 212.0/1 with CODE 540 (Electric roller blind for rear window) |
|
| 11 | Loosen bolts (10) in trunk, push roller sun blind (3) in direction of arrow and guide bolts (10) out of holes | MODEL 212.0/1 with CODE 540 (Electric roller blind for rear window) |
|
| 12 | Disconnect electrical connector on rear window roller sun blind motor (X193) and remove rear shelf rear section (1.1) with roller sun blind (3) until center brake lamp electrical connector (E21x1) is accessible | MODEL 212.0/1 with CODE 540 (Electric roller blind for rear window) |
|
| 13 | Disconnect center brake lamp electrical connector (E21x1) and remove rear shelf rear section (1.1) with roller sun blind (3) | MODEL 212.0/1 with CODE 540 (Electric roller blind for rear window) |
|
| 14 | Install in the reverse order | ||
| Disassemble/assemble | |||
| 15 | Remove roller sun blind (3) from rear shelf rear section (1.1) | ||
| 16 | Unclip center brake lamp cover (11) from rear shelf rear section (1.1) or rear shelf (1) and remove | ||
| 17 | Unclip loudspeaker cover (14) and top tether cover (13) from rear shelf (1) and remove | ||
| 18 | Assemble in the reverse order |
