Remove/Install exhaust gas recirculation - AR14.20-P-1050ELS
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.8 in MODEL 207, 212, 218 with CODE 920 (Direct petrol injection with stratified charging)
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Remove upper engine cover | ||

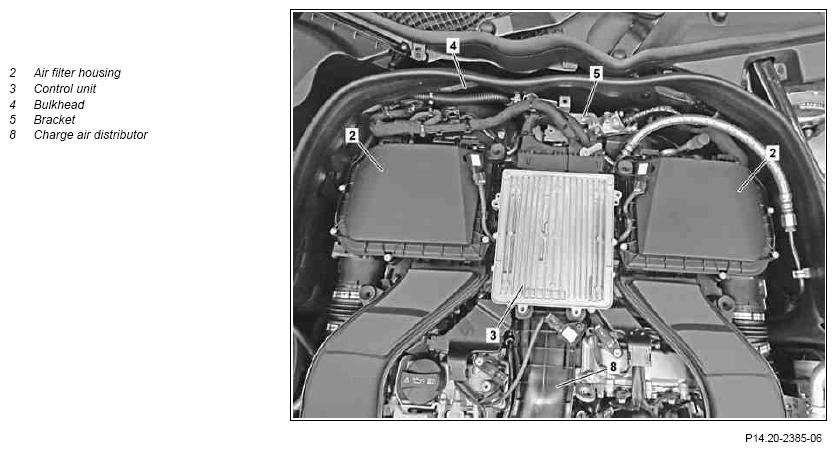

| 2 | Remove air filter housing (2) on the left and right | AR09.10-P-1150ELS | |
| 3 | Remove control unit (3) | AR07.08-P-7008ELS | |
| 4 | Remove center section of the bulkhead (4) | ENGINE 276.8 in MODEL 207, 212, 218 with CODE 920 (Direct petrol injection with stratified charging) | |
| ENGINE 276.8 in MODEL 212 with CODE 920 (Direct petrol injection with stratified charging) | AR61.25-P-6600EW | ||
| 5 | Remove bracket (5) for fuel injection system control unit cable duct (3) | ||
| 6 | Detach heat shield (10) for EGR (1) | ||
| 7 | Remove screw/bolts (12) and take off EGR (1) at exhaust gas recirculation valve (7) | AR14.20-P-7662ELS | |
| 8 | Remove screw/bolts (11) and take off EGR (1) at charge air distributor (8) | AR09.41-P-1310ELS | |
| 9 | Remove screw/bolts (9) | *BA14.20-P-1009-01M | |
| 10 | Remove EGR (1) upwards | ||
| 11 | Install in the reverse order |
EXHAUST GAS RECIRCULATION
| Number | Designation | ENGINE 276.8 | |
|---|---|---|---|
| BA14.20-P-1009-01M | Screw/bolt, exhaust gas recirculation cooler/Y-pipe to bracket | Nm | 9 |
