Overview of exterior lights system components - GF82.10-P-9998FLM
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 as of model year 2014
Shown on model 212.0

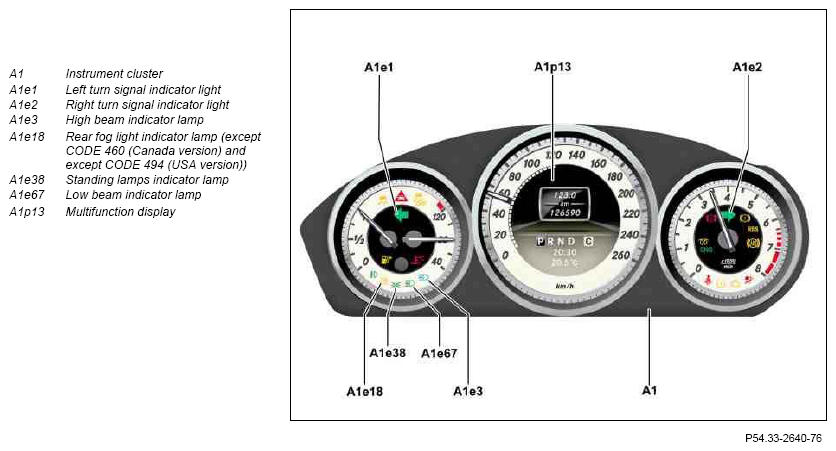

Displays in instrument cluster
The following components in the instrument cluster sending functional feedback are not shown here:
- Warning buzzer (A1h1)
- Function check of turn signal lights, acoustic (A1h2)
Front lamp unit (partial LED version) (without CODE 640 (Dynamic SAE right-hand traffic LED headlamp) and without CODE 641 (Dynamic left-hand traffic LED headlamp) and without CODE 642 (Dynamic right-hand traffic LED headlamp))
The following components are not shown:
- Left headlamp range adjustment actuator motor (E1m1)
- Fan motor 1 for left front lamp unit (E1m4)
- Right headlamp range adjustment actuator motor (E2m1)
- Fan motor 1 for right front lamp unit (E2m4)
Front lamp unit (full LED version) (with CODE 640 (Dynamic SAE right-hand traffic LED headlamp) or CODE 641 (Dynamic left-hand traffic LED headlamp) or CODE 642 (Dynamic right-hand traffic LED headlamp))
The following components are not shown:
- Left headlamp range adjustment actuator motor (E1m1)
- Left active curve illumination actuator motor (E1m2)
- Left light distribution actuator motor (E1m3) (with CODE 641 (Dynamic left-hand traffic LED headlamp) or CODE 642 (Dynamic right-hand traffic LED headlamp))
- Fan motor 1 for left front lamp unit (E1m4)
- Fan motor 2 for left front lamp unit (E1m5)
- Right headlamp range adjustment actuator motor (E2m1)
- Right active curve illumination actuator motor (E2m2)
- Right light distribution actuator motor (E2m3) (with CODE 641 (Dynamic left-hand traffic LED headlamp) or CODE 642 (Dynamic right-hand traffic LED headlamp))
- Fan motor 1 for right front lamp unit (E2m4)
- Fan motor 2 for right front lamp unit (E2m5)
Rear lamp unit, shown on model 212.0
| Component description for instrument cluster | A1 | GF54.30-P-6000FL | |
| Component description for multifunction camera | MODEL 212 as of model year 2014 with CODE 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+)) A40/11, A40/13 |
GF54.21-P-3300FL | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810FL | |
| Actuation module, LED exterior lighting, front, component description | MODEL 212 as of model year 2014 with CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) without CODE 641 (Headlamps, LED, dynamic, left-side traffic) without CODE 642 (Headlamps, LED, dynamic, right-side traffic) MODEL 212 as of model year 2014 with CODE 641 (Headlamps, LED, dynamic, left-side traffic) without CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) without CODE 642 (Headlamps, LED, dynamic, right-side traffic) MODEL 212 as of model year 2014 with CODE 642 (Headlamps, LED, dynamic, right-side traffic) without CODE 640 (Headlamps, LED, dynamic, SAE, right-side traffic) without CODE 641 (Headlamps, LED, dynamic, left-side traffic) E1n7, E2n7 |
GF82.10-P-2160FLM | |
| Headlamp control unit, component description | E1n9, E2n9 | GF82.10-P-2020FLM | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FL | |
| Component description for CDI control unit | MODEL 212 with ENGINE 642.8 as of model year 2014 N3/9 | GF07.16-P-6000OG | |
| MODEL 212 (except 212.098/298) with ENGINE 651.9 as of model year 2014 Delphi N3/9 |
GF07.16-P-6000OM | ||
| MODEL 212 (except 212.098/298) with ENGINE 651.9 as of 9/1/13 as of model year 2014 with CODE 494 (US version) Bosch N3/9 |
GF07.16-P-6000OMD | ||
| MODEL 212.098/298 with ENGINE 651.924 as of model year 2014 N3/9 | GF07.16-P-6000OLI | ||
| Component description for ME-SFI (ME) control unit | MODEL 212 with ENGINE 157.9 as of model year 2014 MODEL 212 with ENGINE 278.9 as of model year 2014 N3/10 |
GF07.61-P-6000MMA | |
| MODEL 212 with ENGINE 271.8 as of model year 2014 N3/10 | GF07.61-P-6000MG | ||
| MODEL 212 with ENGINE 272.9 (except 272.983) as of model year 2014 N3/10 |
GF07.61-P-6000MI | ||
| MODEL 212 with ENGINE 274.9 as of model year 2014 without CODE 924 (Bivalent natural gas drive) N3/10 | GF07.61-P-6000MRB | ||
| MODEL 212 with ENGINE 274.9 as of model year 2014 with CODE 924 (Bivalent natural gas drive) N3/10 |
GF07.61-P-6000MRC | ||
| MODEL 212 with ENGINE 276.8 as of model year 2014 N3/10 | GF07.61-P-6000MMP | ||
| MODEL 212 (except 212.095) with ENGINE 276.9 as of model year 2014 N3/10 | GF07.61-P-6000MM | ||
| MODEL 212.095 with ENGINE 276.9 as of model year 2014 N3/10 | GF07.61-P-6000MMO | ||
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FL | |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FL | |
| Component description for trailer recognition control unit | MODEL 212 as of model year 2014 with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050FL | |
| Component description for Electronic Stability Program control unit | MODEL 212 (except 212.095/098/298) as of model year 2014 N304, N307 |
GF42.45-P-5119FLM | |
| Component description for regenerative braking system control unit | MODEL 212.095/098/298 as of model year 2014 N30/6 | GF42.22-P-1100FLM | |
| AIRmatic control unit, component description | MODEL 212 as of model year 2014 with CODE 488 (Steel/air suspension) without CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) MODEL 212 as of model year 2014 with CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) without CODE 488 (Steel/air suspension) N51/3 |
GF32.22-P-5109FLM | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FL | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FL | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FL | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FL | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FL | |
| Component description for chassis gateway control unit | MODEL 212 as of model year 2014 with CODE 23P (Driving Assistance package Plus) N93/7 |
GF54.21-P-1010FLM | |
| Rear axle level control system control unit, component description | MODEL 212.2 as of model year 2014 without CODE 488 (Steel/air suspension) without CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) N97 |
GF32.33-P-3400FLM | |
| Component description for fully integrated transmission control unit | MODEL 212 with TRANSMISSION 722.9 (except 722.930/931) as of model year 2014 Y38n4 |
GF27.60-P-5165AHL | |
| MODEL 212 with TRANSMISSION 722.931 as of model year 2014 Y38n4 | GF27.60-P-5165AHX | ||
| MODEL 212 with TRANSMISSION 724.2 as of model year 2014 Y38n4 | GF27.60-P-5165AHO | ||
| MODEL 212 with TRANSMISSION 725.0 as of model year 2014 Y38n4 | GF27.60-P-5165ANA | ||
| Table of contents for function description of exterior lights | GF82.10-P-0999FLM |
