Rear axle level control system control unit, component description - GF32.33-P-3400FLM

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212.2 as of model year 2014 without CODE 488 (Steel/air suspension) without CODE 489 (AIRMATIC (air suspension with continuous damper adjustment))

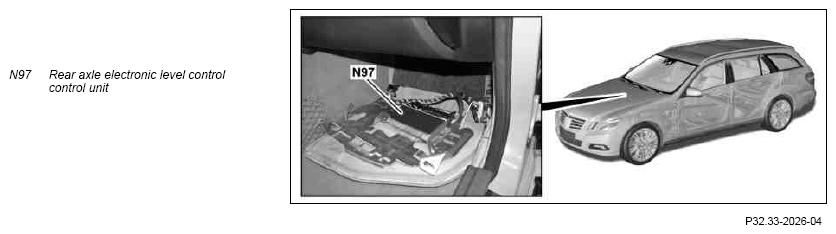

Illustration shows front passenger footwell

Fig 1: Rear Axle Electronic Level Control Control Unit - Model 212.2

Courtesy of MERCEDES-BENZ USA

Location

The electronic rear-axle level control system control unit is located below the footwell plate on the passenger-side.

Task

The electronic rear-axle level control system control unit is responsible for the following:

Reading in of sensors, pickups and signals
Evaluation of input factors
Actuation of components

Reading in of sensors, pickups and signals

The input factors are read in via the following connections:

Direct line
Chassis CAN (CAN E1)

Direct line

The signals from the following components are read via a direct line:

Left rear level sensor (B22/7)
Right rear level sensor (B22/10)

Chassis CAN

The electronic rear-axle level control system control unit reads in the following information via chassis CAN 1:

Wake-up signal, from front SAM control unit with fuse and relay module (N10/1)
Wheel speeds of front wheels, from Electronic Stability Program control unit (N30/4) (except CODE 233 (DISTRONIC PLUS), except CODE 990 (AMG vehicles), except hybrid) or from Premium Electronic Stability Program control unit (N30/7) (with CODE 233 (DISTRONIC PLUS) or with CODE 990 (AMG vehicles), except hybrid) or from regenerative braking system control unit (N30/6) (with hybrid)
Rotation angle, recorded by steering angle sensor (N49) and provided by steering column tube module control unit (N80)
Atmospheric pressure and intake air temperature, from CDI control unit (N3/9) (with diesel engine) or from ME-SFI control unit (N3/10) (with gasoline engine)

Evaluation of input factors

The input factors are evaluated by the microprocessor and the corresponding components are actuated.

Actuation of components

Components are actuated with the following connection:

Direct line

Direct line

The following components are actuated via direct lines:

AIRmatic relay (K67) for actuating AIRmatic compressor (A9/1) with following components:
Compressor (A9/1m1)
AIRmatic pressure reduction valve (A9/1y1)
Electronic level control system level control valve (Y36/8)

Wiring diagram for level control system control unit

PE32.22-P-2101-97DAA
