Removing, installing windowbag - AR91.60-P-0693EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.0/1/2, 218.3
Shown on left side of vehicle on model 212.0
Shown on model 212.2
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Note on functional reliability of windowbag | AH91.60-P-0693-01A | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| 1 | Open panoramic roof | On vehicles with code (413) Panoramic sliding roof | |
| 2 | Open tilting/sliding roof | On vehicles with code (414) Power glass tilting/sliding roof | |
| 3 | Switch off ignition and remove transmitter key or KEYLESS-GO start/stop button from electronic ignition lock control unit | ||
| 4.1 | Loosen headliner until windowbag unit (1) can be removed | MODEL 212.0/1 | |
| AR68.30-P-4300EW | |||
| 4.2 | Loosen headliner until windowbag unit (1) can be removed | MODEL 218.3 | |
| 4.3 | Remove headliner | Model 212.2 | |
| 5 | Disconnect ground line of battery | Disconnect/connect battery ground line | AR54.10-P-0003EW |

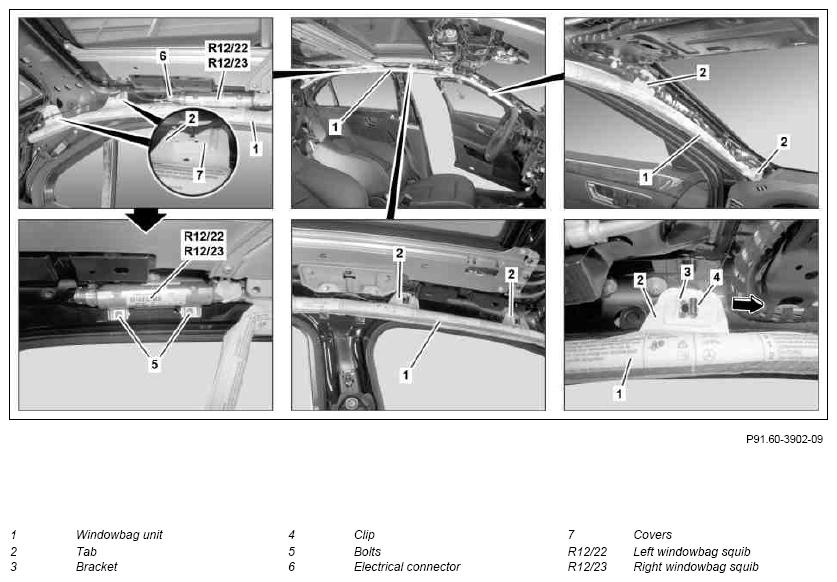

| 6 | Disconnect electrical connector (6) from left windowbag squib (R12/22) or right windowbag squib (R12/23) | ||
| 7 | Unclip covers (7) above brackets (3) on windowbag unit (1) and remove | ||
| 8 | Slightly lift clips (4) on brackets (3) on lugs (2) and release in direction of arrow | ||
| 9 | Unhook brackets (3) from mounts on roof | ||
| 10 | Remove bolts (5) | *BA91.60-P-1006-01M | |

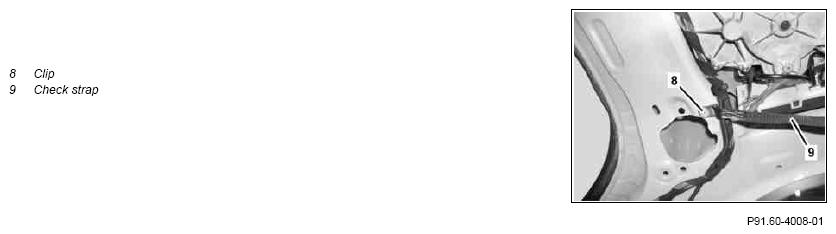

| 11 | Unclip clip (8) of check strap (9) at roof paneling | Model 212.2 |
|
| 12 | Remove windowbag unit (1) | To avoid damaging the interior equipment. |
|
| 13 | Install in the reverse order | ||
| 14 | Check supplemental restraint system (SRS) with STAR DIAGNOSIS | After installing new windowbag unit (1). | |
| AD00.00-P-2000-04A |
AIRBAG
| Number | Designation | MODEL 212 | MODEL 218 | |
|---|---|---|---|---|
| BA91.60-P-1006-01M | Bolt/nut, windowbag unit to roof frame | Nm | 6 | 6 |
