Remove/install pedestrian protection sensor - AR91.60-P-0950EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212 up to model year 2014 with CODE U60 (Pedestrian protection) Sensors at front bumper

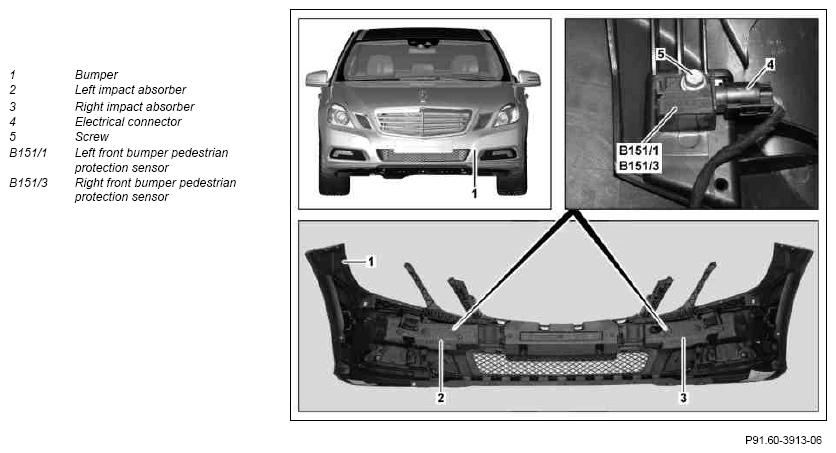

Shown on model 212
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003EW | |
| 2 | Remove bumper (1) | AR88.20-P-2000EW | |
| 3 | Remove left impact absorber (2) When removing left front bumper pedestrian protection sensor (B151/1). | ||
| 4 | Remove right impact absorber (3) | When removing right front bumper pedestrian protection sensor (B151/3). | |
| 5 | Disconnect electrical connector (4) at left front bumper pedestrian protection sensor (B151/1) or at right front bumper pedestrian protection sensor (B151/3) | ||
| 6 | Remove screw/bolt (5) at left front bumper pedestrian protection sensor (B151/1) or at right front bumper pedestrian protection sensor (B151/3) | *BA91.60-P-1012-01M | |
| 7 | Remove left front bumper pedestrian protection sensor (B151/1) or right front bumper pedestrian protection sensor (B151/3) | ||
| 8 | Install in the reverse order |
AIRBAG
| Number | Designation | MODEL 212 | |
|---|---|---|---|
| BA91.60-P-1012-01M | Bolt, frontal acceleration sensor to bumper | Nm | 4 |
