Remove/install front seat sidebag unit - AR91.60-P-0695CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204.0 (except 204.077), 204.2 (except 204.277), 204.9
MODEL 212
MODEL 218
Shown with model 204.0
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||

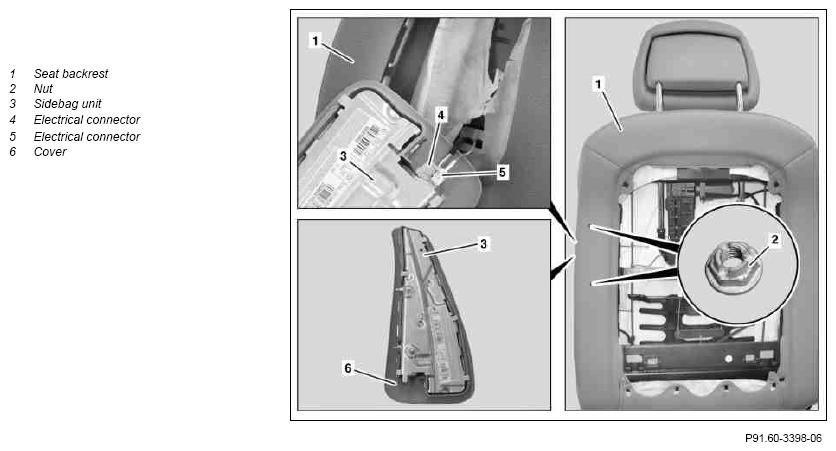

| 1 | Move left or right front seat forwards | ||
| 2 | Adjust backrest (1) toward front. | ||
| 3 | Disconnect battery ground line | MODEL 204.0 (except 204.077), 204.2 (except 204.277), 204.9 | AR54.10-P-0003CW |
| MODEL 212, 218 | AR54.10-P-0003EW | ||
| 4 | Remove seat-back lining at backrest (1) | AR91.10-P-1910CW | |
| 5 | Unscrew nuts (2) | *BA91.60-P-1008-01M | |
| 6 | Remove sidebag unit (3) | ||
| 7 | Disconnect electrical connectors (4, 5) | First connect electrical connector (5). To prevent inadvertent activation or malfunctions of the sidebag unit (3). |
|
| 8 | Remove sidebag unit (3) | ||
| 9 | Install in the reverse order | ||
| 10 | Check supplemental restraint system (SRS) with STAR DIAGNOSIS | After replacing sidebag unit (3). | |
| AD00.00-P-2000-04A |
AIRBAG
| Number | Designation | MODEL 204.0/2/9 | MODEL 212 | |
|---|---|---|---|---|
| BA91.60-P-1008-01M | Mount, sidebag unit to backrest frame | Nm | 6 | 6 |
AIRBAG
| Number | Designation | MODEL 218 | |
|---|---|---|---|
| BA91.60-P-1008-01M | Mount, sidebag unit to backrest frame | Nm | 6 |
