Remove/install front seat backrest seat-back lining - AR91.10-P-1910CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0/2/3/9 (except 204.077/277)

MODEL 207, 212, 218

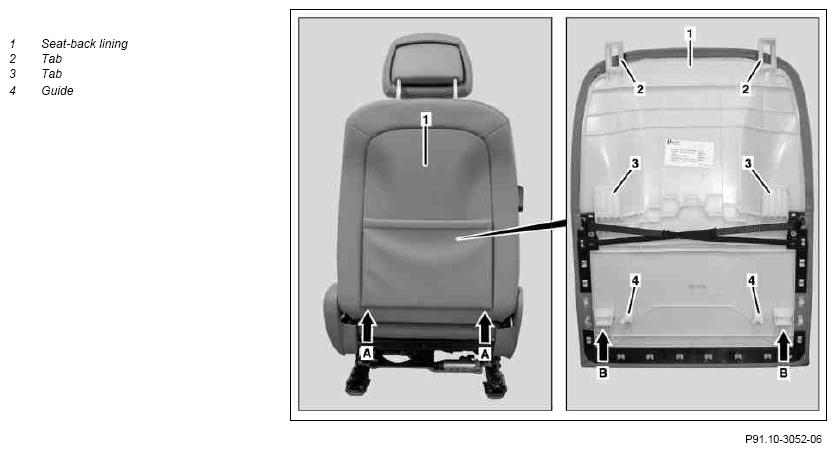

Model 204.0/2/9, 212, 218, shown with front seat removed

Fig 1: Front Seat Backrest Seat-Back Lining Remove/Install Components - Model 204.0/2/9

Courtesy of MERCEDES-BENZ USA

Model 207, 204.3 shown with front seat removed

Fig 2: Front Seat Backrest Seat-Back Lining Remove/Install Components - Model 207

Courtesy of MERCEDES-BENZ USA

	Remove/install
1.1	Adjust left or right front seat forward and move backrest into upright position	Model 204.0/2/9, 212, 218
1.2	Move left or right front seat downwards and forward, move armrest forward	Model 204.3, 207
2	Remove bolts (6)	Model 204.3, 207
3	Pull seat-back lining (1) at the bottom (arrows A) far enough out to enable a screwdriver to lift the catch hooks (arrows B)	Model 204.0/2/9, 212, 218 When removing seat-back lining (1), ensure that catch hooks (arrows B) are not damaged.
4	Release catch hooks (arrows B) and pull seat-back lining (1) at the bottom out of the backrest frame until the seat-back lining (1) can be removed downwards	Model 204.0/2/9, 212, 218
5	Remove seat-back lining (1) downwards	In model 204.0/2/9, 212, 218 ensure that tabs (2, 3) and guides (4) are seated correctly in backrest frame. In model 204.3, 207, ensure that tabs (2, 3, 5) are seated correctly in front seat backrest cover.
6	Install in the reverse order
