Remove/install front seat backrest - AR91.10-P-1060CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.0 (except 204.077), 204.2 (except 204.277), 204.3/9

MODEL 207

MODEL 212, 218

MODEL 463.242

Shown on model 204.0 with code (409) Left/right front multicontour seats and code (873) Seat heater for left and right front seat, left front seat

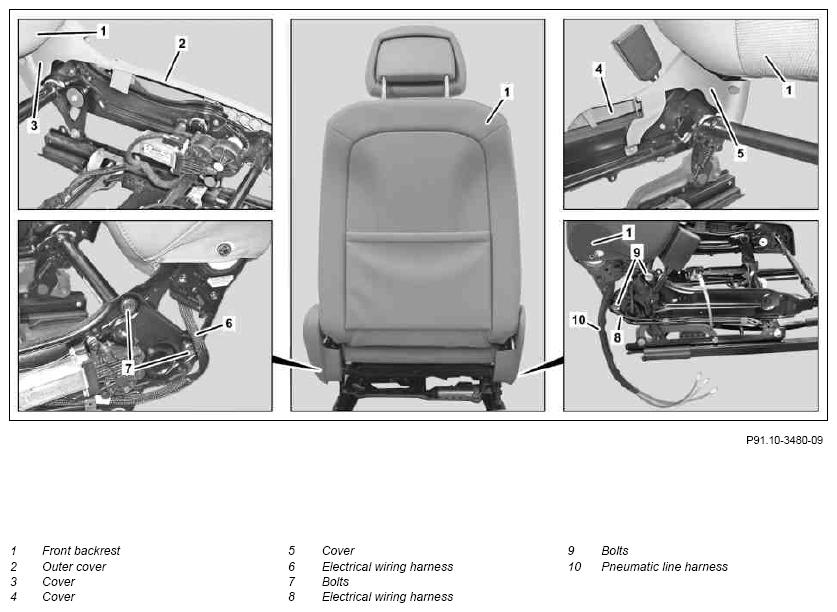

Fig 1: Front Seat Backrest Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove left or right front seat	MODEL 463.242 as of model year 2013/model refinement package 2012	AR91.10-P-1000GW
1	Remove left or right front seat	MODEL 204.0 (except 204.077), 204.2 (except 204.277), 204.3/9 MODEL 207 MODEL 212, 218	AR91.10-P-1000CW
2	Remove seat cushion	MODEL 463.242 as of model year 2013/model refinement package 2012	AR91.10-P-3310GW
2	Remove seat cushion	MODEL 204.0 (except 204.077), 204.2 (except 204.277), 204.3/9 MODEL 207 MODEL 212, 218	AR91.10-P-3310CW
3	Detach outer cover (2) from seat adjustment unit	MODEL 463.242 Outer cover/model refinement package 2012	AR91.10-P-1200GW
		MODEL 204.0 (except 204.077), 204.2 (except 204.277), 204.9 Outer cover	AR91.10-P-1200CY
		MODEL 204.3, 207 Outer cover	AR91.10-P-1200EC
		MODEL 212, 218 Outer cover	AR91.10-P-1200EW
4	Detach cover (3, 4, 5) from seat adjustment unit
5	Expose electrical wiring harness (6) at seat adjustment unit and remove from seat adjustment unit	Observe routing and attachment of electrical wiring harness (6) in seat adjustment unit.
6	Expose electrical wiring harness (8) at seat adjustment unit and remove from seat adjustment unit	On vehicles with code (873) Seat heater for right and left front seats Observe routing and attachment of electrical wiring harness (8).
7	Expose dynamic seat electrical wiring harness at seat adjustment unit	MODEL 212 with CODE 432 (Left and right dynamic multicontour seat) Observe routing and attachment of dynamic seat electrical wiring harness.
8	Expose pneumatic wiring harness (10) at seat adjustment unit	MODEL 204.0 (except 204.077), 204.2 (except 204.277), 204.3/9 with CODE 409 (Left/right front multicontour seat) MODEL 207 with CODE 409 (Left/right front multicontour seat) MODEL 212, 218 with CODE 409 (Left/right front multicontour seat) Observe routing and attachment of pneumatic wiring harness (10).
9	Remove screws (7, 9) from backrest fitting	MODEL 463.242	*BA91.10-P-1002-01E
9	Remove screws (7, 9) from backrest fitting	MODEL 204.0 (except 204.077), 204.2 (except 204.277), 204.3/9 MODEL 207 MODEL 212 MODEL 218	*BA91.10-P-1001-01Q
10	Remove front backrest (1)
11	Install in the reverse order

FRONT SEATS

Number	Designation		MODEL 204	MODEL 207
BA91.10-P-1001-01Q	Bolt at backrest fitting	Nm	40	40

FRONT SEATS

Number	Designation		MODEL 212	MODEL 218
BA91.10-P-1001-01Q	Bolt at backrest fitting	Nm	40	40

FRONT SEATS

Number	Designation		MODEL 463
BA91.10-P-1002-01E	Bolt, backrest to backrest fitting	Nm	35
