Remove/install engine hood lifter - AR91.60-P-0900EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.3, 207, 212 with CODE U60 (Pedestrian protection)

MODIFICATION NOTES

18.12.12	Nut/screw/bolt, engine hood lifter to engine hood hinge	MODEL 204	*BA91.60-P-1001-02A
18.12.12	Nut/screw/bolt, engine hood lifter to engine hood hinge	MODEL 207	*BA91.60-P-1001-02A
18.12.12	Nut/screw/bolt, engine hood lifter to engine hood hinge	MODEL 212	*BA91.60-P-1001-02A

Shown on model 212, on left side of vehicle

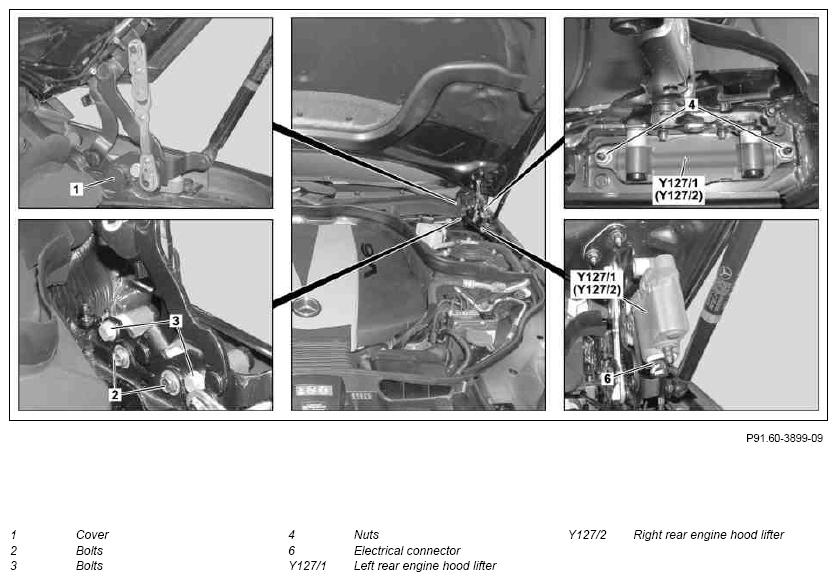

Fig 1: Engine Hood Lifter Remove/Install Components - Model 212 (Left Side)

Courtesy of MERCEDES-BENZ USA

Shown on model 212 at right side of vehicle

Fig 2: Engine Hood Lifter Remove/Install Components - Model 212 (Right Side)

Courtesy of MERCEDES-BENZ USA

Model 207, shown at left side of vehicle

Fig 3: Engine Hood Lifter Remove/Install Components - Model 207 (Left Side)

Courtesy of MERCEDES-BENZ USA

	Remove
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury from fingers being pinched or jammed when working on gas struts under pressure	Only remove and install pneumatic springs when they are not under tension and when the components are properly secured.	AS00.00-Z-0012-01A
	Note on working with and handling engine hood lifter		AH91.00-P-0008-01A
1	Disconnect ground line for on-board electrical system battery (G1)	MODEL 204.3 with CODE U60 (Pedestrian protection)	AR54.10-P-0003CW
1		MODEL 207, 212 with CODE U60 (Pedestrian protection)	AR54.10-P-0003EW
2	Take off cover (1)
3	Screw in bolts (2)	With screws/bolts (2), adjustment of engine hood hinge with removed left rear engine hood lifter (Y127/1) or right rear engine hood lifter (Y127/2) is prevented. Bolts must be size M8 X 16. With a thread length greater than 16 mm, left rear engine hood lifter (Y127/1) or right rear engine hood lifter (Y127/2) cannot be removed.
4	Remove screws/bolts (3)	Do not subject left rear engine hood lifter (Y127/1) or right rear engine hood lifter (Y127/2) to any blows or impacts and do not allow them to fall. Otherwise these must be replaced.
5	Unscrew nuts (4)
6	Remove left rear engine hood lifter (Y127/1) or right rear engine hood lifter (Y127/2)

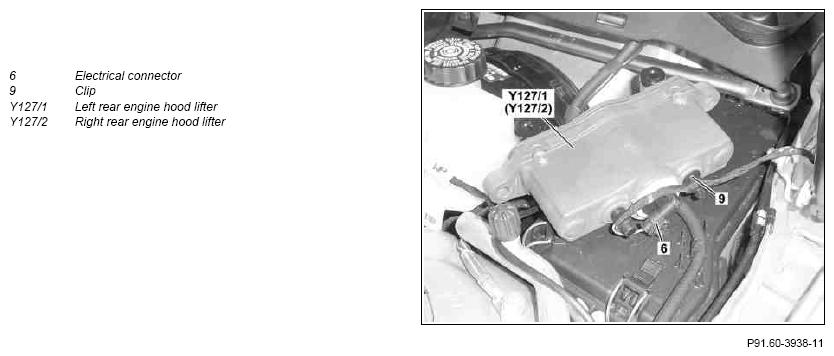

7	Disconnect electrical connector (6)
8	Unclip clip (9) at left rear engine hood lifter (Y127/1) or right rear engine hood lifter (Y127/2)	MODEL 204.3, 207 with CODE U60 (Pedestrian protection)
	Install
9	Plug in electrical connector (6)
10	Clip in clip (9) at left rear engine hood lifter (Y127/1) or right rear engine hood lifter (Y127/2)	MODEL 204.3, 207 with CODE U60 (Pedestrian protection)
11	Install left rear engine hood lifter (Y127/1) or right rear engine hood lifter (Y127/2)
12	Screw in bolts (3)	Nut/bolt, engine hood lifter to engine hood hinge	*BA91.60-P-1001-02A
13	Screw on nuts (4)	Nut/bolt, engine hood lifter to engine hood hinge	*BA91.60-P-1001-02A
14	Remove screws (2)
15	Fit on cover (1)
	Check

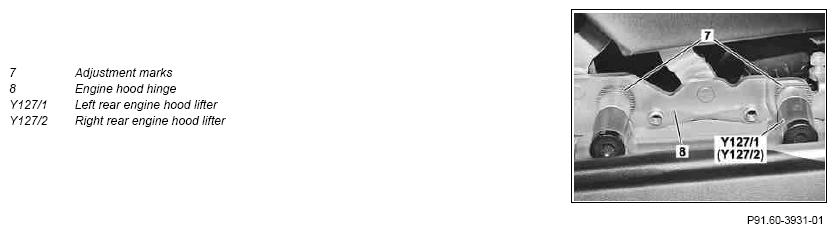

16	Check setting of engine hood hinge	Adjust engine hood The height difference between adjusting marks (7) at engine hood hinge (8) may be more than 3 lines in the factory. The height difference of the left rear engine hood lifters (Y127/1) or right rear engine hood lifters (Y127/2) must not exceed one line after setting.	AR88.40-P-3020EW
17	Connect ground line to on-board electrical system battery	MODEL 204.3 with CODE U60 (Pedestrian protection)	AR54.10-P-0003CW
17	Connect ground line to on-board electrical system battery	MODEL 207, 212 with CODE U60 (Pedestrian protection)	AR54.10-P-0003EW

ENGINE HOOD LIFTER

Number	Designation		MODEL 204	MODEL 207
BA91.60-P-1001-02A	Nut/bolt, engine hood lifter to engine hood hinge	Nm	25	25

ENGINE HOOD LIFTER

Number	Designation		MODEL 212
BA91.60-P-1001-02A	Nut/bolt, engine hood lifter to engine hood hinge	Nm	25
