Adjust engine hood - AR88.40-P-3020EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.3, 207, 212, 218

Shown on model 212 with CODE (U60) Pedestrian protection

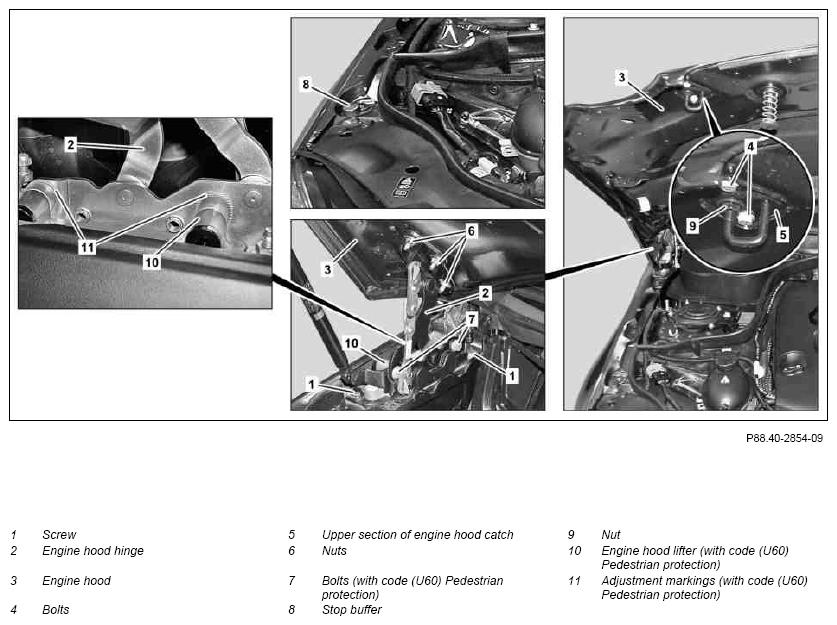

Fig 1: Engine Hood Components - Shown On Model 212 With Code U60
G09977905Courtesy of MERCEDES-BENZ USA

Engine hood hinge (without code (U60) Pedestrian protection)

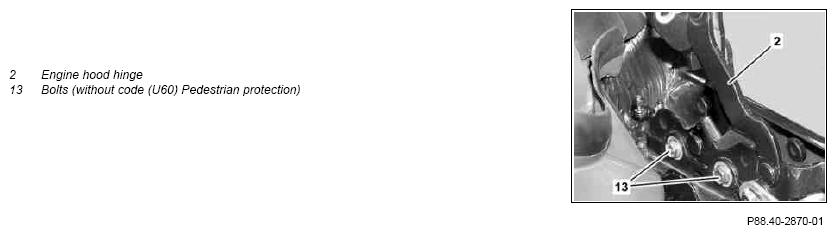

Fig 2: Engine Hood Hinge - Shown On Model 212 Without Code U60
G09977906Courtesy of MERCEDES-BENZ USA
  Adjustment in transverse direction
DANGER Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. No parts of the body or limbs should be within the operating area when the components are moving. AS00.00-Z-0011-01A
1 Loosen bolts (1) on left and right engine hood hinge (2) and adjust engine hood (3) in transverse direction. Model 204.3, 207 *BE60.00-P-1001-01W
MODEL 212 up to model year 2014 *BE60.00-P-1001-01U
MODEL 212 as of model year 2014 *BE60.00-P-1006-01U
MODEL 218 *BE60.00-P-1001-01O
SPECIAL TOOL Feeler gauge Figure
2 Tighten screws (1) TORQUE SPECIFICATION Attachment of hinge to body *BA88.40-P-1001-01N
  Adjust in longitudinal direction
3 Loosen bolts (4) on both engine hood lock top sections (5) IMPORTANT Loosen bolts (4) so that the engine hood lock top section (5) can be moved in the longitudinal direction for adjustment of engine hood (3).
4 Loosen nuts (6) on left or right engine hood hinge (2) and adjust engine hood (3) in longitudinal direction IMPORTANT Adjust left and right engine hood hinges (2) only one after another, otherwise the engine hood (3) lateral adjustment can be lost.
Model 204.3, 207 *BE60.00-P-1001-01W
MODEL 212 up to model year 2014 *BE60.00-P-1001-01U
MODEL 212 as of model year 2014 *BE60.00-P-1006-01U
MODEL 218 *BE60.00-P-1001-01O
SPECIAL TOOL Feeler gauge Figure
5 Tighten nuts (6) on both engine hood hinges (2) TORQUE SPECIFICATION Attachment of hinge to engine hood *BA88.40-P-1002-01N
6 Tighten bolts (4) on both engine hood lock top sections (5) TORQUE SPECIFICATION Bolt/nut, engine hood catch upper part to engine hood *BA88.40-P-1003-01N
  Adjust height at rear
7.1 Loosen bolts (7) on left or right engine hood hinge (2) and adjust height of engine hood (3). With CODE U60 (Pedestrian protection)
Model 204.3, 207 *BE60.00-P-1001-01W
MODEL 212 *BE60.00-P-1001-01U
SPECIAL TOOL Feeler gauge Figure
7.2 Loosen bolts (13) on left or right engine hood hinge (2) and adjust height of engine hood (3). Except CODE U60 (Pedestrian protection)
Model 204.3, 207 *BE60.00-P-1001-01W
MODEL 212 *BE60.00-P-1001-01U
MODEL 218 *BE60.00-P-1001-01O
SPECIAL TOOL Feeler gauge Figure
8.1 Tighten bolts (7) on left or right engine hood lock hinge (2) With CODE U60 (Pedestrian protection)
IMPORTANT The height difference between the adjusting marks (11) on the engine hood hinge (2) may be more than 3 increment marks at the factory.
IMPORTANT Installation: The engine hood lifter (10) must be aligned toward the adjustment marks (11) on the engine hood hinge (2). The height difference of the engine hood lifter (10) may not be more than one line.
8.2 Tighten bolts (13) on left or right engine hood lock hinge (2) Except CODE U60 (Pedestrian protection)
TORQUE SPECIFICATION Attachment of hinge upper part to hinge lower part *BA88.40-P-1008-01N
  Adjust height at front
9 Loosen left and right stop buffer (8) and screw all the way down
10 Adjust height of engine hood (3) with nut (9) on top section of left and right engine hood catch (5) MODEL 204.3, 207 *BE60.00-P-1001-01W
MODEL 212 up to model year 2014 *BE60.00-P-1001-01U
MODEL 212 as of model year 2014 *BE60.00-P-1006-01U
MODEL 218 *BE60.00-P-1001-01O
SPECIAL TOOL Feeler gauge Figure
11 Screw up left and right stop buffer (8) until engine hood (3) makes contact with stop buffers (8) when closed, then tighten left and right stop buffer (8). IMPORTANT Engine hood (3) is installed with slight distortion to prevent vibration.
12 Repair paint damage with touchup paint pen.
DANGER Risk of explosion and poisoning  caused by solvent vapors and gasses. Risk of injury  to skin and eyes when working with anticorrosion agents Never spray corrosion protection on flames or hot objects and keep well away from all potential sources of ignition. Use only in well-ventilated areas; wear respiratory protection. AS97.00-Z-0001-01A
13 Protect area around left or right engine hood hinge (2) against corrosion Teroson multi-wax spray, art. no. 119.48M *BR00.45-Z-1009-05A
TEST VALUES FOR GAP DIMENSIONS ON HOODS, DOORS AND LIDS

Number Designation MODEL 218.9 MODEL 218.3
BE60.00-P-1001-01O Gap dimension Engine hood to fender Dimension "A" mm 4, 0 (±1) 4, 0 (±1)
Engine hood to headlamp Dimension "B" mm 4, 0 (±1) 4, 0 (±1)
Engine hood to bumper Dimension "C" mm 4, 0 (±1) 4, 0 (±1)
Engine hood to A-pillar Dimension "Q" mm 4, 5 (±1) 4, 5 (±1)
Fender to headlamp Dimension "R" mm 4, 0 (±1) 4, 0 (±1)
Bumper to headlamp (circumferential) Dimension "S" mm 3, 5 (±1) 3, 5 (±1)
Mounting rail, bumper to engine hood Dimension "T" mm 7, 5 (+0, 5) 7, 5 (+0, 5)
Mounting rail, bumper to engine hood to engine hood Dimension "U" mm 1, 0 (±0, 5) 1, 0 (±0, 5)
Picture AR60.00-P-0700-01EL AR60.00-P-0700-01EL
CHECK VALUES FOR GAP DIMENSIONS

Number Designation MODEL 212.0/1 MODEL 212.2
BE60.00-P-1001-01U Gap dimension Engine hood to fender Dimension "A" mm 4 (±1) 4 (±1)
Engine hood to headlamp Dimension "B" mm 4 (±1) 4 (±1)
Engine hood to radiator grille Dimension "C" mm - -
Engine hood to bumper Dimension "D" mm 4, 5 (±1, 5) 4, 5 (±1, 5)
Engine hood to A-pillar Dimension "E" mm 4, 5 (±1, 5) 4, 5 (±1, 5)
Bumper to headlamp Dimension "F" mm 3, 5 (±1, 5) 3, 5 (±1, 5)
Picture AR60.00-P-0700-01EW AR60.00-P-0700-01EW
CHECK VALUES FOR GAPS

Number Designation MODEL 204.3 MODEL 207.3
BE60.00-P-1001-01W Gap dimension Engine hood to fender Dimension "A" mm 4 (±1) 4 (±1)
Engine hood to headlamp Dimension "B" mm 4 (±1) 4 (±1)
Engine hood to bumper Dimension "C" mm 6 (+1/-2) 6 (+1/-2)
Engine hood to A-pillar Dimension "D" mm 4, 5 (+2/-1) 4, 5 (+2/-1)
Bumper to headlamp pillar Dimension "E" mm 2, 5 (±1, 5) 2, 5 (±1, 5)
Picture AR60.00-P-0700-01CW AR60.00-P-0700-01EC
CHECK VALUES FOR GAPS

Number Designation MODEL 207.4
BE60.00-P-1001-01W Gap dimension Engine hood to fender Dimension "A" mm 4 (±1)
Engine hood to headlamp Dimension "B" mm 4 (±1)
Engine hood to bumper Dimension "C" mm 6 (+1/-2)
Engine hood to A-pillar Dimension "D" mm 4, 5 (+2/-1)
Bumper to headlamp Dimension "E" mm 2, 5 (±1, 5)
Picture AR60.00-P-0700-01E C
CHECK VALUES FOR GAP DIMENSIONS

Number Designation MODEL 212.0/1 MODEL 212.2
BE60.00-P-1006-01U Gap dimension Engine hood to headlamp Dimension "B1" mm 3, 5 (±1) 3, 5 (±1)
Engine hood to radiator grille/bumper Dimension "C1" mm 3, 5 (±1) 3, 5 (±1)
Offset: Engine hood to radiator grille/bumper Dimension "C2" mm 1 (-0, 5/+1) 1 (-0, 5/+1)
Bumper to headlamp, outside Dimension "F1" mm 2, 5 (±1, 5) 2, 5 (±1, 5)
Bumper to headlamp, bottom/inside outside Dimension "F2" mm 2 (-1/+1, 5) 2 (-1/+1, 5)
Picture AR60.00-P-0700-01EW AR60.00-P-0700-01EW
ENGINE HOOD

Number Designation MODEL 204 MODEL 207
BA88.40-P-1001-01N Attachment of hinge to body Nm 25 25
ENGINE HOOD

Number Designation MODEL 212 MODEL 218
BA88.40-P-1001-01N Attachment of hinge to body Nm 25 25
ENGINE HOOD

Number Designation MODEL 204 MODEL 207
BA88.40-P-1002-01N Attachment of hinge to engine hood Nm 12 10
ENGINE HOOD

Number Designation MODEL 212 MODEL 218
BA88.40-P-1002-01N Attachment of hinge to engine hood Nm 10 10
ENGINE HOOD

Number Designation MODEL 204 MODEL 207
BA88.40-P-1003-01N Bolt/nut, engine hood catch upper part to engine hood Nm 10 10
ENGINE HOOD

Number Designation MODEL 212 MODEL 218
BA88.40-P-1003-01N Bolt/nut, engine hood catch upper part to engine hood Nm 10 10
ENGINE HOOD

Number Designation MODEL 204 MODEL 207
BA88.40-P-1008-01N Attachment of hinge upper part to hinge lower part Nm 34 34
ENGINE HOOD

Number Designation MODEL 212 MODEL 218
BA88.40-P-1008-01N Attachment of hinge upper part to hinge lower part Nm 34 34
Fig 3: Identifying Feeler Gauge (129 589 03 21 00)
G09977907Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1009-05A Teroson multi-wax spray, art. no. 119.48M Henkel Loctite
