Remove/install driver kneebag - AR91.60-P-0200CW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 204, 207, 212, 218
MODIFICATION NOTES
| 19.10.12 | Work procedure completely revised. | ||
| 5.8.14 | Screw knee airbag to instrument panel (below the cover under instrument panel) | MODEL 212 | *BA91.60-P-1016-01M |
Shown with model 204.0
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||

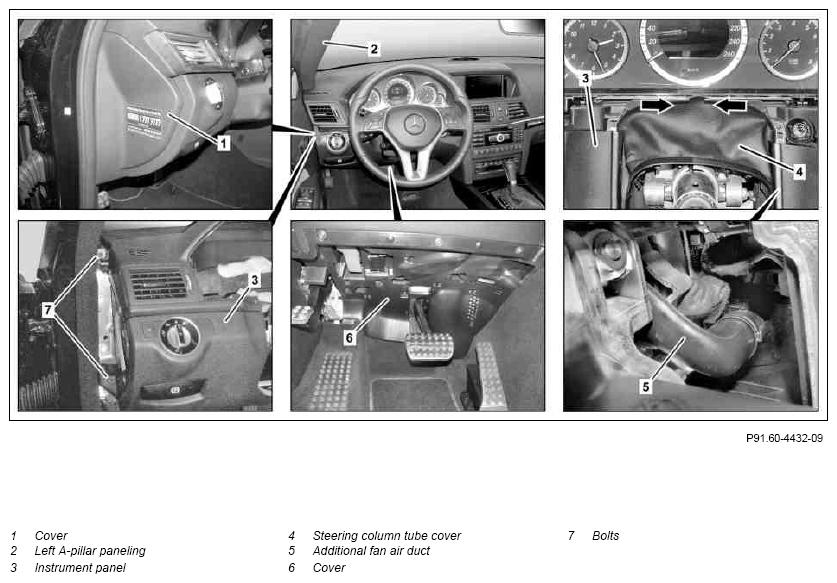

| 1 | Remove cover (1) | Fig 3 | |
| 2 | Remove left A-pillar paneling (2) | Fig 3 | |
| 3 | Remove instrument cluster | MODEL 218 | AR54.30-P-6015EL |
| MODEL 207, 212 | AR54.30-P-6015EW | ||
| MODEL 204.9 as of model year 2013 |
AR54.30-P-6015CYA | ||
| MODEL 204.0/2/3 | AR54.30-P-6015CW | ||
| MODEL 204.9 up to model year 2013 |
AR54.30-P-6015CY | ||
| 4 | Disconnect battery ground line | MODEL 207, 212, 218 | AR54.10-P-0003EW |
| MODEL 204 | AR54.10-P-0003CW | ||
| 5 | Remove steering column tube module | MODEL 212, 218 | AR54.25-P-2802EW |
| MODEL 204, 207 | AR54.25-P-2802CW | ||
| 6 | Unclip steering column tube cover (4) in direction of arrow and remove | ||
| 7 | Release additional fan air duct (5) at the separating point and move to one side | If installed. | |
| 8 | Remove cover (6) | Rechargeable screwdriver, rechargeable drill | |
| 9 | Remove foam element in area of left bracket (12) | MODEL 204, 207, 212 | |

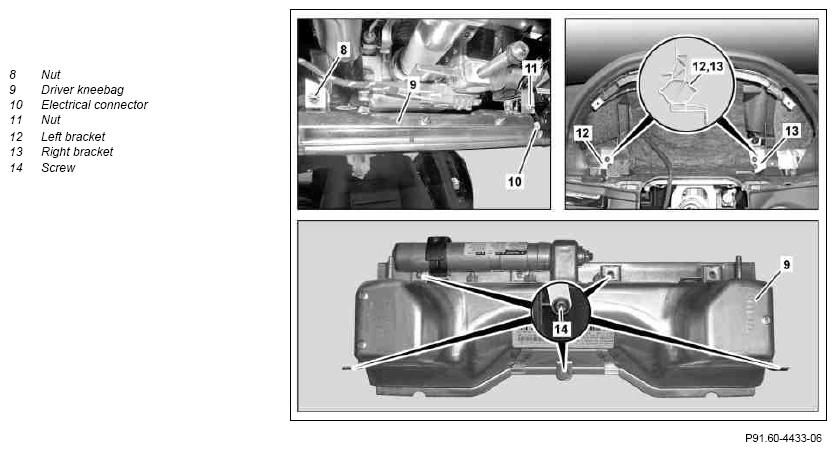

| 10 | Remove screw/bolts (7) | ||
| 11 | Unscrew nut (8) | *BA91.60-P-1003-01M | |
| 12 | Remove left bracket (12) | MODEL 207 | |
| 13 | Unscrew nut (11) and remove right bracket (13) | *BA91.60-P-1003-01M | |
| 14 | Remove screws/bolts (14) | *BA91.60-P-1016-01M | |
| 15 | Remove instrument panel (3) in the direction of the interior compartment with the aid of a helper, remove driver kneebag (9) from instrument panel (3) and guide into the footwell until the electrical connector(10) can be disconnected | ||
| 16 | Release electrical connector (10), disconnect, and remove driver kneebag (9) | ||
| 17 | Install in the reverse order | ||
| 18 | Connect STAR DIAGNOSIS and read out fault memory | After replacing the driver kneebag (9). | |
| AD00.00-P-2000-04A |
AIRBAG
| Number | Designation | MODEL 204.0/2/9 | MODEL 204.3 | |
|---|---|---|---|---|
| BA91.60-P-1003-01M | Nut, knee airbag to crossmember | Nm | 8 | 8 |
AIRBAG
| Number | Designation | MODEL 207 | MODEL 212 | |
|---|---|---|---|---|
| BA91.60-P-1003-01M | Nut, knee airbag to crossmember | Nm | 8 | 8 |
AIRBAG
| Number | Designation | MODEL 218 | |
|---|---|---|---|
| BA91.60-P-1003-01M | Nut, knee airbag to crossmember | Nm | 8 |
AIRBAG
| Number | Designation | MODEL 204.0/2/9 | MODEL 204.3 | |
|---|---|---|---|---|
| BA91.60-P-1016-01M | Screw/bolt, knee airbag to instrument panel (below cover under instrument panel) | Nm | 2 | 2 |
AIRBAG
| Number | Designation | MODEL 207 | MODEL 212 | |
|---|---|---|---|---|
| BA91.60-P-1016-01M | Screw/bolt, knee airbag to instrument panel (below cover under instrument panel) | Nm | 2 | 3, 9 |
AIRBAG
| Number | Designation | MODEL 218 | |
|---|---|---|---|
| BA91.60-P-1016-01M | Screw/bolt, knee airbag to instrument panel (below cover under instrument panel) | Nm | 3, 3 |
