Remove/install airbag, sidebag and emergency tensioning retractor control unit - AR91.60-P-0623EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212, 218
Shown on model 212.0

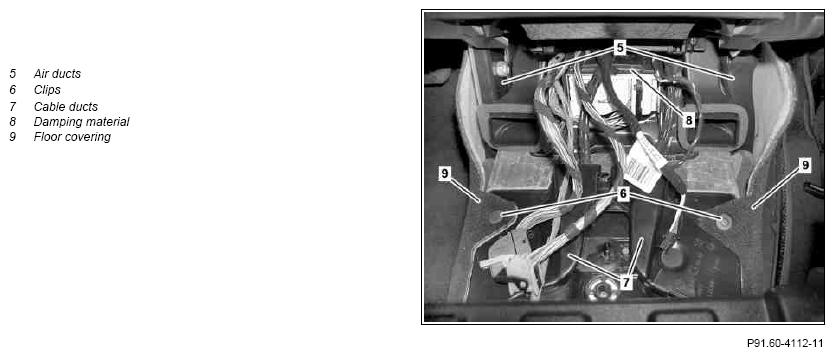

Fig 1: Airbag, Sidebag And Emergency Tensioning Retractor Control Unit Remove/Install Components - Shown On Model 212.0 (1 Of 2)

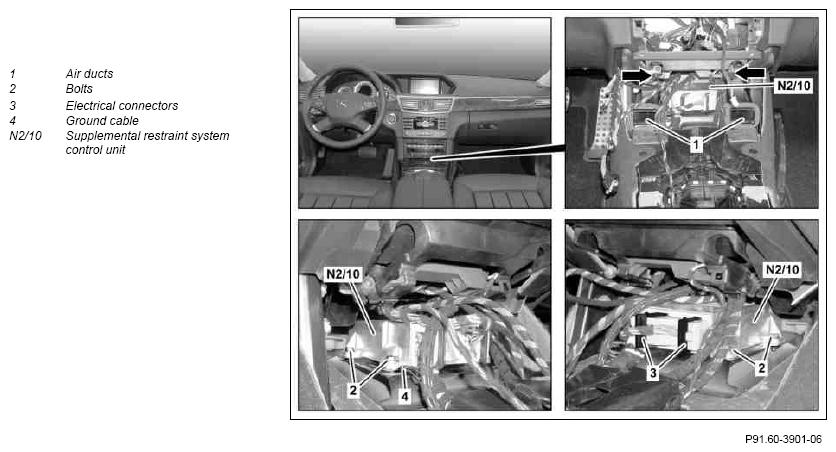

Fig 2: Airbag, Sidebag And Emergency Tensioning Retractor Control Unit Remove/Install Components - Shown On Model 212.0 (2 Of 2)
| Remove/install | |||
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| 1 | Remove center console | MODEL 212 | AR68.20-P-2000EW |
| MODEL 218 | AR68.20-P-2000EL | ||
| 2 | Disconnect ground line of battery | AR54.10-P-0003EW | |
| 3 | Remove clips (6) | ||
| 4 | Guide out floor coverings (9) beneath instrument panel | ||
| 5 | Detach air ducts (5) from air conditioner housing and swivel to one side | ||
| 6 | Remove air ducts (1) from air conditioning housing | ||
| 7 | Unhook cable ducts (7) and move to one side | ||
| 8 | Disconnect electrical connectors (3) | ||
| 9 | Lift dampening (8) above supplemental restraint system control unit (N2/10) at side in order to reach screws/bolts (2) | ||
| 10 | Remove screws/bolts (2) and remove supplemental restraint system control unit (N2/10) | ||
| *BA91.60-P-1009-01M | |||
| 11 | Install in the reverse order | ||
| 12 | Connect Star Diagnosis and perform initial startup of supplemental restraint system control unit (N2/10) | When replacing supplemental restraint system control unit (N2/10). | |
| AD00.00-P-2000-04A |
AIRBAG
| Number | Designation | MODEL 212 | MODEL 218 | |
|---|---|---|---|---|
| BA91.60-P-1009-01M | Bolt/nut, restraint systems control unit to vehicle floor | Nm | 10 | 9 |
