Remove/install thrust arm - AR35.20-P-0113EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212, 218
MODIFICATION NOTES
| 17.12.14 | Screw, stop plate to body | MODEL 212 | BA35.10-P-1003-01N |
| 17.12.14 | Screw, stop plate to body | MODEL 218 | BA35.10-P-1003-01N |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Secure vehicle on vehicle lift | AR00.60-P-0100EWS | |
| 2 | Remove left or right rear wheel | ||
| AP40.10-P-4050EW | |||

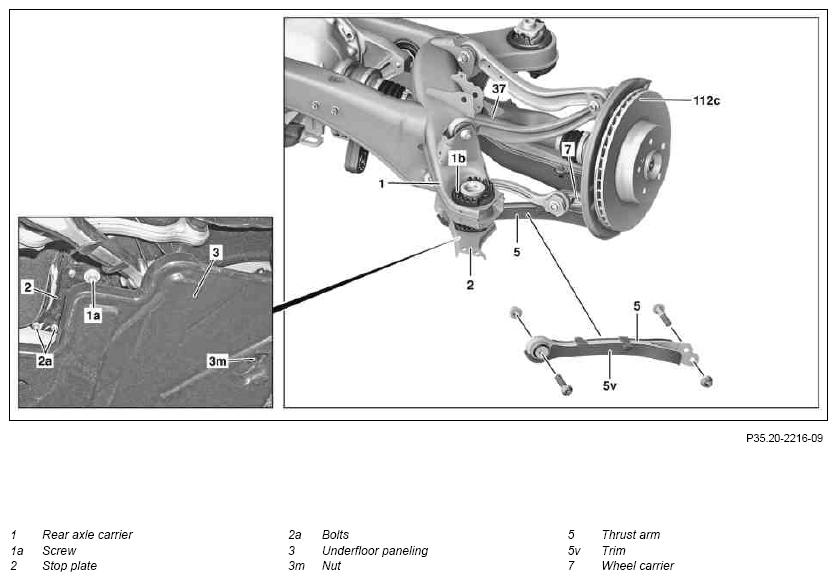

| 3 | Support rear axle carrier (1) using telescopic lifter and transmission plate | Transmission jack Transmission platform |
|
| 4 | Unscrew nut (3m) from left or right underfloor paneling (3) | ||
| 5 | Pull down underfloor paneling (3) in rear area far enough to gain access to the thrust arm mounting (5) on the rear axle carrier (1) | ||
| 6 | Unscrew bolt of left and right rear diagonal strut on bracket for stop plate (2) | MODEL 212.2, 218.9 | |
| *BA61.10-P-1006-01H | |||
| 7 | Unscrew bolts (1a, 2a) and remove stop plate (2) | The threads in the frame floor assembly must be recut and blown out as any adhesive residue in the thread will prevent the bolts (1a, 2a) from achieving the required preload force, even when tightened to the specified torque and specified angle of rotation. If this is not observed, then the faulty bolt preload force will cause bending forces to act on the bolts (1a, 2s), which could ultimately lead to bolt fracture. |
|
| *BA35.10-P-1001-01N | |||
| *BA35.10-P-1003-01N | |||
| 8 | Remove thrust arm (5) from rear axle carrier (1) and wheel carrier (7) | ||
| *BA35.20-P-1001-05G | |||
| *BA35.20-P-1002-05G | |||
| 9 | Remove cover (5v) from thrust arm (5) | When replacing the thrust arm (5). | |
| 10 | Check elastomer bearing in wheel carrier (7) for damage | If damage is present: ↓ Replace elastomer bearing in wheel carrier (7). |
|
| AR35.20-P-0105-01CW | |||
| Figure | |||
| 11 | Install in the reverse order |
REAR AXLE CARRIER
| Number | Designation | MODEL 212 | MODEL 218 | ||
|---|---|---|---|---|---|
| BA35.10-P-1001-01N | Self-locking bolt of front elastomer bearing on rear axle carrier to frame floor assembly | Stage 1 | Nm | 80 | 80 |
| Stage 2 | loosen | loosen | |||
| Stage 3 | Nm | 80 | 80 | ||
| Stage 4 | ∠° | 90 | 90 | ||
REAR AXLE CARRIER
| Number | Designation | MODEL 212 | MODEL 218 | |
|---|---|---|---|---|
| BA35.10-P-1003-01N | Bolt, stop plate to body | Nm | 30 | 30 |
THRUST ARM
| Number | Designation | MODEL 212 | MODEL 218 | |||
|---|---|---|---|---|---|---|
| BA35.20-P-1001-05G | Self-locking nut, thrust arm to rear axle carrier | M12 | Stage 1 | Nm | 50 | 50 |
| Stage 2 | ∠° | 90 | 90 | |||
THRUST ARM
| Number | Designation | MODEL 212 | MODEL 218 | |||
|---|---|---|---|---|---|---|
| BA35.20-P-1002-05G | Self-locking nut, thrust arm to wheel carrier | M12 | Stage 1 | Nm | 50 | 50 |
| Stage 2 | ∠° | 90 | 90 | |||
FRAME FLOOR ASSEMBLY
| Number | Designation | MODEL 212 | MODEL 218 | |
|---|---|---|---|---|
| BA61.10-P-1006-01H | Bolt, rear diagonal strut bracket mount to body | Nm | 60 | 60 |
