Remove/install rubber mounts from thrust arm - AR35.20-P-0105-01CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204, 207, 212, 218, 231

Fig 1: Identifying Extraction And Insertion Tool (204 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Removing

Pull rubber mount (5l) out of wheel carrier (7) using extraction and insertion tool (01).
Remove extraction and insertion tool (01) with rubber mount (5l).

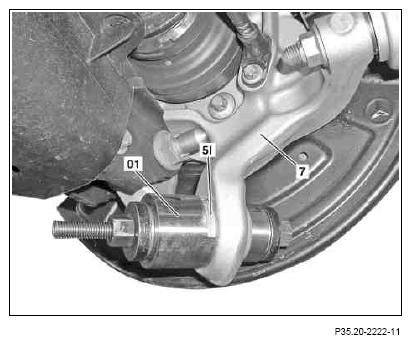

Fig 2: Pulling Rubber Mount Out Of Wheel Carrier Using Extraction And Insertion Tool
Courtesy of MERCEDES-BENZ USA

Install
Position extraction and insertion tool (01) with rubber mount (5l) at wheel carrier (7).
Pull rubber mount (5l) into wheel carrier (7) using extraction and insertion tool (01).
Install far enough to enable the rubber mount (5l) fully covers the cutout (a) in the extraction and insertion tool (01).

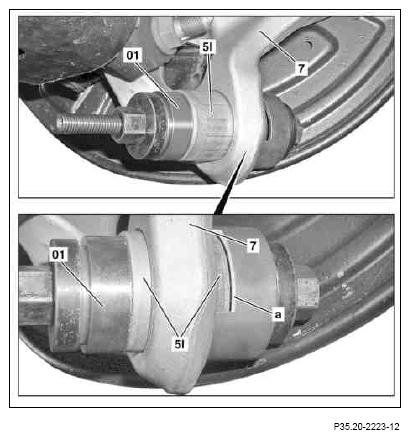

Fig 3: Pulling Rubber Mount Into Wheel Carrier Using Extraction And Insertion Tool
Courtesy of MERCEDES-BENZ USA
