Remove/install rear rubber bushings of rear axle suspension - AR35.10-P-0042EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212, 218
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on AIRmatic | AH32.22-P-1000-02EW | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| 1 | Secure vehicle on vehicle lift | AR00.60-P-0100EWS | |
| 2 | Deflate air springs with STAR DIAGNOSIS | ||
| MODEL 212, 218 with CODE 488 (Steel/air suspension) with CODE 489 (AIRMATIC) The air spring must be installed and filled as per specifications. The air spring can otherwise be damaged and fail later. |
AD00.00-P-2000-04A | ||
| 3 | Switch off ignition | ||
| 4 | Remove rear wheels | ||
| AP40.10-P-4050EW | |||
| 5 | Remove left and right rear diagonal strut | MODEL 212.2, 218.9 | |
| *BA61.10-P-1006-01H | |||
| 6 | Unhook rear muffler (6) from rubber exhaust bushings | ||
| 7.1 | Load steel springs | ||
| MODEL 212.0/1 without CODE 488 (Steel/air suspension) without CODE 489 (AIRMATIC) MODEL 218 without CODE 488 (Steel/air suspension) without CODE 489 (AIRMATIC) |
AR32.20-P-0230EW | ||
| 7.2 | Unclip air springs from spring control arms | MODEL 212.0/1 with CODE 488 (Steel/air suspension) with CODE 489 (AIRMATIC) MODEL 212.2 MODEL 218 with CODE 488 (Steel/air suspension) with CODE 489 (AIRMATIC) |
|

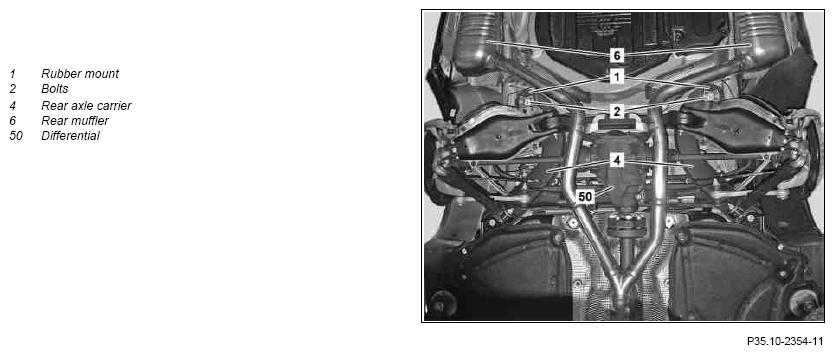

| 8 | Support rear axle carrier (4) at differential (50) using transmission jack and transmission plate and lash down securely | ||
| 9 | Remove bolts (2) from rubber mounts (1) | It is essential that threads in the frame floor assembly are recut and blown out. Adhesive residue in the thread will prevent the bolt from achieving the required preload force, even when tightened to the specified torque and specified angle of rotation. If this is not observed, then the faulty bolt preload force will cause bending forces to act on the bolt, which could ultimately lead to bolt fracture. |
|
| *BA35.10-P-1002-01N | |||
| 10 | Lower rear axle carrier (4) at rear | Do not lower rear axle carrier (4) too far. Lines and components may otherwise be damaged. |
|
| 11 | Press rubber bushing (1) out of rear axle carrier (4) | AR35.10-P-0040-03CW | |
| Lubricant, rubber assembly 1 l | *BR00.45-Z-1010-06A | ||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| 12 | Install in the reverse order |
REAR AXLE CARRIER
| Number | Designation | MODEL 212 | MODEL 218 | ||
|---|---|---|---|---|---|
| BA35.10-P-1002-01N | Self-locking bolt of rear elastomer bearing on rear axle carrier to frame floor assembly | Stage 1 | Nm | 80 | 80 |
| Stage 2 | loosen | loosen | |||
| Stage 3 | Nm | 80 | 80 | ||
| Stage 4 | ∠° | 90 | 90 | ||
FRAME FLOOR ASSEMBLY
| Number | Designation | MODEL 212 | MODEL 218 | |
|---|---|---|---|---|
| BA61.10-P-1006-01H | Bolt, rear diagonal strut bracket mount to body | Nm | 60 | 60 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 l | A 000 989 03 67 |
