Remove/install front rubber bushings of rear axle suspension - AR35.10-P-0041EW
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212, 218
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Remove/install | |||

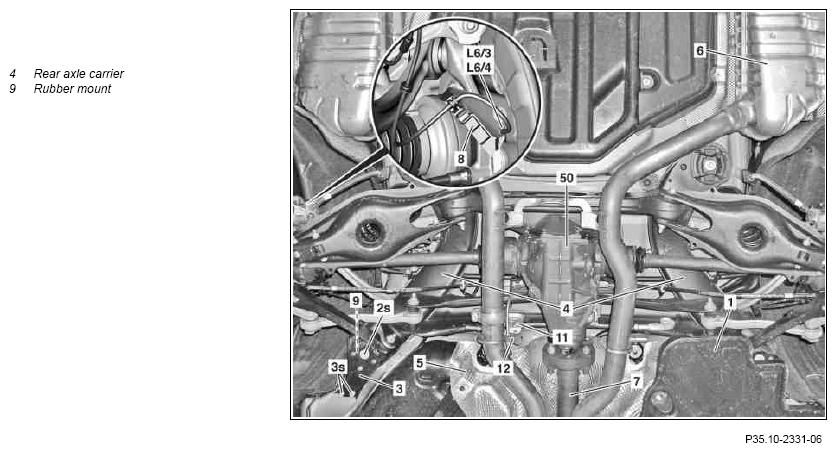

| 1 | Lower rear axle carrier (4) at front | Lower rear axle. | AR35.10-P-0015EW |
| 2 | Press rubber bushing (9) out of rear axle carrier (4) | AR35.10-P-0040-02CW | |
While working on the rear axle care must be taken to ensure that the surface of all aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced. |
|||
| Mobil Vacuoline 137 insertion agent, 0.5 l | *BR00.45-Z-1097-06A | ||
| Lubricant, rubber assembly 1 l | *BR00.45-Z-1010-06A | ||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| 3 | Install in the reverse order |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 l | A 000 989 03 67 |
| BR00.45-Z-1097-06A | Mobil Vacuoline 137 insertion agent, 0.5 l | A 000 989 18 60 09 |
