Remove/install front rubber mount in rear axle mount - AR35.10-P-0040-02CW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 204.### #A up to 937888

MODEL 204.### #G up to 1/5/14

MODEL 204.### #L up to 073446 with code 700 (Technology Local Content China)

MODEL 204.### #L up to 325090 except code 700 (Technology Local Content China)

MODEL 204.### #R up to 11/28/13

MODEL 204.### #V up to 005868

MODEL 207.### #F up to 1/16/14

MODEL 212.### #A up to 958868

MODEL 212.### #L up to 041478

MODEL 212.### #V up to 002862

MODEL 218.### #A up to 116835

MODEL 231.### #F up to 1/12/14

Fig 1: Identifying Extraction And Insertion Tool (204 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Securing Belt (001 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Hydraulic Hose (Complete) (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Hollow Cylinder (652 589 00 33 22)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
BR00.45-Z-1097-06A	Mobil Vacuoline 137 insertion agent, 0.5 l	A 000 989 18 60 09

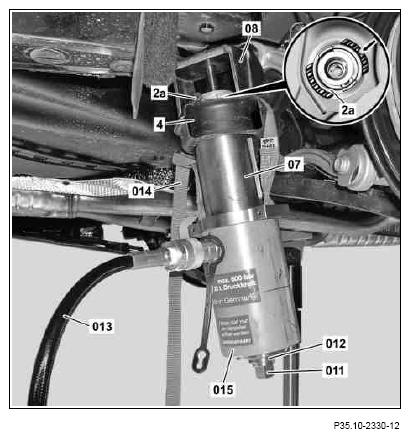

Fig 6: Front Rubber Mount In Rear Axle Mount Remove/Install Components

Courtesy of MERCEDES-BENZ USA

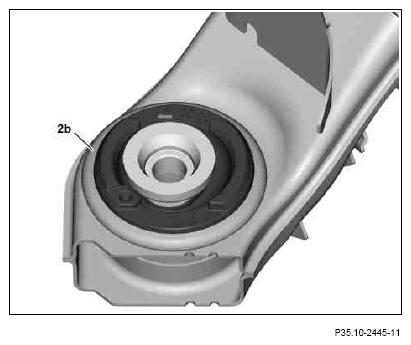

Fig 7: Elastomer Bearing

Courtesy of MERCEDES-BENZ USA

Remove

Always replace the elastomer bearings (2a, 2b) in pairs. The following tools are required from the extraction and insertion tool:

thrust piece (07) 204 589 00 43 07
counterholder (08) 204 589 00 43 08 (with elastomer bearing (2a))
counterholder (016) 231 589 00 43 02 (with elastomer bearing (2b))
spindle (011) 204 589 00 43 11
sleeve (012) 204 589 00 43 12

Fig 8: Identifying Counterholder
Courtesy of MERCEDES-BENZ USA

Mark installation position of respective elastomer bearing (2a, 2b) (arrow) and transfer to new elastomer bearing.
The installation position (direction of travel) is marked on the elastomer bearing (2b).
Attach thrust piece (07), counterholder (08) (with elastomer bearing (2a)), counterholder (016) (with elastomer bearing (2b)), spindle (011) and sleeve (012) with hollow cylinder (015) and retaining belt (014) to elastomer bearing (2a, 2b).
Connect hand pump by means of hydraulic hose (013) on hollow cylinder (015).
Press elastomer bearing (2a, 2b) out of rear axle carrier (4).
The counterholder (016) (with elastomer bearing (2b)) must be positioned such that the marking "L" or "R" on the relevant side points to the outer side of the vehicle.

Mount hollow cylinder (015) such that pressure piston extends upward.

Otherwise the thrust arm can be damaged.

Install
Make a true vertical marking (arrow) as a guide on the elastomer bearing (2a, 2b).
The following tools are required from the extraction and insertion tool:
- thrust piece (09) 204 589 00 43 09 (with elastomer bearing (2a))
- thrust piece 231 589 00 43 01 (with elastomer bearing (2b))
- counterholder (010) 204 589 00 43 10
- spindle (011) 204 589 00 43 11
- sleeve (012) 204 589 00 43 12
- 6.1) With elastomer bearing (2a) Coat new elastomer bearings (2a) with lubricant.
- 6.2) With elastomer bearing (2b) Coat new elastomer bearings (2b) with insertion agent.
Attach thrust piece (09) (with elastomer bearing (2a)), thrust piece (with elastomer bearing (2b)), counterholder (010), spindle (011) and sleeve (012) with hollow cylinder (015) and retaining belt (014) to elastomer bearing (2a, 2b).
Press elastomer bearing (2a, 2b) into rear axle carrier (4).

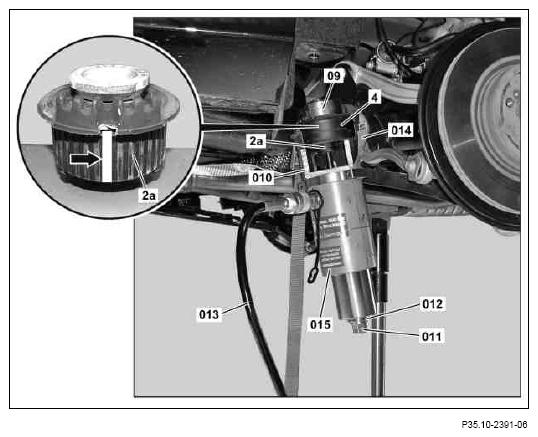

Fig 9: Pressing Elastomer Bearing Into Rear Axle Carrier
Courtesy of MERCEDES-BENZ USA
