Remove/install camber strut - AR35.20-P-0110EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 212, 218

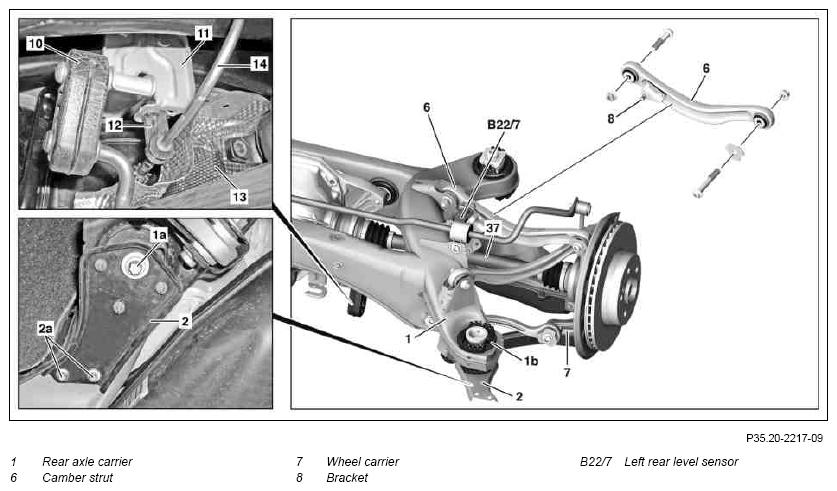

Fig 1: Camber Strut Remove/Install Components
G09976327Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
    NOTES While working on the rear axle care must be taken to ensure that the surfaces of aluminum components do not get any scratches, cracks and notches. Otherwise the service life of the of the parts will be reduced.
    INSTALLATION IMPORTANT Only tighten bolts and nuts of the chassis components when in ready-to-drive condition.
1.1 Remove steel spring Vehicles without code (489) AIRmatic (air suspension with continuous adjustment damping) and without code (488) Steel/air suspension, except model 212.2 AR32.20-P-0230EW
1.2 Remove air spring Vehicles with code (489) AIRmatic (air suspension with continuous adjustment damping) or with code (488) Steel/air suspension, model 212.2 AR32.22-P-1500EW
2 Lower front rear axle carrier (1)   AR35.10-P-0015EW
3 Detach bracket (8) of left rear level sensor's link rod (B22/7) or right rear level sensor's camber strut (6) Vehicles with headlamp range adjustment or with code (489) AIRmatic (air suspension with continuous adjustment damping) or with code (488) Steel/air suspension
4 Remove camber strut (6) from wheel carrier (7) and rear axle carrier (1) TORQUE SPECIFICATION *BA35.20-P-1002-02I
TORQUE SPECIFICATION *BA35.20-P-1001-02I
5 Install in the reverse order
CAMBER STRUT

Number Designation Model 212 Model 218
BA35.20-P-1001-02I Self-locking nut, camber strut to rear axle carrier. M12 Stage 1 Nm 50 50
Stage 2 ∠° 90 90
BA35.20-P-1002-02I Self-locking nut, camber strut to wheel carrier. M12 Stage 1 Nm 50 50
Stage 2 ∠° 90 90
