Replace rear crankshaft radial sealing ring - AR03.20-P-3063EWS

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 272, 273 in MODEL 212

Shown on engine 272.980

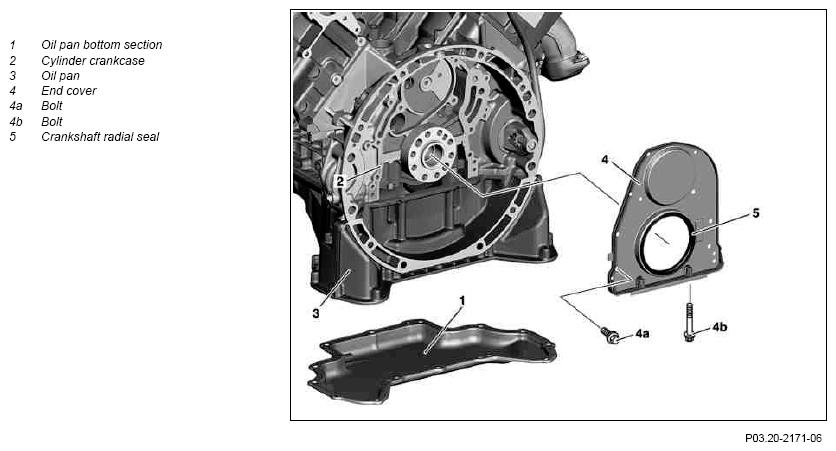

Fig 1: Replacing Rear Crankshaft Radial Sealing Ring

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

10.3.10

Insertion tool for assembly of the crankshaft radial sealing ring - supplemented

Operation step 6

	Remove/install
1	Remove flywheel/drive plate		AR03.30-P-8001EW
2	Remove oil pan bottom section (1)	Engine 272 with rear sump	AR01.45-P-7555EW
	Clean
3	Clean crankcase (2) and oil pan (3) in area of the end cover (4)	Cleaner from package	*BR00.45-Z-1028-04A
4	Remove bolts (4a, 4b)	Engine 272	*BA01.40-P-1004-01G
4	Remove bolts (4a, 4b)	Engine 273	*BA01.40-P-1003-01T
5	Pry off end cover (4) with crankshaft radial sealing ring (5) from crankcase (2)	Do not hit tool for prying off between end cover (4) and crankcase (2); the sealing surface will be damaged. Fit tool for prying off onto side recess clearances of end cover (4).
6	Remove end cover (4)	Always follow instructions in the notes on application of sealant and on correct installation position of the crankshaft radial sealing ring (5) lip; otherwise there can be leaks that can damage the engine and the environment: See "Install rear crankshaft radial sealing ring (5)".
		Engine 272	AR03.20-P-3063-01VA
		Engine 273	AR03.20-P-3063-01SX
		Engine 272	*BA01.40-P-1004-01G
		Engine 273	*BA01.40-P-1003-01T
		Insertion tool (engine 272)	Figure
		Insertion tool (engine 273)	Figure
		Squeeze gun	Figure
		Loctite 5970 sealant	*BR00.45-Z-1013-01A
	Clean
7	Clean sealing surfaces for end cover (4)	Do not use any sharp-edged tools or abrasive paper as this will damage the sealing surfaces.	AR01.00-P-0050-01A
		Loctite 7200	*BR00.45-Z-1038-04A
		Cleaning spray, Loctite 7063 (150ml)	*BR00.45-Z-1046-04A
8	Install in the reverse order
9	Check engine oil level
	Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
10	Carry out an engine test run and check engine for leaks		AS00.00-Z-0005-01A

CRANKCASE, TIMING CASE COVER, END COVER

Number	Designation		Engine 272
BA01.40-P-1004-01G	Bolt, end cover to crankcase or oil pan	Nm	8

CRANKCASE, TIMING CASE COVER, END COVER

Number	Designation		Engine 273
BA01.40-P-1003-01T	Bolt, end cover to crankcase or oil pan	Nm	9

Fig 2: Identifying Insertion Tool (271 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Insertion Tool (273 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Squeeze Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1013-01A	Loctite 5970 sealant	A 003 989 98 20
BR00.45-Z-1028-04A	Cleaner from package	Adolf Wurth GmbH & Co. KG
BR00.45-Z-1038-04A	Loctite 7200	Henkel Loctite Deutschland GmbH
BR00.45-Z-1046-04A	Cleaning spray, Loctite 7063 (150ml)	A 001 986 71 71 10
