Remove/install flywheel/drive plate - AR03.30-P-8001EW

WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.

ENGINES 272, 273 in MODEL 212

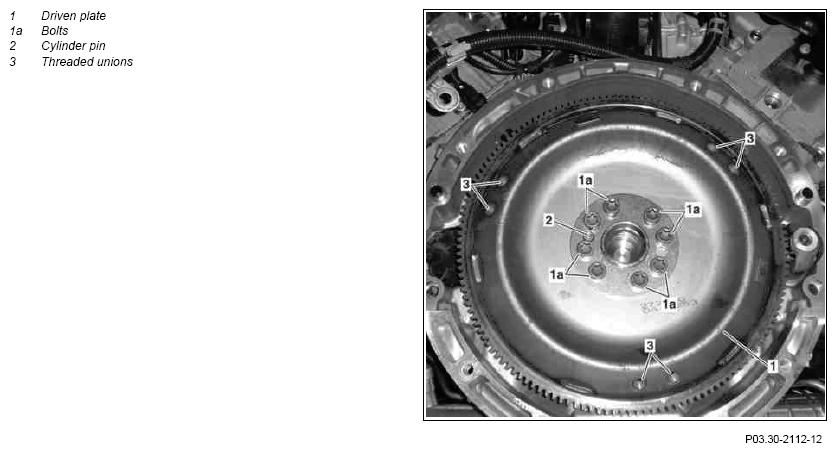

Fig 1: Flywheel/Drive Plate Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove transmission	With transmission 722.9 (except code 722.96)	AR27.10-P-0500EV
		With transmission 722.96	AR27.10-P-0500CWX
		With transmission 711.6	-
		With transmission 716.6	-
2	Remove clutch	With transmission 711.6, 716.6	-
3	Install retaining lock for crankshaft/starter ring gear		AR03.30-P-5000EWS
4	Remove bolts (1a) from drive plate (1) or two-mass flywheel	If no tightening angle wrench is available, bolts can be torqued further by the specified angle in a single operation using a wrench and tommy lever (1a). Do not use a flexi-rod torque wrench for tightening to angle degrees in order to avoid any angle errors.
			*BA03.30-P-1003-01M
5	Detach drive plate (1) or two-mass flywheel from crankshaft flange	The straight pin (2) determines the installation position of the drive plate (1) or of the two-mass flywheel.
	Checking
6	Check threaded union (3) in drive plate (1)	Vehicles with automatic transmission Check for damage and firm seating and replace drive plate (1) as required.
7	Install in the reverse order
8	Carry out first initialization and then sensor rotor adaptation using STAR DIAGNOSIS	After replacing the clutch plate (1) or the two-mass flywheel Menu guidance: Engine control module Adaptations Learning processes

FLYWHEEL, DRIVEN PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number	Designation			Engine 272	Engine 273
BA03.30-P-1003-01M	Bolt, flywheel or two-mass flywheel/drive plate to crankshaft	Stage 1	Nm	45	45
BA03.30-P-1003-01M		Stage 2	∠°	90	90
