Replace front crankshaft radial sealing ring - AR03.20-P-3000CD
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 651 in MODEL 166, 172, 204, 207, 212, 218, 221
| Remove | |||
| 1 | Remove belt pulley/vibration damper | Model 166, 172, 204, 207, 212 (except 212.098/298), 218, 221 | AR03.30-P-1600CD |
| MODEL 212.098/298 | AR03.30-P-1600EH | ||
| 2 | Press crankshaft radial sealing ring (1) out of the end cover (3) using a suitable screwdriver | Do not damage the crankshaft and the sealing surface on end cover (3). The leaktightness of the new crankshaft radial sealing ring (1) will not be achieved anymore otherwise. |
|
| Install | |||

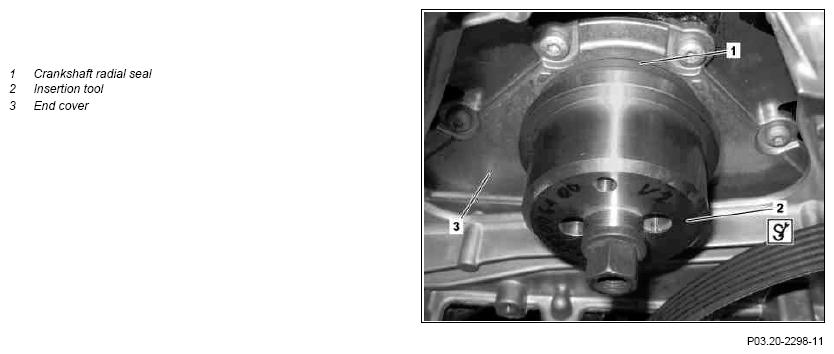

| 3 | Install new crankshaft radial sealing ring (1) with insertion tool (2) | AR03.20-P-3000-01CD | |
| Figure | |||
| 4 | Install belt pulley/vibration damper | Model 166, 172, 204, 207, 212 (except 212.098/298), 218, 221 | AR03.30-P-1600CD |
| MODEL 212.098/298 | AR03.30-P-1600EH | ||
| 5 | Check engine oil level, correct if necessary | The engine oil level must lie between "Min" and "Max". Engine damage can occur otherwise. |
|
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Check for oil leaks with engine running |
